TRANSMISSION
KX125-A3 1976

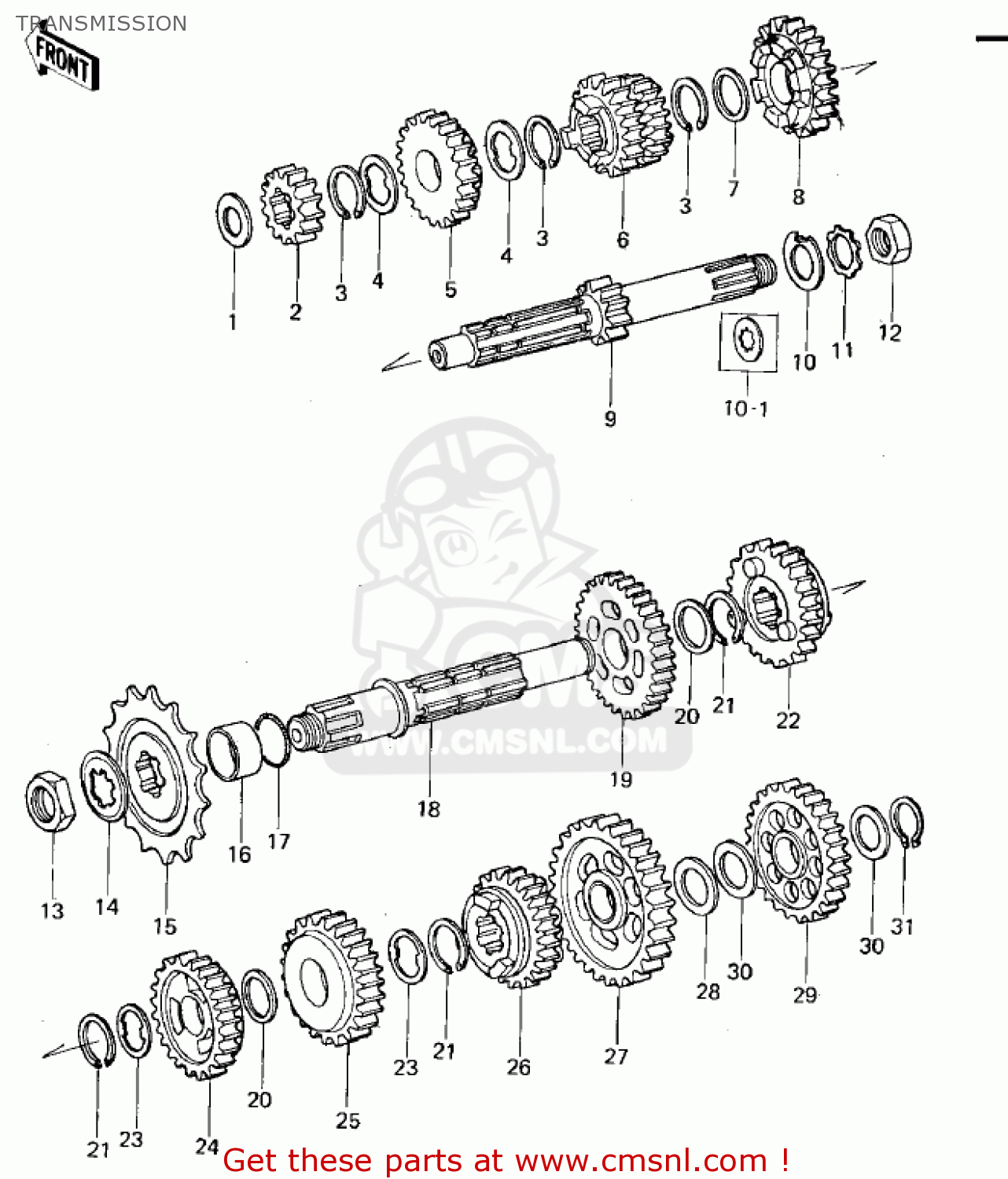

Transmission diagram KX125-A3 1976
TRANSMISSION KX125-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
92022279
ref: 1
O.D. = 25 M/M
WASHER,15.3X25X1
€ 7.00
2
131291063
ref: 2
KX125-A4
2ND GEAR,DRIVE,14T
€ 31.50
2
131291119
ref: 2
KX125-A5~
2ND GEAR,DRIVE SHAFT
€ 54.00
3
92033029
ref: 3
CIRCLIP,18MM
€ 6.50
4
92024059
ref: 4
O.D. = 25 M/M
WASHER,LOCK
€ 3.00
5
131291066
ref: 5
22T
TOP GEAR,DRIVE,22T
€ 52.00
6
131291064
ref: 6
KX125-A4
3R-D&4TH GEAR,DRIVE
€ 52.50
6
131291120
ref: 6
KX125-A5~
3RD & 4TH GEAR,DRIVE
€ 73.50
7
92022252
ref: 7
O.D. = 25.5 M/M
WASHER
€ 4.00
8
131291065
ref: 8
21T
5TH GEAR,DRIVE,21T
€ 39.00
9
131271005
ref: 9
KX125-A4
SHAFT,DRIVE
€ 76.00
9
131271015
ref: 9
KX125-A5~
SHAFT,DRIVE
€ 113.00
10
920221277
ref: 10
KX125-A4
WASHER,16.8X32X1.6
€ 3.50
10-1
920221124
ref: 10-1
KX125-A5~
WASHER,TOOTHED,16.5X3
€ 2.00
11
464H1600
ref: 11
WASHER-TOOTHED,16MM
€ 3.00
12
92016036
ref: 12
NUT,16MM
€ 2.50
13
920151029
ref: 13
NUT,LOCK,18M/M
€ 4.50
14
920221047
ref: 14
WASHER,LOCK
€ 2.50
15
131441007
ref: 15
S.T.D.
ENGINE SPROCKET,14T
€ 19.50
15
13144054
ref: 15
OPTION
SPROCKET-OUTPUT,15T
€ 30.00
16
920271068
ref: 16
COLLAR
€ 7.00
17
92055022
ref: 17
'O' RING
€ 4.00
18
131281021
ref: 18
KX125-A4
SHAFT,OUTPUT
€ 92.50
18
131281021
ref: 18
KX125-A5~
SHAFT,OUTPUT
€ 92.50
19
131291068
ref: 19
KX125-A4
2ND GEAR,OUTPUT,24T
€ 43.00
19
131291122
ref: 19
KX125-A5~
2ND GEAR,OUTPUT SHAFT
€ 43.50
20
92022252
ref: 20
O.D. = 25.5 M/M
WASHER
€ 4.00
21
92033029
ref: 21
CIRCLIP,18MM
€ 6.50
22
131291072
ref: 22
20T
TOP GEAR OUTPUT,20T
€ 64.50
23
92024059
ref: 23
O.D. = 25 M/M
WASHER,LOCK
€ 3.00
24
131291070
ref: 24
KX125-A4
4TH GEAR,OUTPUT,23T
€ 50.00
24
131291124
ref: 24
KX125-A5~
4TH GEAR,OUTPUT SHAFT
€ 55.50
25
131291069
ref: 25
KX125-A4
3RD GEAR,OUTPUT,22T
€ 45.50
25
131291123
ref: 25
KX125-A5~
3RD GEAR,OUTPUT SHAFT
€ 66.50
26
131291071
ref: 26
21T
5TH GEAR,OUTPUT,21T
€ 38.50
27
131291067
ref: 27
KX125-A4
LOW GEAR,OUTPUT,27T
€ 41.00
27
131291121
ref: 27
KX125-A5~
LOW GEAR,OUTPUT SHAFT
€ 43.50
28
920221048
ref: 28
O.D. = 25 M/M
WASHER,PLAIN,15.3X25
€ 3.00
29
590511009
ref: 29
31T
GEAR-SPUR,IDLE,31T
€ 61.00
30
920221045
ref: 30
O.D. = 25 M/M
WASHER,15.3X25X0.5
€ 3.00
31
480J1500
ref: 31
CIRCLIP-TYPE-C,15MM
€ 1.00
