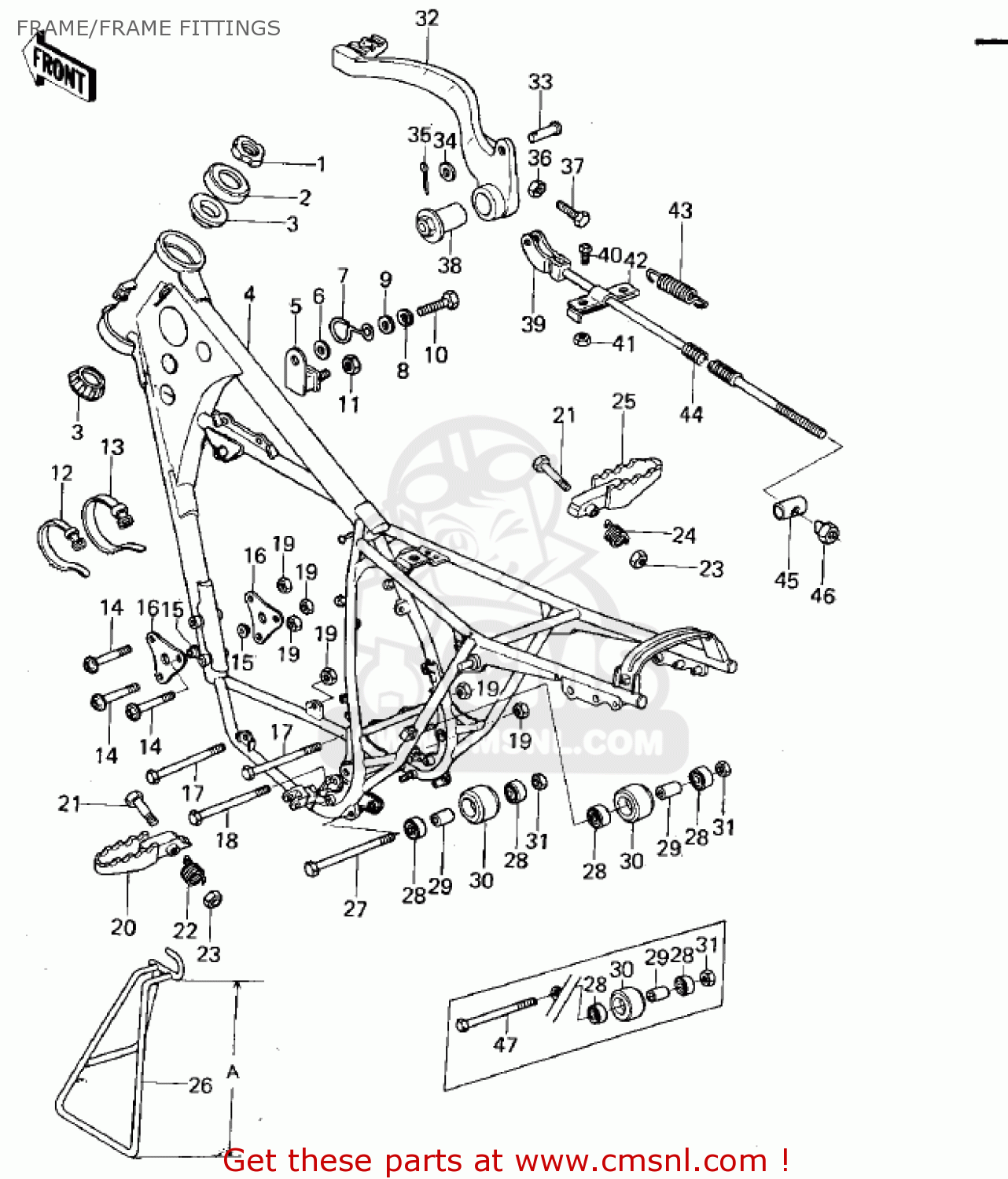

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

920151546
ref: 1

NUT,25MM,T=12

€ 14.50

2

46098015
ref: 2

CAP,STEERING STEM

€ 3.50

3

92047017
ref: 3

CONE,STRNG,STEM

€ 49.50

4

320021034
ref: 4
KX125-A4

FRAME

€ 802.00

4

320021076
ref: 4
KX125-A5~

FRAME

€ 802.00

5

920751060
ref: 5

DAMPER,MUFFLER FITTIN

€ 18.50

6

920221561
ref: 6

WASHER,8.5X20X1.6

€ 2.50

7

920371064
ref: 7

CLAMP,CABLE

€ 5.50

8

461F0800
ref: 8

WASHER-SPRING,8MM

€ 0.50

9

411B0800
ref: 9

WASHER-PLAIN,8MM

€ 0.50

10

115G0825
ref: 10

BOLT-HEX,HEAD,8X25

€ 3.00

11

92019018
ref: 11

NUT,8MM

€ 5.50

12

92072031
ref: 12
KX125-A4

BAND,MIDDLE

€ 3.00

12

92072031
ref: 12
KX125-A5~

BAND,MIDDLE

€ 3.00

13

92072056
ref: 13

BAND,RUBBER

€ 3.00

14

920011410
ref: 14

BOLT,8X69

€ 7.00

15

920271096
ref: 15

COLLAR

€ 2.50

16

320291091
ref: 16
KX125-A4

BRACKET,ENGINE

€ 12.50

16

320291091
ref: 16
KX125-A5~

BRACKET,ENGINE

€ 12.50

17

920021416
ref: 17

BOLT,FLANGED,8X90

€ 2.50

18

920011394
ref: 18

BOLT,HEX HEAD,8X105

€ 3.50

19

920151124
ref: 19

NUT,LOCK,8MM

€ 3.50

20

340281034
ref: 20

STEP,LH

€ 64.50

21

920011028
ref: 21

BOLT,HEX HEAD,10X40

€ 7.50

22

920811254
ref: 22

SPRING,FOOTREST,L.H

€ 3.50

23

92019021
ref: 23

NUT,LOCK,10M/M

€ 2.00

24

920811255
ref: 24

SPRING,FOOTREST,R.H

€ 4.50

25

340281033
ref: 25

STEP,RH

€ 36.00

26

340241012
ref: 26
KX125-A4

STAND,SIDE

€ 37.00

26

340241029
ref: 26
KX125-A5~

STAND,SIDE

€ 29.00

27

920011093
ref: 27

BOLT,8X78.5

€ 3.00

28

920451009
ref: 28

BEARING-BALL,608LLU/2

€ 34.50

29

920271081
ref: 29

COLLAR

€ 6.50

30

921221014
ref: 30

ROLLER

€ 9.50

31

920151124
ref: 31

NUT,LOCK,8MM

€ 3.50

32

430771002
ref: 32
KX125-A4

PEDAL,BRAKE

€ 86.50

32

430771003
ref: 32
KX125-A5~

PEDAL,BRAKE

€ 94.50

33

92043064
ref: 33

PIN-BRAKE ROD FITTING

€ 4.50

34

410B0600
ref: 34

WASHER-PLAIN-SMALL,6M

€ 0.50

35

550D2015
ref: 35

PIN-COTTER,2.0X15

€ 1.00

36

311B0600
ref: 36

NUT,6MM

€ 0.50

37

112G0616
ref: 37
KX125-A4

BOLT UPSET,6X16

€ 1.00

37

112G0620
ref: 37
KX125-A5~

BOLT 6X20

€ 1.00

38

920011080
ref: 38

BOLT,BRAKE PEDAL

€ 27.50

39

430111005
ref: 39
KX125-A4

ROD,BRAKE

€ 28.50

39

430111011
ref: 39
KX125-A5~

ROD,BRAKE

€ 34.50

40

220B0306
ref: 40
KX125-A4

SCREW-PAN-CROS

€ 0.50

41

311B0300
ref: 41
KX125-A4

NUT-HEX

€ 0.50

42

920371032
ref: 42
KX125-A4

CLAMP,RETURN SPRING

€ 3.50

43

920811059
ref: 43

SPRING,RETURN

€ 5.50

44

43012001
ref: 44

SPRING,BRAKE ROD

€ 3.00

45

920431024
ref: 45

PIN,BRAKE

€ 6.00

46

92015042
ref: 46

NUT-BRAKE ROD ADJUST

€ 4.00

47

920011182
ref: 47
KX125-A5~

BOLT,10X45

€ 6.00
