Genuine KX Kawasaki Parts delivered quickly!


MUFFLER

KX125-A3 1976

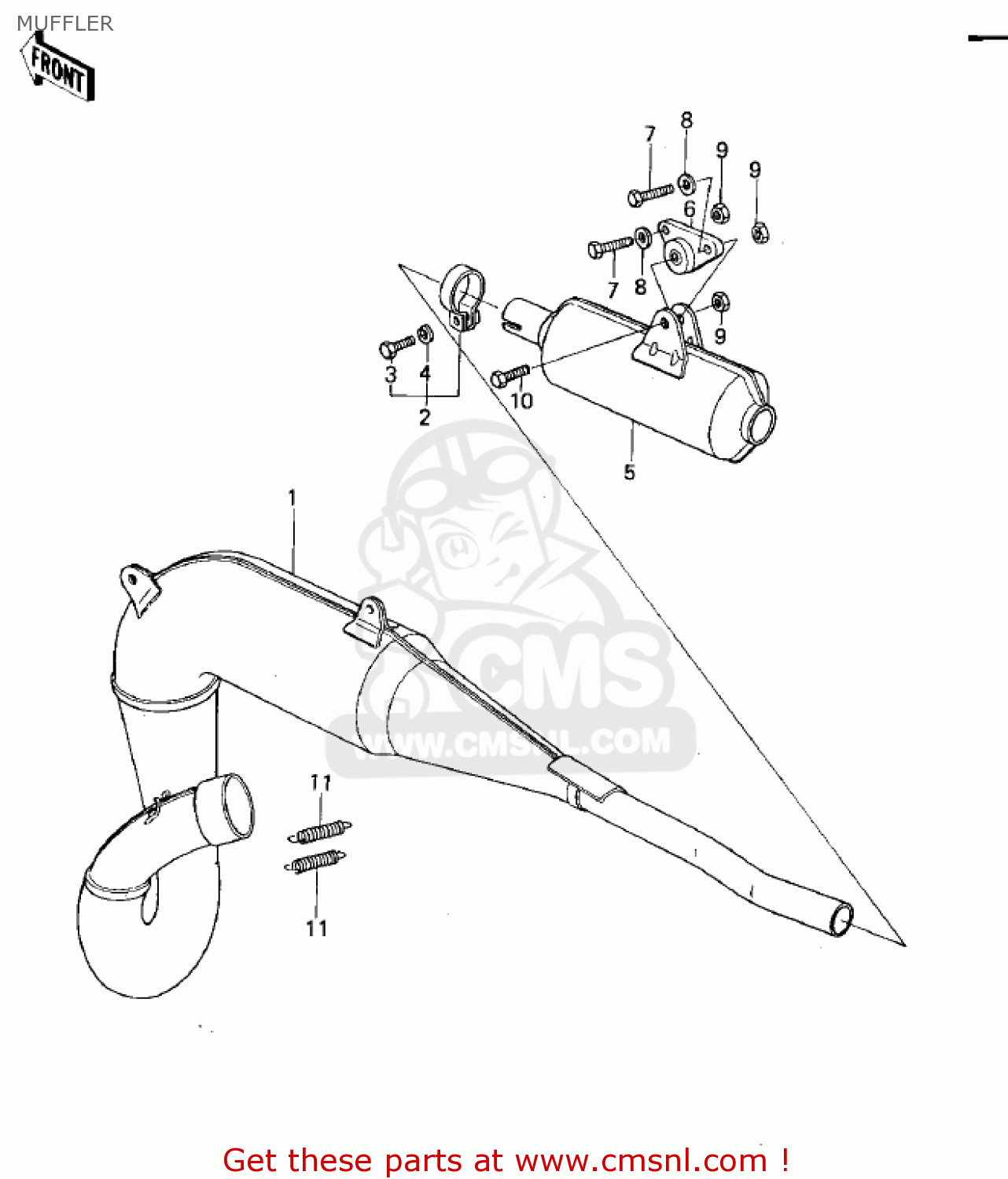

Muffler diagram KX125-A3 1976

MUFFLER KX125-A3 1976
MUFFLER KX125-A3 1976
MUFFLER KX125-A3 1976
prices are in EUR
ref
part #
description
quantity
1
49070100721
ref: 1
KX125-A4
BODY,MUFFLER
€ 226.00
1
490701016
ref: 1
KX125-A5~
BODY,MUFFLER
€ 231.00
2
920371035
ref: 2
CLAMP,MUFFLER FITTING
920371035
€ 5.50
3
112G0620
ref: 3
BOLT 6X20
112G0620
€ 1.00
4
461F0600
ref: 4
WASHER-SPRING,6MM
461F0600
€ 0.50
5
18001101721
ref: 5
MUFFLER ASSY
€ 230.00
6
920751046
ref: 6
DAMPER RUBBER
920751046
€ 20.00
7
110R0635
ref: 7
BOLT 6X35
€ 3.50
8
411B0600
ref: 8
WASHER-PLAIN,6MM
411B0600
€ 0.50
9
92019008
ref: 9
NUT-LOCK,6MM
92019008
€ 3.00
10
112G0625
ref: 10
BOLT-UPSET,6X25
112G0625
€ 4.00
11
18071003
ref: 11
SPRING,MUFFLER CONNEC
18071003
€ 7.50
up
