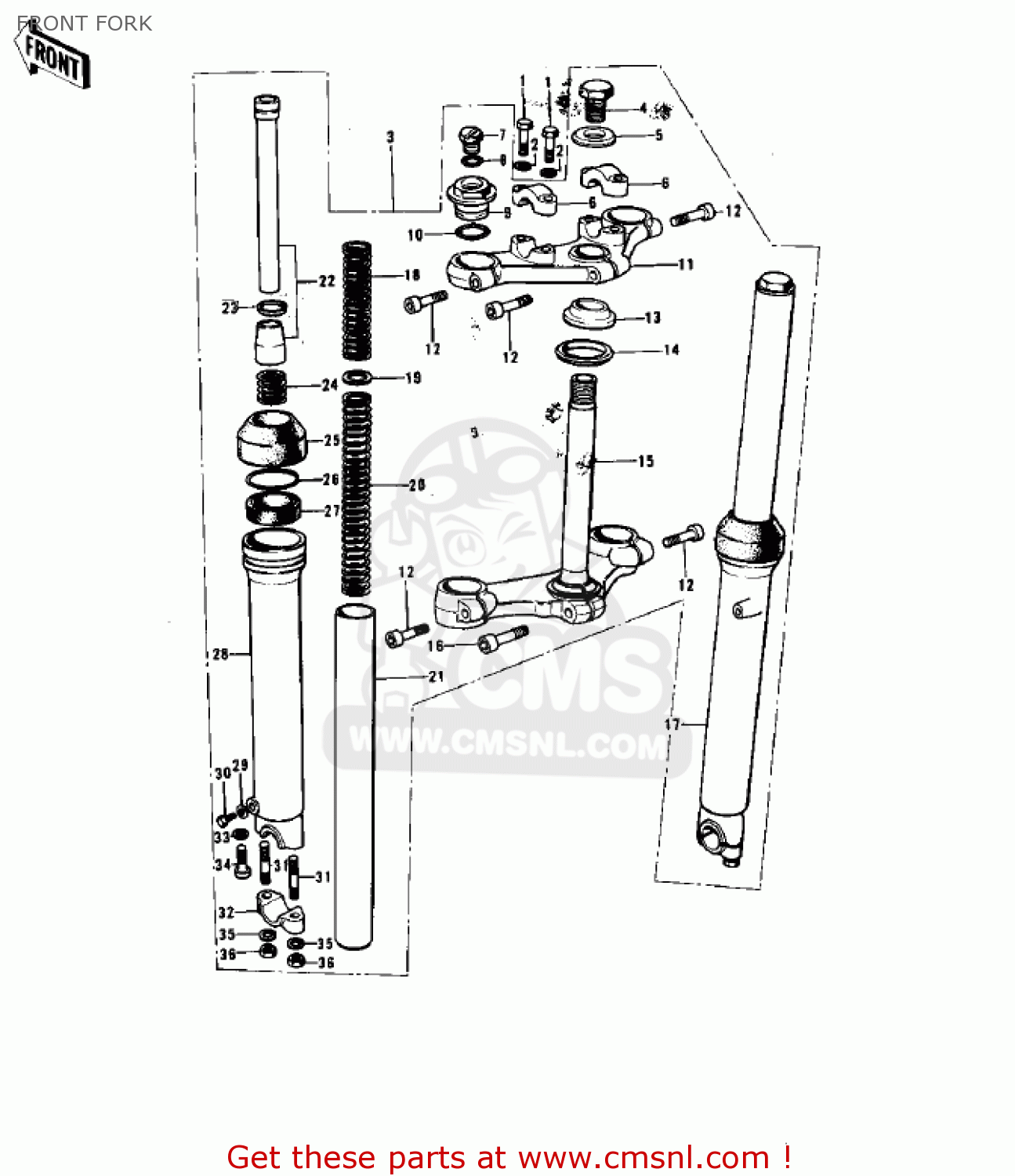

FRONT FORK

ref

part #

description

quantity

1

920011405
ref: 1

BOLT,8X38

€ 10.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

44001142
ref: 3

FRONT FORK ASSY

€ 496.50

4

44041077
ref: 4

BOLT,STEERING STEM

€ 10.50

5

44043056
ref: 5

WASHER,STEERING STEM

€ 9.00

6

46012012
ref: 6

HOLDER,HANDLEBAR

€ 10.00

6

46012014
ref: 6
PITCH 34 M/M

HOLDER-HANDLE

€ 15.50

7

44041069
ref: 7

BOLT,HEX HEAD,12MM

€ 3.00

8

44045048
ref: 8

O RING

€ 1.50

9

44032011
ref: 9

BOLT,FORK TOP

€ 20.50

10

44046021
ref: 10

'O' RING,FORK TOP

€ 1.50

11

44039066
ref: 11

HEAD,STEERING STEM

€ 81.50

11

44039070
ref: 11
PITCH 34 M/M

HEAD,STEERING STEM

€ 73.50

12

44041070
ref: 12

BOLT,HEX HEAD,8X34

€ 3.50

13

92047010
ref: 13

CONE-STERNG BERG LOW

€ 10.00

14

44010027
ref: 14

SEAL,STEERING STEM

€ 7.50

15

44037083
ref: 15

STEM,STEERING

€ 135.50

16

44041073
ref: 16

BOLT,SPECIAL,10X42

€ 6.00

17

440061045
ref: 17

TUBE,R.H FORK OUTER

€ 143.00

18

44026058
ref: 18

SPRING,FORK,SHORT

€ 6.00

19

44029021
ref: 19

SEAT,FORK SPRING

€ 1.00

20

44026057
ref: 20

SPRING,FORK,LONG

€ 17.50

21

44013047
ref: 21

TUBE,FORK INNER

€ 75.50

22

44022023
ref: 22

CYLINDER,FORK

€ 26.00

23

44025002
ref: 23

RING

€ 3.00

24

44026054
ref: 24

SPRING,FORK CYLINDER

€ 3.00

25

44010026
ref: 25

DUST SHIELD,FORK

€ 9.50

26

44044020
ref: 26

CIRCLIP,45MM

€ 9.50

27

44009018
ref: 27

OIL SEAL,FORK

€ 20.50

28

440051045
ref: 28

TUBE,L.H FORK OUTER

€ 143.00

29

112B0608
ref: 29

BOLT-HEX,HEAD,6X8

€ 0.50

30

44045047
ref: 30

GASKET,DRAIN PLUG (NAS)

€ 6.00

31

920041009
ref: 31

STUD, 8X35

€ 4.00

32

44063009
ref: 32

HOLDER-FRONT AXLE

€ 21.00

33

44045051
ref: 33

GASKET,FORK CYLINDER (NAS)

€ 4.00

34

44041078
ref: 34

BOLT, FORK CYLINDER

€ 6.50

35

461F0800
ref: 35

WASHER-SPRING,8MM

€ 0.50

36

312G0800
ref: 36

NUT,8MM

€ 2.00
