CRANKSHAFT/PISTON/ROTARY VALVE
KX125-A3 1976

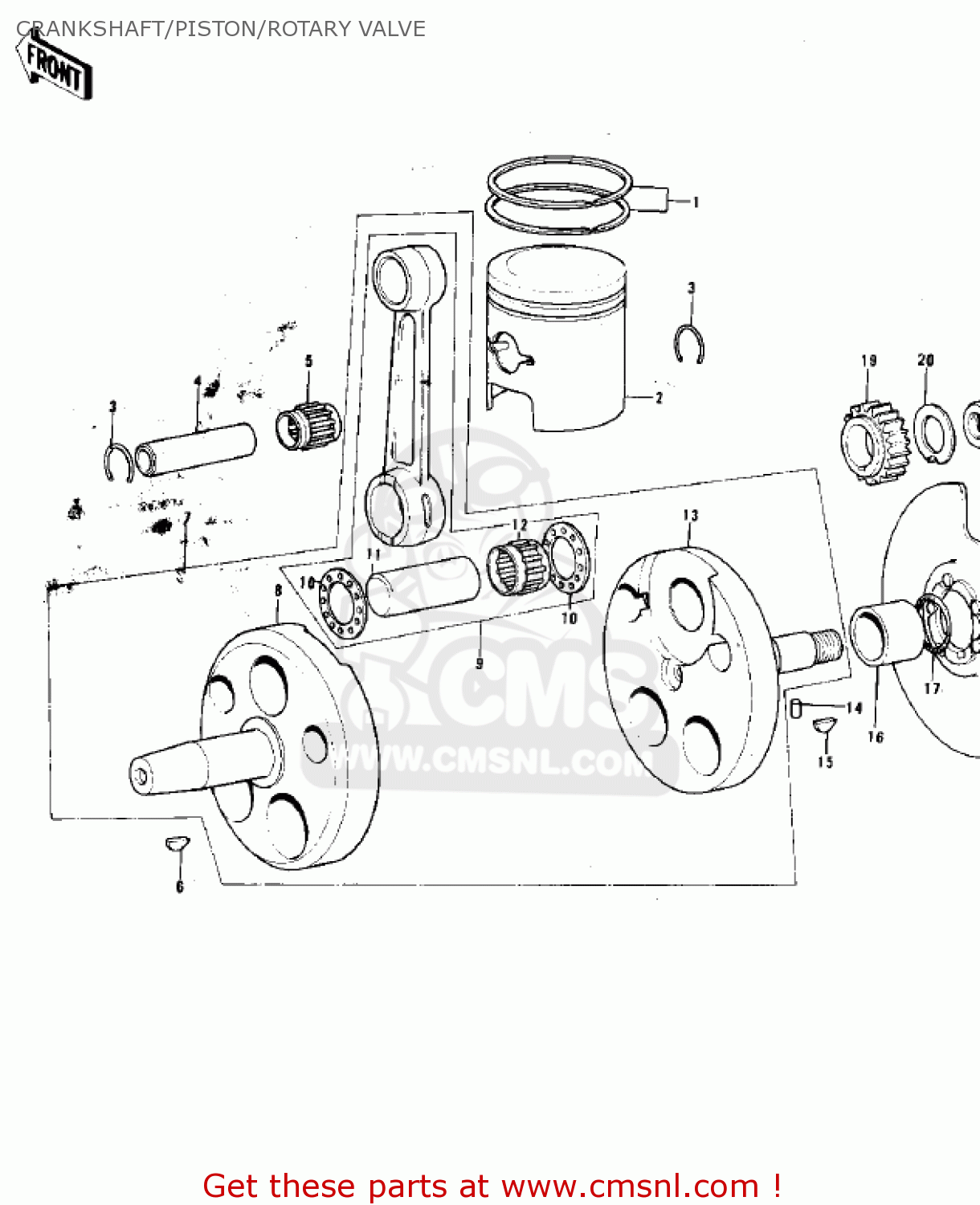

Crankshaft/piston/rotary valve diagram KX125-A3 1976
CRANKSHAFT/PISTON/ROTARY VALVE KX125-A3 1976
×
prices are in EUR
ref
part #
description
quantity
1
13008052
ref: 1
RING SET,STD
€ 72.00
2
13001068
ref: 2
PISTON,STD
€ 62.00
3
92036003
ref: 3
CIRCLIP-PISTON PIN
€ 0.50
4
130021002
ref: 4
PIN-PISTON
€ 13.00
5
13033035
ref: 5
BEARING-NEEDLE,UR1412
€ 16.00
6
92038001
ref: 6
WOODRUFF KEY
€ 3.00
7
13036047
ref: 7
CRANK-CONROD ASSY
€ 324.50
8
13037062
ref: 8
CRANKSHAFT,L.H
€ 106.50
9
13044036
ref: 9
CONNECTING ROD SET
€ 112.50
10
92025005
ref: 10
SHIM,20X34.5X1.0
€ 4.50
11
13035033
ref: 11
PIN-CRANK
€ 17.00
12
13034041
ref: 12
KT202715FGS
BRG,N,KT202715EGS01B
€ 19.00
13
130371084
ref: 13
CRANKSHAFT,R.H
€ 119.50
14
610A0410
ref: 14
ROLLER,4X10
€ 2.50
15
92038003
ref: 15
WOODRUFF KEY-PRY PINI
€ 1.50
16
92027220
ref: 16
COLLAR,R.H CRANKSHFT
€ 28.50
17
670B2016
ref: 17
O RING,16MM
€ 1.00
18
12001024
ref: 18
VALVE,ROTARY,DISC
€ 115.50
19
130971040
ref: 19
22T
GEAR-PRIMARY SPUR,22T
€ 86.00
20
92024003
ref: 20
WASHER,CLAW,12.5X25X0
€ 2.50
21
92015006
ref: 21
NUT,12MM
€ 3.50
