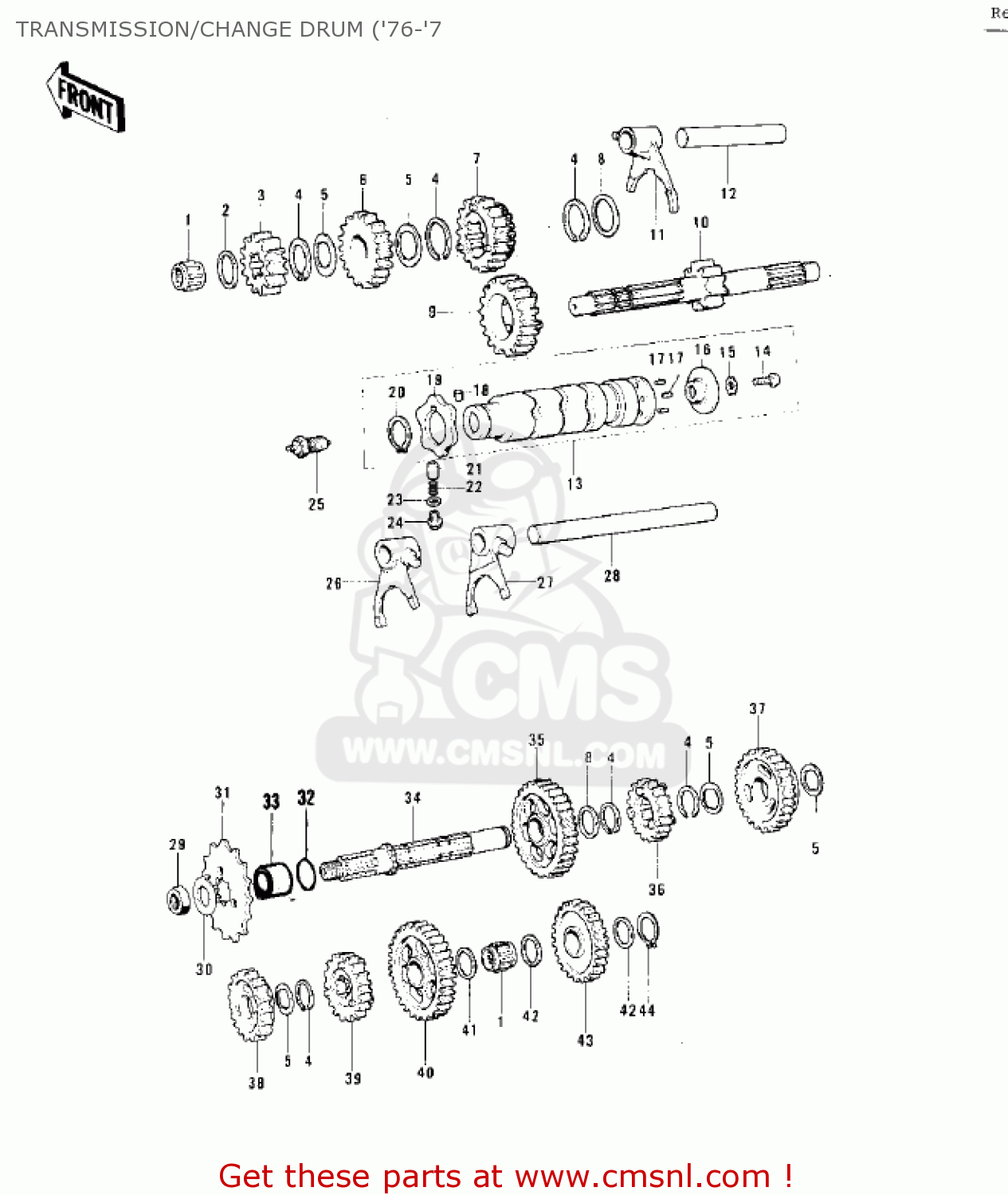

TRANSMISSION/CHANGE DRUM ('76-'7

ref

part #

description

quantity

1

92046037
ref: 1

BEARING-NEEDLE,7E-HK1

€ 17.00

2

92022272
ref: 2
I.D=14.3?,1.OT

WASHER,PLAIN

€ 6.00

3

13130036
ref: 3
13T

2ND GEAR,DRIVE SHAFT

€ 25.00

4

92033028
ref: 4

CIRCLIP

€ 6.00

5

92024055
ref: 5

WASHER,TOOTHED,18.5X2

€ 2.50

6

131291019
ref: 6

TOP GEAR,DRIVE SHAFT

€ 41.00

6

131291021
ref: 6
KE125-A4

GEAR,INPUT TOP,20T

€ 57.00

6

131291021
ref: 6
KE125-A5~

GEAR,INPUT TOP,20T

€ 57.00

7

131291008
ref: 7

3RD & 4TH GEAR,DRV SH

€ 23.50

7

131291010
ref: 7
KE125-A4

GEAR,INPUT 3RD&4TH,16

€ 86.50

7

131291010
ref: 7
KE125-A5~

GEAR,INPUT 3RD&4TH,16

€ 86.50

8

92022271
ref: 8
I.D.=18.3

WASHER,PLAIN

€ 3.50

9

131291016
ref: 9
19T

5TH GEAR,DRIVE SHAFT

€ 46.50

9

131291018
ref: 9
19T, KE125-A4

5TH GEAR, DRIVE SHAFT

€ 50.50

9

131291018
ref: 9
19T, KE125-A5~

5TH GEAR, DRIVE SHAFT

€ 50.50

10

13127045
ref: 10
10T

SHAFT,DRIVE,10T

€ 97.00

11

13140060
ref: 11

FORK-SHIFT,5TH&TOP

€ 49.00

12

13209014
ref: 12
L=80M/M

ROD-SHIFT,10X80

€ 8.50

13

13239018
ref: 13

DRUM ASSY,GEAR SHIFT

€ 100.50

13

13239018
ref: 13
KE125-A4~

DRUM ASSY,GEAR SHIFT

€ 100.50

14

220B0614
ref: 14

SCREW-PAN HEAD,6X14

€ 2.00

15

464H0600
ref: 15

WASHER-LOCK,6MM

€ 0.50

16

13142017
ref: 16

HOLDER,CHANGE DRUM PI

€ 8.00

16

13142017
ref: 16
KE125-A4~

HOLDER,CHANGE DRUM PI

€ 8.00

17

92042030
ref: 17

PIN,GEAR CHNGE DRUM

€ 2.50

18

610A0406
ref: 18

ROLLER,4X6

€ 2.50

19

131451058
ref: 19

CAM-CHANGE DRUM

€ 15.00

20

480J3000
ref: 20

CIRCLIP-TYPE-C,30MM

€ 3.50

21

92043076
ref: 21

PIN-NEUTRAL PISTON

€ 8.00

22

92081112
ref: 22

SPRING

€ 4.00

22

92081112
ref: 22
KE125-A4~

SPRING

€ 4.00

23

92065090
ref: 23

GASKET (NAS)

€ 2.00

24

92001131
ref: 24

BOLT,10MM

€ 14.00

25

13151019
ref: 25

SWITCH-COMP,NEUTRAL

€ 15.00

26

13140059
ref: 26

FORK-SHIFT,2ND&3RD

€ 61.50

27

13140058
ref: 27

FORK,SELECTR,LOW-4TH

€ 52.50

28

490471060
ref: 28
L=102M/M

ROD-SHIFT,10X102

€ 12.00

29

315B1400
ref: 29

NUT,14MM

€ 1.00

30

92024052
ref: 30

WASHER,CLAW,14.3X32X1

€ 3.50

31

131441058
ref: 31
S.T.D.

SPROCKET-OUTPUT,14T

€ 20.00

31

131441058
ref: 31
S.T.D. KE125-A4~

SPROCKET-OUTPUT,14T

€ 20.00

31

13144053
ref: 31
OPTION

SPROCKET-OUTPUT,13T

€ 30.00

31

13144054
ref: 31
OPTION

SPROCKET-OUTPUT,15T

€ 30.00

32

92055022
ref: 32

'O' RING

€ 4.00

33

920271077
ref: 33

COLLAR,20X25X12.5

€ 14.00

34

13128040
ref: 34

SHAFT-TRANSMISSION OU

€ 108.50

35

13131043
ref: 35
22T

2ND GEAR,OUTPUT SHFT

€ 47.00

36

13137029
ref: 36
15T

TOP GEAR,OUTPUT SHFT

€ 82.00

36

13137043
ref: 36
16T, KE125-A4

GEAR,OUTPUT TOP,16T

€ 54.50

37

131291011
ref: 37
20T

GEAR,OUTPUT 3RD,20T

€ 26.00

37

131291011
ref: 37
20T, KE125-A5~

GEAR,OUTPUT 3RD,20T

€ 26.00

38

131291013
ref: 38
22T

4TH GEAR,OUTPUT SHAFT

€ 49.00

38

131291015
ref: 38
23T, KE125-A4

GEAR,OUTPUT 4TH,23T

€ 72.50

38

131291015
ref: 38
23T, KE125-A5~

GEAR,OUTPUT 4TH,23T

€ 72.50

39

13248001
ref: 39
16T

5TH GEAR,OUTPUT SHFT

€ 44.50

39

13248003
ref: 39
17T, KE125-A4~

5TH GEAR, OUTPUT

€ 42.00

40

13129050
ref: 40
26T

GEAR,OUTPUT LOW,26T

€ 38.00

41

92022273
ref: 41
I.D=14.3

WASHER,14.3X24X1

€ 6.00

42

92022267
ref: 42
I.D.=14?,0.5T

WASHER,14X24X0.5

€ 3.00

43

13073011
ref: 43
27T

GEAR-SPUR,IDLE,27T

€ 46.50

44

480J1300
ref: 44

CIRCLIP-TYPE-C,13MM

€ 2.50

all assemblies
