METERS/IGNITION SWITCH ('74-'75)
KS125 1974 USA CANADA

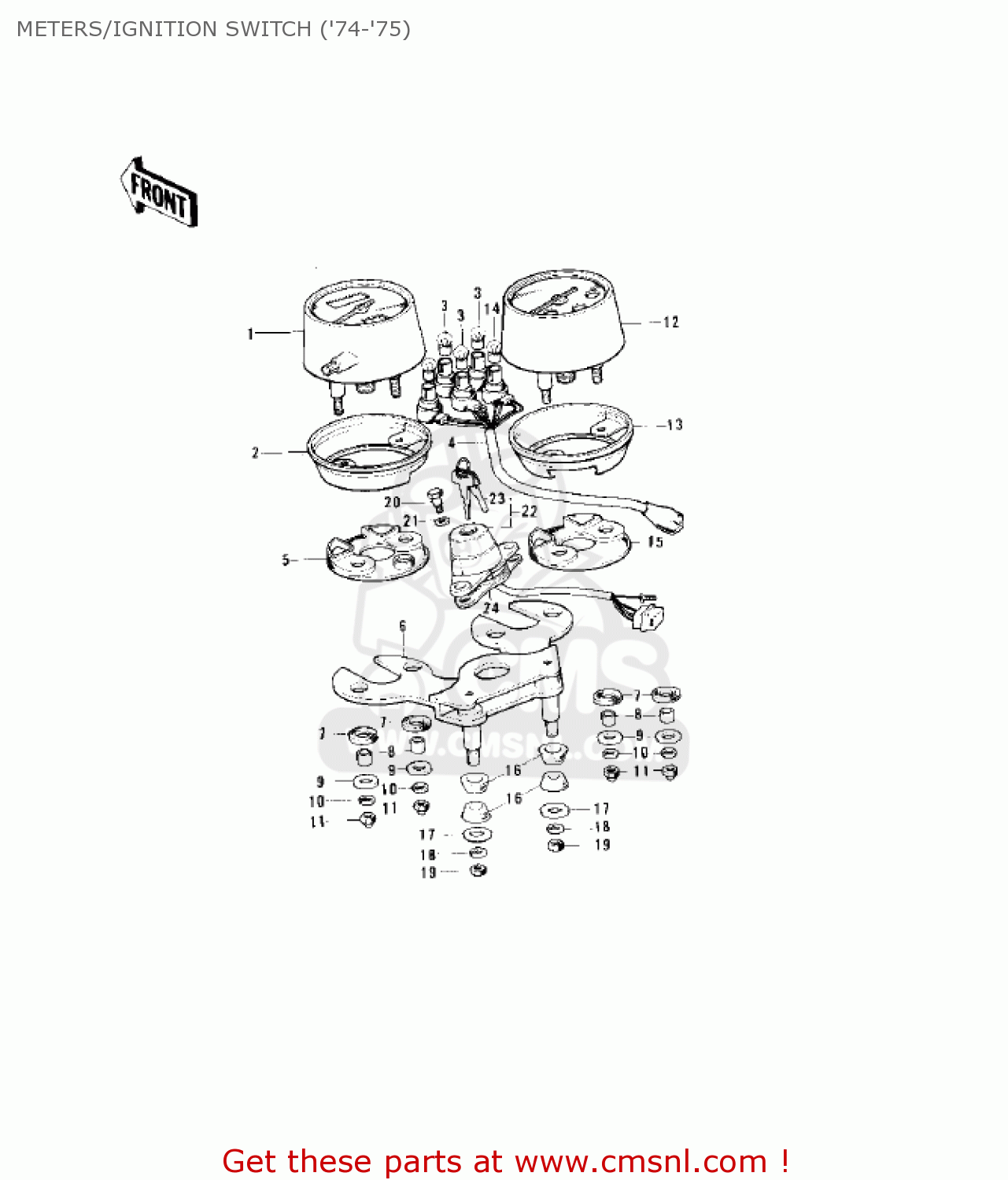

Meters/ignition switch ('74-'75) diagram KS125 1974 USA CANADA
METERS/IGNITION SWITCH ('74-'75) KS125 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
25005110
ref: 1
SPEEDOMETER ASSY,MPH
€ 165.00
1
25005112
ref: 1
SPEEDOMETER ASSY,KPH
€ 186.00
2
25012017
ref: 2
COVER,SPEEDOMETER
€ 23.00
3
92069024
ref: 3
BULB 6V 1.5W
€ 3.00
4
25011038
ref: 4
SOCKET,SPEEDOMETER
€ 29.00
5
25019018
ref: 5
DAMPER,SPEEDOMETER
€ 7.00
6
25008034
ref: 6
BRACKET-METER
€ 29.00
7
25019019
ref: 7
DAMPER,METER
€ 4.50
8
25021004
ref: 8
COLLAR,5.5X7.5X12.2
€ 3.00
9
92022285
ref: 9
WASHER,5.2X18X1.2
€ 4.50
10
461F0500
ref: 10
WASHER-SPRING,5MM
€ 0.50
11
322N0500
ref: 11
NUT-CAP,5MM
€ 2.00
12
25015027
ref: 12
TACHOMETER ASSY
€ 146.50
13
25012018
ref: 13
COVER,TACHOMETER
€ 22.50
14
92069053
ref: 14
BULB 6V 3W
€ 3.00
15
25019020
ref: 15
DAMPER RUBBER,METER
€ 5.50
16
92075248
ref: 16
DAMPER,METER BRACKET
€ 3.50
17
92022237
ref: 17
WASHER-PLAIN
€ 2.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
311B0600
ref: 19
NUT,6MM
€ 0.50
20
92007026
ref: 20
BOLT-HEX HEAD,6MM
€ 6.00
21
410B0800
ref: 21
WASHER-PLAIN-SMALL,8M
€ 0.50
22
27005059
ref: 22
IGNITION SWITCH ASSEMBLY
€ 118.50
22
27005080
ref: 22
(FOR CANADA ONLY)
IGNITION SWITCH ASSEMBLY
€ 113.50
23
2700805431
ref: 23
KEY SET,#431
€ 14.00
23
2700805432
ref: 23
KEY SET,#432
€ 9.50
23
2700805433
ref: 23
KEY SET,#433
€ 9.50
23
2700805434
ref: 23
KEY SET,#434
€ 14.00
23
2700805435
ref: 23
KEY SET,#435
€ 14.00
23
2700805436
ref: 23
KEY SET,#436
€ 14.00
23
2700805437
ref: 23
KEY SET,#437
€ 9.50
23
2700805438
ref: 23
KEY SET,#438
€ 14.00
23
2700805439
ref: 23
KEY SET,#439
€ 9.00
23
2700805440
ref: 23
KEY SET,#440
€ 9.50
23
270081024
ref: 23
KEY-LOCK,BLANK
€ 14.00
23
270081025
ref: 23
KEY-LOCK,BLANK
€ 14.00
23
92075077
ref: 23
DAMPER RUBBER
€ 7.00
