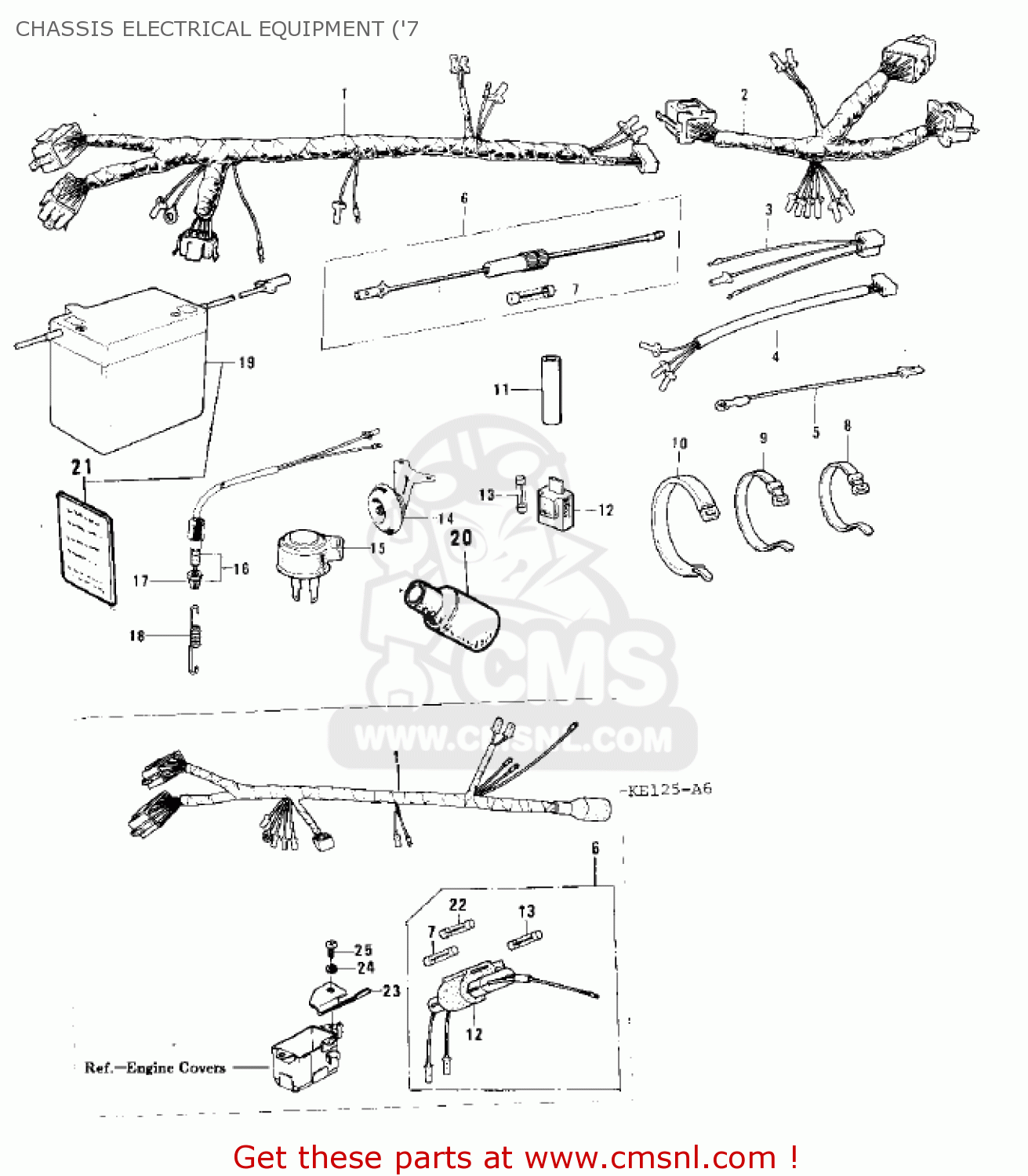

CHASSIS ELECTRICAL EQUIPMENT ('7

ref

part #

description

quantity

1

26001108
ref: 1

WIRING HARNESS,MAIN

€ 197.00

1

260011070
ref: 1
KE125-A6

WIRING HARNESS,MAIN

€ 85.50

2

26002045
ref: 2

HEADLAMP WIRING HARNESS

€ 242.00

3

26011072
ref: 3
N.R. FOR KE125-A6

WIRE,RECTIFIER LEAD

€ 7.00

4

26002046
ref: 4

HARNESS,TAIL LAMP

€ 12.50

5

26011093
ref: 5

WIRE-LEAD

€ 6.00

6

26004025
ref: 6

FUSE-ASSY

€ 12.50

6

260041010
ref: 6
KE125-A6

FUSE-ASSY

€ 19.50

7

26006007
ref: 7

FUSE 15A

€ 2.50

7

260061007
ref: 7
KE125-A6

FUSE, 10A-R

€ 3.00

8

92072030
ref: 8

BAND,SHORT

€ 3.00

9

92072032
ref: 9

BAND,LONG

€ 3.00

10

92072068
ref: 10

BAND,WIRING HARNESS

€ 2.50

11

92075250
ref: 11

DAMPER RUBBER,HARNES

€ 1.50

12

26016004
ref: 12

HOLDER,SPARE FUSE

€ 7.50

12

920751044
ref: 12
KE125-A6

DAMPER,FUSE

€ 6.00

13

26006007
ref: 13

FUSE 15A

€ 2.50

13

260061003
ref: 13
KE125-A6

FUSE,15A,L=30M/M

€ 3.00

14

27003044
ref: 14

HORN

€ 113.50

15

27002013
ref: 15

RELAY-ASSY,TURN SIGNA

€ 27.00

16

27010025
ref: 16

SWITCH,BRAKE LAMP

€ 18.50

17

27037001
ref: 17

NUT,BRAKE LAMP SWICH

€ 18.50

18

27011006
ref: 18

SPRING-BRAKE LAMP SW

€ 3.50

19

K26012034
ref: 19
6V 6AH

BATTERY,YUA,6N6-1D-2

€ 78.00

19

K26012034
ref: 19
6V 6AH KE125-A4

BATTERY,YUA,6N6-1D-2

€ 78.00

20

26009008
ref: 20

COVER,WIRING HARNESS

€ 3.50

21

560401036
ref: 21

WARNING, BATTERY

€ 2.00

22

260061002
ref: 22

FUSE,10A,L=30M/M

€ 3.00

23

110341368
ref: 23

FUSE BRACKET

€ 2.50

24

461F0500
ref: 24

WASHER-SPRING,5MM

€ 0.50

25

220B0510
ref: 25

SCREW-PAN-CROS,5X10

€ 0.50
