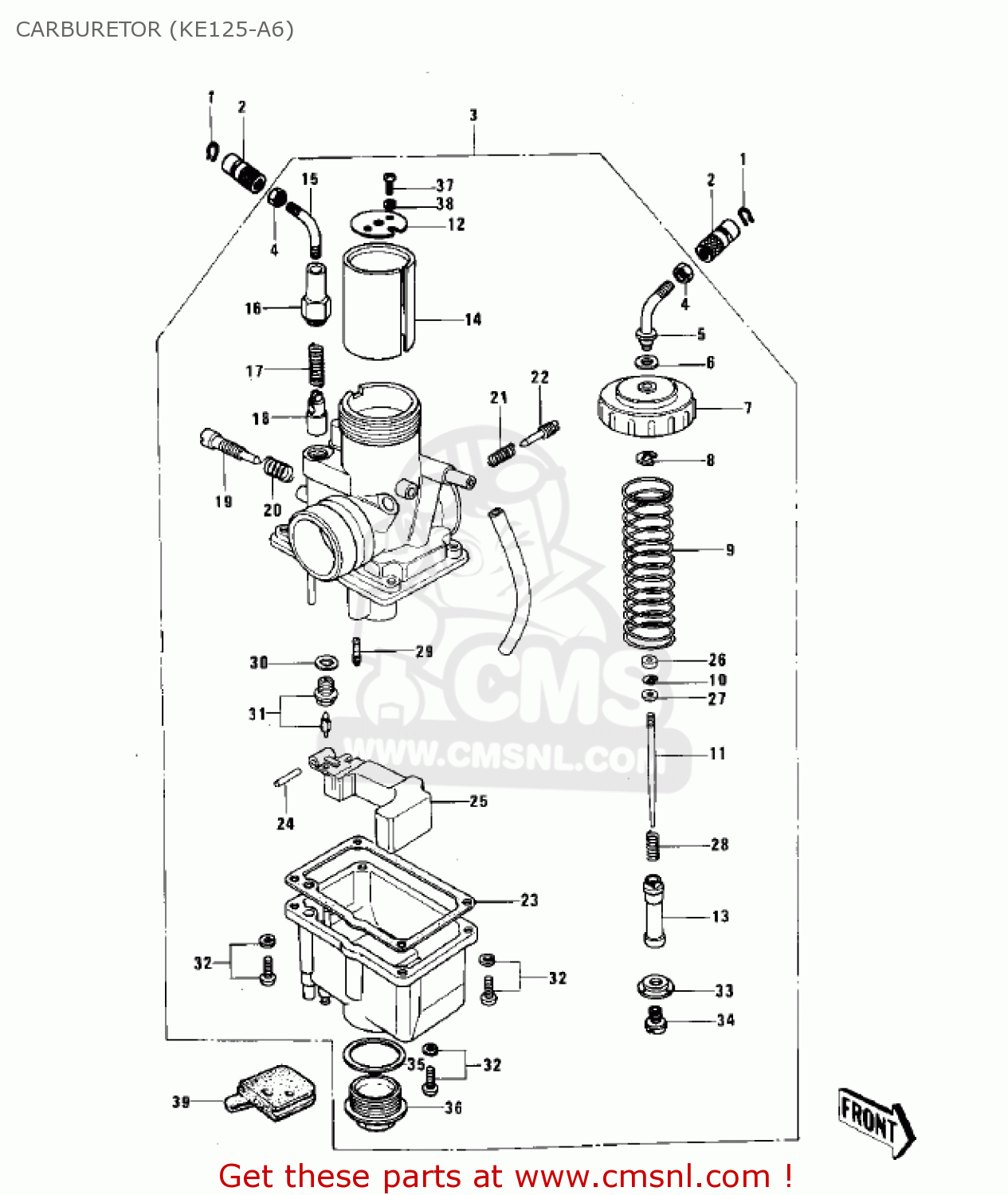

CARBURETOR (KE125-A6)

ref

part #

description

quantity

1

92036018
ref: 1

CIRCLIP

€ 2.50

2

16002007
ref: 2

ADJUSTER-CABLE,THROTT

€ 7.50

3

160011038
ref: 3

CARBURETOR ASSEMBLY

€ 167.50

4

16003004
ref: 4

NUT-CABLE ADJUST LOCK

€ 4.50

5

16077011
ref: 5

GUIDE,CABLE

€ 13.50

6

16029007
ref: 6

GASKET,CABLE GUIDE (NAS)

€ 5.50

7

16004024
ref: 7

CAP,MIXING CHAMBER

€ 13.50

8

16008011
ref: 8

CLAMP,CABLE GUIDE

€ 4.50

9

16006024
ref: 9

SPRING,THROTTLE VALV

€ 7.50

10

16008010
ref: 10

CLAMP,E-TYPE

€ 5.00

11

160091019
ref: 11

JET,NEEDLE,SEL17-3

€ 11.50

12

131691123
ref: 12

THROTTLE VALVE PLATE

€ 5.50

13

160171025
ref: 13

JET,NEEDLE,#A0-0

€ 18.00

14

160251018
ref: 14

THROTTLE VALVE,CA2.5

€ 49.00

15

16077010
ref: 15

GUIDE,CABLE

€ 13.00

16

16012017
ref: 16

CAP-STARTER PLUNGER

€ 11.50

17

16013003
ref: 17

SPRING-STARTER PLUNG

€ 4.00

18

16016002
ref: 18

PLUNGER,STARTER

€ 20.00

19

16021023
ref: 19

SCREW-THROTTLE STOP

€ 12.50

20

16022005
ref: 20

SPRING-THR STOP SCREW

€ 5.50

21

16022007
ref: 21

SPRING-THR STOP SCREW

€ 5.50

22

16014002
ref: 22

SCREW-PILOT AIR

€ 11.00

23

16019023
ref: 23

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

24

16032006
ref: 24

PIN,FLOAT

€ 4.00

25

16031026
ref: 25

FLOAT

€ 40.00

26

920271103
ref: 26

RING,JET NEEDLE

€ 4.50

27

920221024
ref: 27

WASHER,THROTTLE VALVE

€ 4.50

28

920811072
ref: 28

NEEDLE JET SPRING

€ 2.50

29

920641020
ref: 29

JET-PILOT,#A25

€ 12.50

30

16029004
ref: 30

WASHER-FLOAT VLV SEAT

€ 2.50

31

16030024
ref: 31

VALVE-FLOAT

€ 30.50

32

223B0414
ref: 32

SCREW PAN-WS-CROS

€ 2.50

33

16008012
ref: 33

RING,MAIN JET HOLD

€ 13.50

34

920631031
ref: 34

MAIN JET,#95R

€ 10.00

35

16034008
ref: 35

WASHER,MAIN JET COVER (NAS)

€ 4.00

36

92001146
ref: 36

BOLT,BANJO

€ 12.50

37

220B0308
ref: 37

SCREW-PAN-CROS

€ 0.50

38

461F0300
ref: 38

WASHER-SPRING,3MM

€ 0.50

39

16136009
ref: 39

GROMMET,OVERFLOW

€ 6.00
