AIR CLEANER/MUFFLER ('76-'79)
KS125 1974 USA CANADA

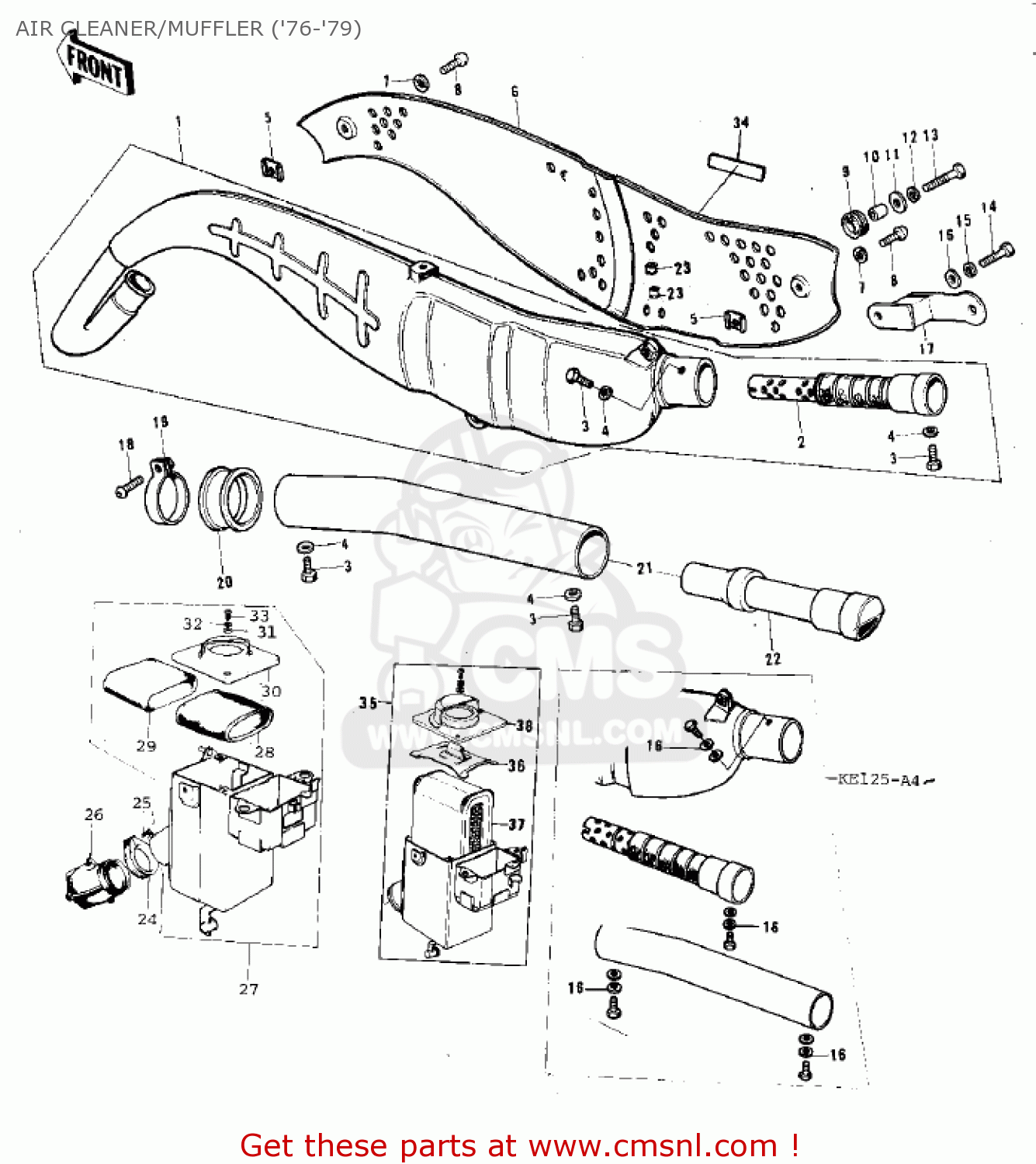

Air cleaner/muffler ('76-'79) diagram KS125 1974 USA CANADA
AIR CLEANER/MUFFLER ('76-'79) KS125 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
18001154
ref: 1
MUFFLER ASSY
€ 264.50
1
180011033
ref: 1
KE125-A6
MUFFLER ASSEMBLY
€ 179.50
2
18033077
ref: 2
BAFFLE TUBE
€ 35.50
3
112G0612
ref: 3
BOLT-UPSET
€ 2.50
4
92022183
ref: 4
WASHER,6.2X11X1.5
€ 2.50
4
92022077
ref: 4
KE125-A5~
WASHER,6.1X12X1
€ 0.50
5
18065010
ref: 5
INSULATOR,HEAT
€ 2.50
6
18064016
ref: 6
COVER,MUFFLER
€ 75.50
7
463H0600
ref: 7
WASHER-LOCK,6MM
€ 0.50
8
220B0612
ref: 8
SCREW-PAN HEAD,6X12
€ 1.00
9
18063005
ref: 9
DAMPER,MUFFLER
€ 3.00
10
92027102
ref: 10
COLLAR
€ 1.00
11
920221564
ref: 11
WASHER
€ 2.50
12
461F0800
ref: 12
WASHER-SPRING,8MM
€ 0.50
13
115G0830
ref: 13
BOLT-SMALL-UPSET,8X30
€ 3.00
14
92001121
ref: 14
BOLT,HEX HEAD,6X14
€ 2.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
411B0600
ref: 16
5 REQ KE125-A4
WASHER-PLAIN,6MM
€ 0.50
17
18061046
ref: 17
BRACKET,MUFFLER
€ 19.50
18
92011032
ref: 18
SCREW,PAN HEAD,5X30
€ 2.50
19
92037122
ref: 19
CLAMP,SPARK ARRESTOR
€ 8.50
20
920931042
ref: 20
SEAL,BAFFLETUBE
€ 13.50
21
18077001
ref: 21
ARRESTER,SPARK
€ 115.50
22
18033086
ref: 22
BAFFLE TUBE,ARRESTOR
€ 60.00
23
18065007
ref: 23
INSULATOR,HEAT
€ 3.00
24
92037129
ref: 24
CLAMP,AIR FILTER,ID=7
€ 8.50
25
220C0635
ref: 25
SCREW-PAN-CROS,6X35,B
€ 3.50
26
140731004
ref: 26
DUCT,AIR FILTER
€ 62.00
26
140731004
ref: 26
KE125-A5
DUCT,AIR FILTER
€ 62.00
27
1101007121
ref: 27
KE125-A3/A4/A5
AIR CLEANER ASY,BLAK
€ 71.00
28
11014011
ref: 28
KE125-A3/A4/A5
HOLDER,AIR FILTER ELE
€ 12.00
29
110131033
ref: 29
KE125-A3/A4/A5
ELEMENT-AIR FILTER
€ 27.00
30
1101203921
ref: 30
FLAT BLACK
CAP,AIR CLEANER
€ 9.00
31
410B0600
ref: 31
WASHER-PLAIN-SMALL,6M
€ 0.50
32
461F0600
ref: 32
WASHER-SPRING,6MM
€ 0.50
33
220B0612
ref: 33
SCREW-PAN HEAD,6X12
€ 1.00
34
56018224
ref: 34
EMBLEM,SIDE COVER
€ 12.50
34
560181037
ref: 34
KE125-A6
MARK,MUFFLER COVER
€ 8.50
35
110101126
ref: 35
KE125-A6
AIR FILTER ASSEMBLY
€ 85.50
36
130911006
ref: 36
KE125-A6
AIR CLEANER HOLDER
€ 17.50
37
110131007
ref: 37
AIR CLEANER ELEMENT
€ 22.00
38
110121024
ref: 38
AIR CLEANER CAP
€ 8.50
