CRANKCASE ('74-'75)
KS125 1974 USA CANADA

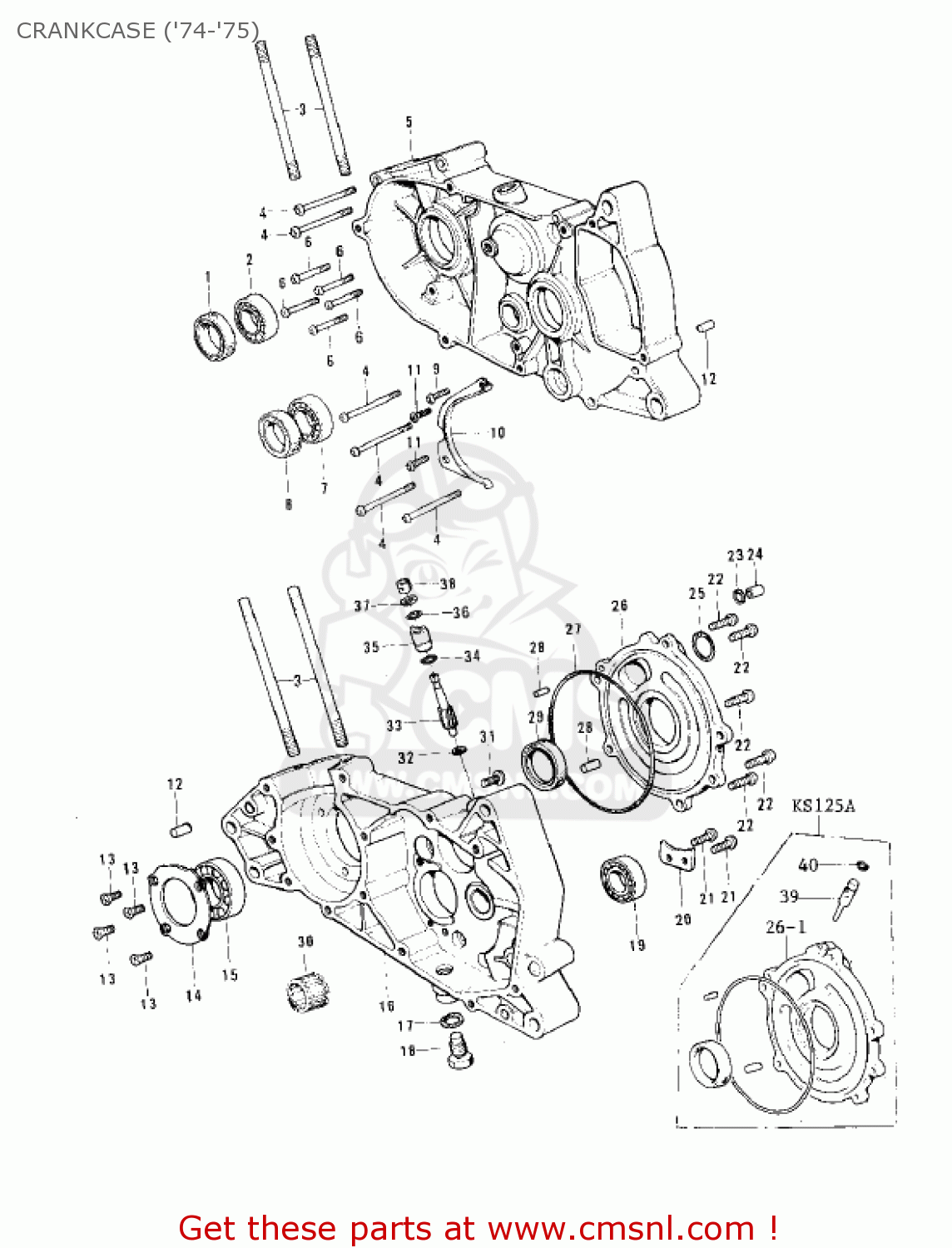

Crankcase ('74-'75) diagram KS125 1974 USA CANADA
CRANKCASE ('74-'75) KS125 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
920491240
ref: 1
SEAL-OIL
€ 10.50
2
601B6204
ref: 2
BEARING-BALL,#6204C3
€ 8.00
3
172G0870
ref: 3
STUD,8X70
€ 3.50
4
220B0640
ref: 4
SCREW-PAN HEAD,6X40
€ 2.00
5
140015149
ref: 5
FLAT BLACK
CRANKCASE,LH BLACK
€ 490.00
6
220B0640
ref: 6
SCREW-PAN HEAD,6X40
€ 2.00
7
601B6004
ref: 7
BEARING-BALL,#6004C3
€ 10.50
8
92050013
ref: 8
OIL SEAL SC25376
€ 9.50
9
220B0620
ref: 9
SCREW-PAN HEAD,6X20
€ 2.50
10
14077003
ref: 10
GUIDE-CHAIN
€ 7.50
11
220B0612
ref: 11
SCREW-PAN HEAD,6X12
€ 1.00
12
920431037
ref: 12
PIN,DOWEL,10X8.2X14
€ 0.50
13
221B0616
ref: 13
SCREW-CNTSNK HD,6X16
€ 0.50
14
14014028
ref: 14
PLATE,CRANK BEARING
€ 4.50
15
601B6304
ref: 15
BEARING-BALL,#6304C3
€ 31.00
16
14002104021
ref: 16
FLAT BLACK
CRANKCASE,R.H,BLACK
€ 178.00
17
92065073
ref: 17
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
18
920661240
ref: 18
PLUG,DRAIN
€ 4.50
19
601B6203
ref: 19
BEARING-BALL,#6203C3
€ 10.50
20
14014029
ref: 20
PLATE,MISSION BEARNG
€ 2.00
21
220B0612
ref: 21
SCREW-PAN HEAD,6X12
€ 1.00
22
220B0620
ref: 22
SCREW-PAN HEAD,6X20
€ 2.50
23
92055029
ref: 23
RING-O,7.8X3.5
€ 2.50
24
92042037
ref: 24
DOWEL PIN
€ 17.00
25
670B3028
ref: 25
O RING,28MM
€ 2.50
26
14019054
ref: 26
COVER ASY,ROTARY VLV
€ 31.00
26-1
14019054
ref: 26-1
KS125A
COVER ASY,ROTARY VLV
€ 31.00
27
92055057
ref: 27
RING-O,107.4X1.9
€ 5.50
28
610A0512
ref: 28
ROLLER,5X12
€ 3.00
29
920491250
ref: 29
SEAL-OIL
€ 12.00
30
92046043
ref: 30
BEARING-NEEDLE,36BDM4
€ 17.00
31
220B0625
ref: 31
SCREW-PAN HEAD,6X25
€ 1.50
32
92026091
ref: 32
SPACER,PLAIN,22MM
€ 26.50
33
13223007
ref: 33
GEAR,TACHOMETER
€ 35.50
34
92055061
ref: 34
RING-O,10X1.5
€ 3.00
35
92028136
ref: 35
BUSHING
€ 10.00
36
92055060
ref: 36
RING-O,7X1.7
€ 2.00
37
92022275
ref: 37
WASHER,7.3X9.6X0.6
€ 2.50
38
92028140
ref: 38
BUSHING,TACHOMETER
€ 6.50
39
92062012
ref: 39
KS125A
NOZZLE
€ 8.50
40
92055080
ref: 40
KS125A
RING-O,2.5X1.5
€ 3.00
