TURN SIGNAL

KMX200-A2 1988 EUROPE UK FR GR HR WG

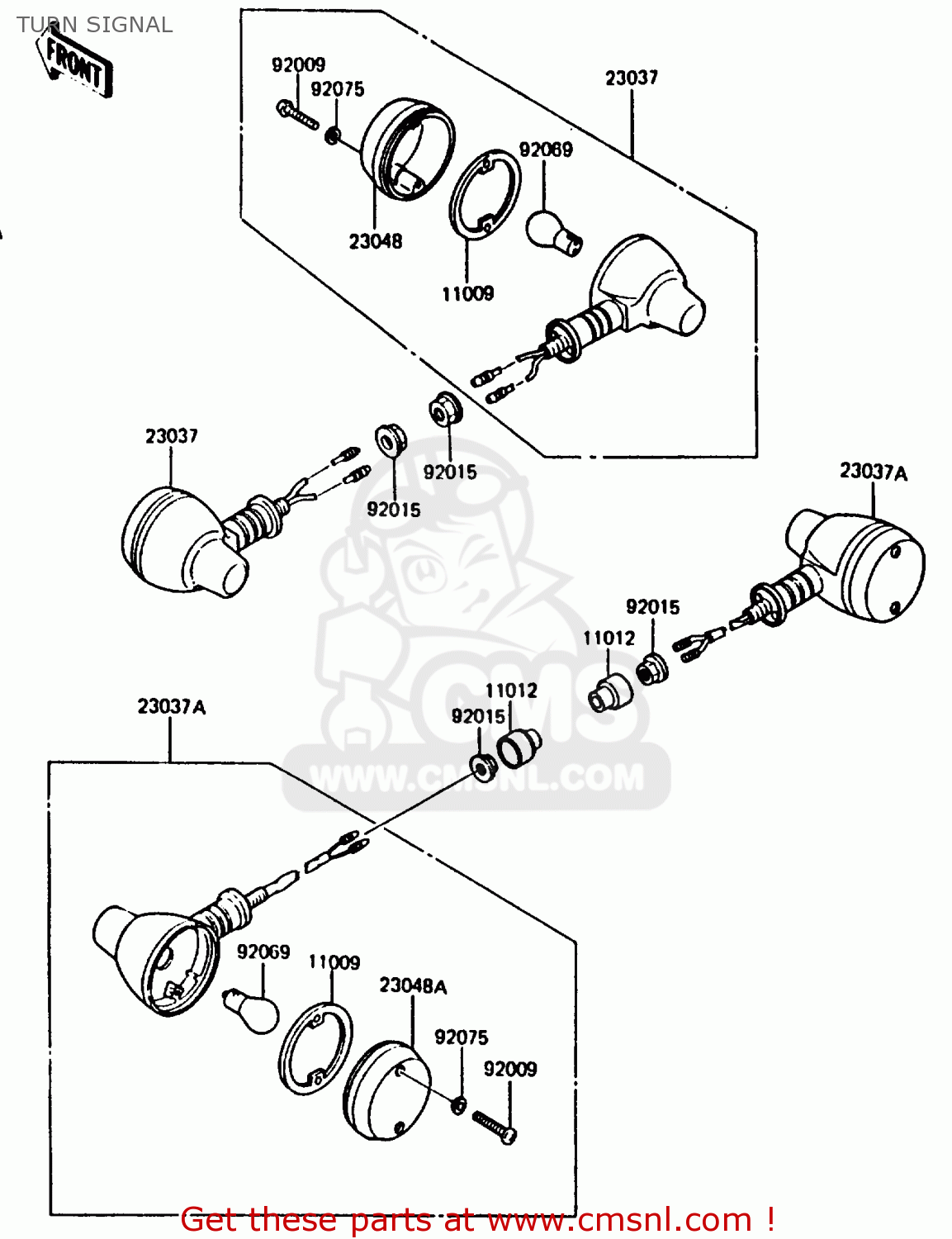

Turn signal diagram KMX200-A2 1988 EUROPE UK FR GR HR WG

prices are in EUR

ref

part #

description

quantity

11009

110091375
ref: 11009

GASKET,FLOAT CHAMBER

€ 11.50

11012

110121367
ref: 11012

CAP,SIGNAL LAMP

€ 4.00

23037

230371203
ref: 23037

LAMP-ASSY-SIGNAL,FR

€ 49.00

23037A

230371231
ref: 23037A

LAMP-ASSY-SIGNAL,RR

€ 56.50

23048

230481052
ref: 23048

LENS-SIGNAL LAMP,"077

€ 11.50

23048A

230481053
ref: 23048A

LENS-SIGNAL LAMP,"077

€ 11.50

92009

920091069
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92069

ref: 92069
(LOCAL PROCUREMENT I

92075

23058002
ref: 92075

WASHER,PLAIN,4MM

€ 2.00

all assemblies
