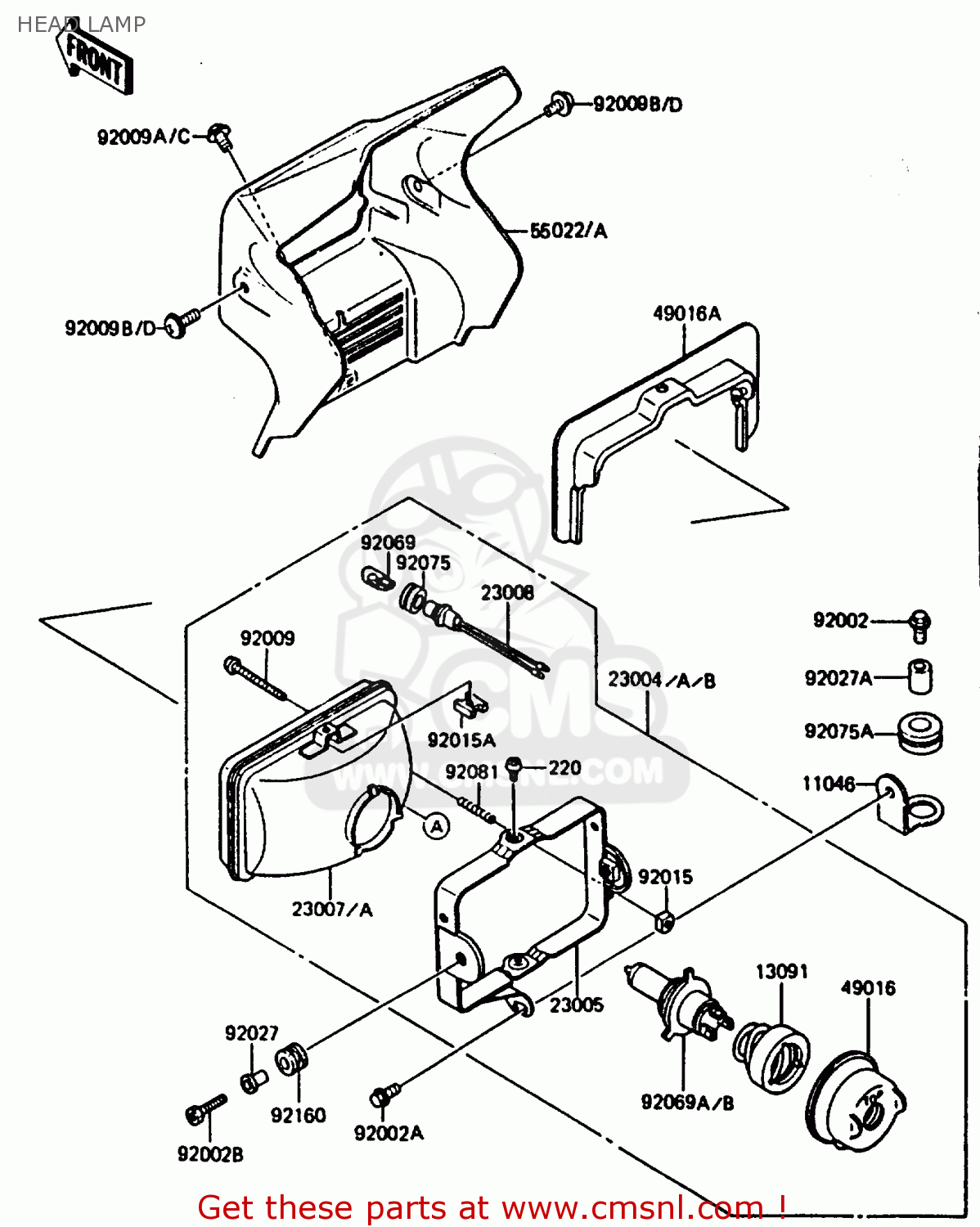

HEAD LAMP

ref

part #

description

quantity

11046

110461288
ref: 11046

BRACKET,HEAD LAMP

€ 4.00

13091

130911558
ref: 13091

HOLDER,SOCKET

€ 9.00

23004

230041157
ref: 23004
EU, GR, HR, WG

LAMP-HEAD

€ 336.50

23004A

230041158
ref: 23004A
FR

LAMP-HEAD

€ 348.50

23004B

230041159
ref: 23004B
UK

LAMP-HEAD

€ 346.00

23005

230051052
ref: 23005

BODY-COMP-HEAD LAMP

€ 27.50

23007

230071103
ref: 23007
EU, FR, GR, HR, WG

LENS-COMP,HEAD LAMP

€ 88.50

23007A

230071104
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 95.50

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161037
ref: 49016

COVER-SEAL,SOCKET

€ 7.50

49016A

490161101
ref: 49016A

COVER-SEAL,HEAD LAMP

€ 21.00

55022

5502250026W
ref: 55022
EU, FR, GR, NR, UK

COVER-HEAD LAMP,L.GRE

€ 78.50

55022A

5502250036C
ref: 55022A
EU, GR, NR, UK, WG

COVER-HEAD LAMP,EBONY

€ 94.00

92002

920021135
ref: 92002

BOLT,6X25

€ 2.50

92002A

920021260
ref: 92002A

BOLT,6X14

€ 0.50

92002B

920021319
ref: 92002B

BOLT

€ 4.50

92009

920091065
ref: 92009

SCREW,4MM

€ 3.00

92009A

920091287
ref: 92009A

SCREW,6X14

€ 1.50

92009B

920091294
ref: 92009B

SCREW,6X8

€ 2.50

92009C

920091308
ref: 92009C

SCREW,6X14

€ 2.00

92009D

920091314
ref: 92009D

SCREW,6X40

€ 2.50

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151354
ref: 92015A

NUT,5MM

€ 3.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92027A

92027162
ref: 92027A

COLLAR-REAR FENDER

€ 4.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
EU, GR, HR, UK, WG

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

92075209
ref: 92075A

DAMPER RUBBER

€ 3.00

92081

23014005
ref: 92081

SPRING-FOCUS ADJUST

€ 2.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

220

220B0508
ref: 220

SCREW-PAN-CROS,5X8

€ 0.50
