TAIL LAMP

KMX200-A2 1988 EUROPE UK FR GR HR WG

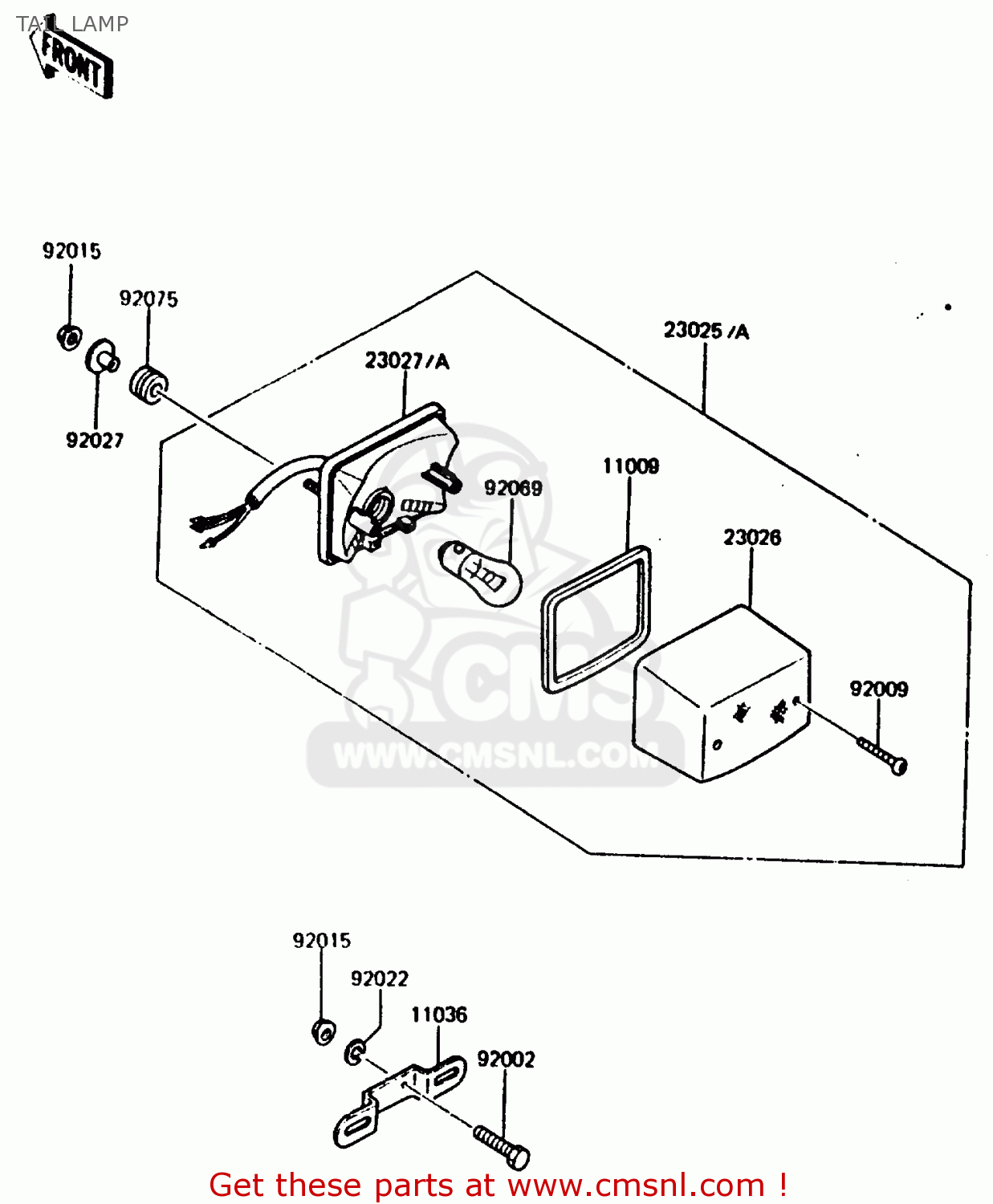

Tail lamp diagram KMX200-A2 1988 EUROPE UK FR GR HR WG

prices are in EUR

ref

part #

description

quantity

11009

110091078
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 4.50

11036

110361040
ref: 11036

BRACKET-A,LICENSE PLT

€ 13.00

23025

230251148
ref: 23025
EU, FR, GR, NR, UK

LAMP-TAIL

€ 106.00

23025A

230251149
ref: 23025A
WG

LAMP-TAIL

€ 106.00

23026

230261081
ref: 23026

LENS,TAIL LAMP

€ 45.00

23027

230271073
ref: 23027
EU, FR, GR, NR, UK

BODY-COMP-TAIL LAMP

€ 48.00

23027A

230271075
ref: 23027A
WG

BODY-COMP-TAIL LAMP

€ 106.00

92002

920021124
ref: 92002

BOLT,6X16

€ 2.50

92009

920091054
ref: 92009

SCREW

€ 2.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00

TAIL LAMP

all assemblies
