BRAKE PEDAL

KMX200-A2 1988 EUROPE UK FR GR HR WG

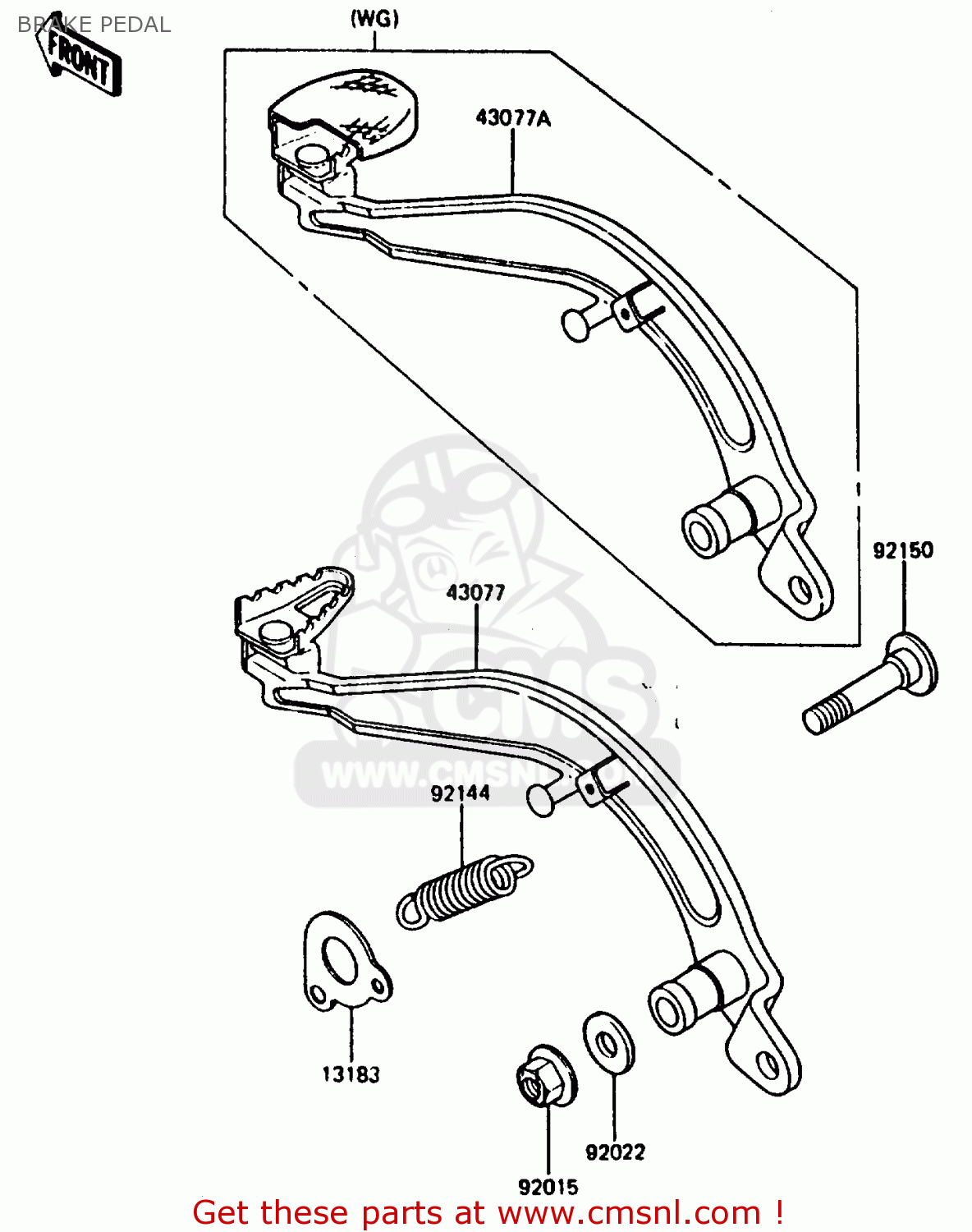

Brake pedal diagram KMX200-A2 1988 EUROPE UK FR GR HR WG

prices are in EUR

ref

part #

description

quantity

13183

131831240
ref: 13183

PLATE,BRAKE RETURN SP

€ 6.00

43077

430771067
ref: 43077
EU, FR, GR, NR, UK

LEVER-ASSY-BRAKE,PEDA

€ 56.00

43077A

430771068
ref: 43077A
WG

LEVER-ASSY-BRAKE,PEDA

€ 50.50

92015

920151668
ref: 92015

NUT

€ 3.00

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92144

921441227
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.50

92150

920011858
ref: 92150

BOLT,SOCKET,8X40

€ 4.00
