METER

KMX200-A2 1988 EUROPE UK FR GR HR WG

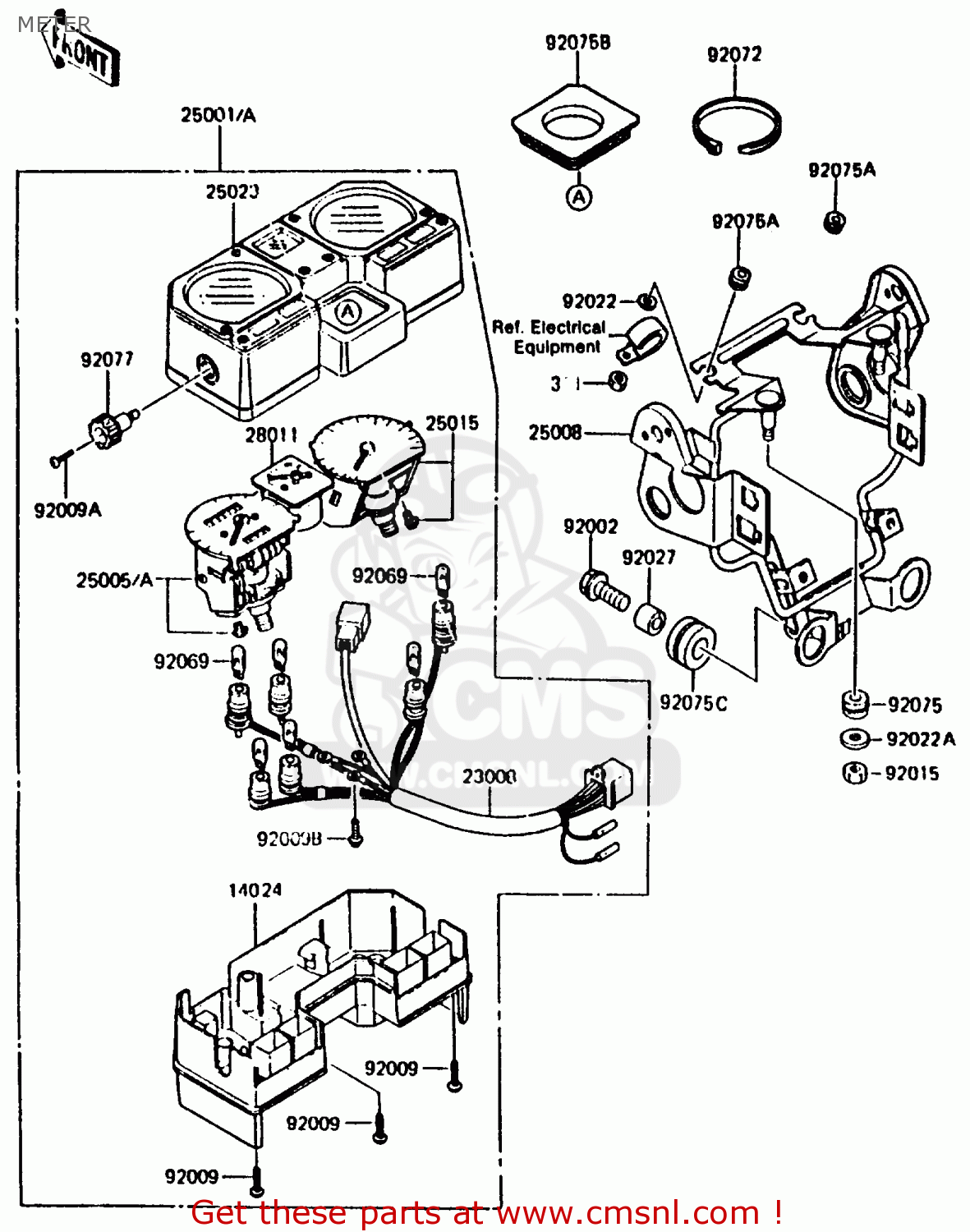

Meter diagram KMX200-A2 1988 EUROPE UK FR GR HR WG

METER KMX200-A2 1988 EUROPE UK FR GR HR WG
METER KMX200-A2 1988 EUROPE UK FR GR HR WG
METER KMX200-A2 1988 EUROPE UK FR GR HR WG
prices are in EUR
ref
part #
description
quantity
14024
140251904
ref: 14024
COVER,METER CASE,LWR
140251904
€ 42.00
23008
230081311
ref: 23008
SOCKET-ASSY,METER
230081311
€ 36.00
25001
250011720
ref: 25001
EU, FR, GR, NR, WG
METER-ASSY,KPH
€ 848.00
25001A
250011721
ref: 25001A
UK
METER-ASSY,MPH
€ 848.00
25005
250051380
ref: 25005
EU, FR, GR, NR, WG
SPEEDOMETER,KPH
€ 104.00
25005A
250051381
ref: 25005A
UK
SPEEDOMETER,MPH
€ 104.00
25008
250081145
ref: 25008
BRACKET-METER
250081145
€ 58.00
25015
250151257
ref: 25015
TACHOMETER,X1000R/MIN
€ 107.00
25023
250231142
ref: 25023
COVER-METER CASE,UPP
250231142
€ 55.50
28011
280111084
ref: 28011
METER,TEMP
280111084
€ 97.50
92002
920021137
ref: 92002
BOLT,6X25
920021137
€ 2.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
920091172
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
920091293
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
920151391
€ 2.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
25009004
€ 2.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92075
92075024
ref: 92075
DAMPER
92075024
€ 2.50
92075A
920751385
ref: 92075A
DAMPER,METER BRACKET
920751385
€ 3.00
92075B
920751578
ref: 92075B
DAMPER,IGNITION SWITC
920751578
€ 4.50
92075C
92075209
ref: 92075C
DAMPER RUBBER
92075209
€ 3.00
92077
920771054
ref: 92077
KNOB,METER
920771054
€ 6.00
311
311C0500
ref: 311
NUT-HEX
311C0500
€ 0.50
