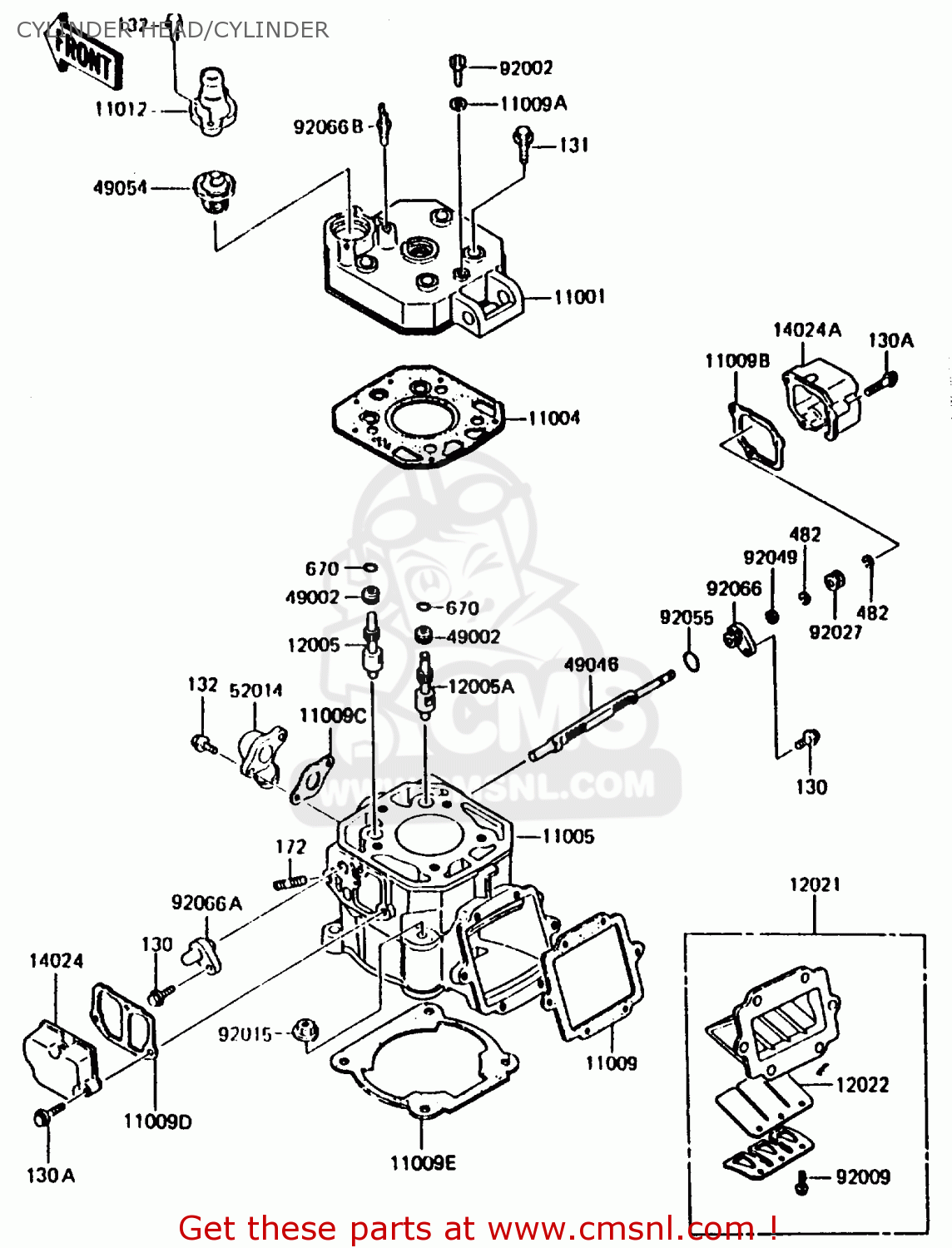

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

11001

110011262
ref: 11001

HEAD-CYLINDER

€ 150.50

11004

110041170
ref: 11004

GASKET-HEAD (NAS)

€ 17.50

11005

110051532
ref: 11005

CYLINDER-ENGINE

€ 683.50

11009

110091263
ref: 11009

GASKET,REED VALVE (MCA)

€ 6.00

11009A

110091298
ref: 11009A

GASKET,6X12X10 (NAS)

€ 3.00

11009B

110091479
ref: 11009B

GASKET,RH,GOVERNOR (MCA)

€ 5.50

11009C

110091584
ref: 11009C

GASKET,ELBOW (MCA)

€ 3.50

11009D

110091641
ref: 11009D

GASKET,LH,RESONATOR (MCA)

€ 4.00

11009E

110091764
ref: 11009E

GASKET,CYLINDER BASE (MCA)

€ 11.00

11012

110121513
ref: 11012

CAP,THERMOSTAT

€ 18.50

12005

120051104
ref: 12005

VALVE-EXHAUST,LH

€ 38.00

12005A

120051105
ref: 12005A

VALVE-EXHAUST,RH

€ 38.00

12021

120211074
ref: 12021

VALVE-ASSY-REED

€ 122.00

12022

120221061
ref: 12022

VALVE-REED

€ 10.50

14024

140241622
ref: 14024

COVER,LH,RESONATOR

€ 24.00

14024A

140241650
ref: 14024A

COVER,RH,GOVERNOR

€ 33.00

49002

490021080
ref: 49002

GUIDE-VALVE

€ 9.50

49046

490461061
ref: 49046

ROD-GOVERNOR

€ 52.00

49054

490541057
ref: 49054

THERMOSTAT

€ 46.00

52014

520141061
ref: 52014

ELBOW

€ 18.50

92002

920021322
ref: 92002

BOLT,LEVER SET

€ 8.00

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92027

920271834
ref: 92027

COLLAR,GOVERNOR ROD

€ 11.50

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92055

920551150
ref: 92055

O-RING, 10MM

€ 5.50

92066

920661254
ref: 92066

PLUG,GOVERNOR ROD,RH

€ 15.50

92066A

920661255
ref: 92066A

PLUG,GOVERNOR ROD,LH

€ 13.00

92066B

920661307
ref: 92066B

PLUG,SENSOR,WATER

€ 39.50

130

130G0516
ref: 130

BOLT-FLANGED

€ 0.50

130A

130J0530
ref: 130A

BOLT-FLANGED

€ 2.50

131

131S0850
ref: 131

BOLT-FLANGED

€ 5.00

132

132J0816
ref: 132

BOLT-FLANGED-SMALL,8X

€ 2.00

172

172G0822
ref: 172

BOLT-STUD,8X22

€ 1.50

482

482J4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00
