TAILLIGHT(S)

KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

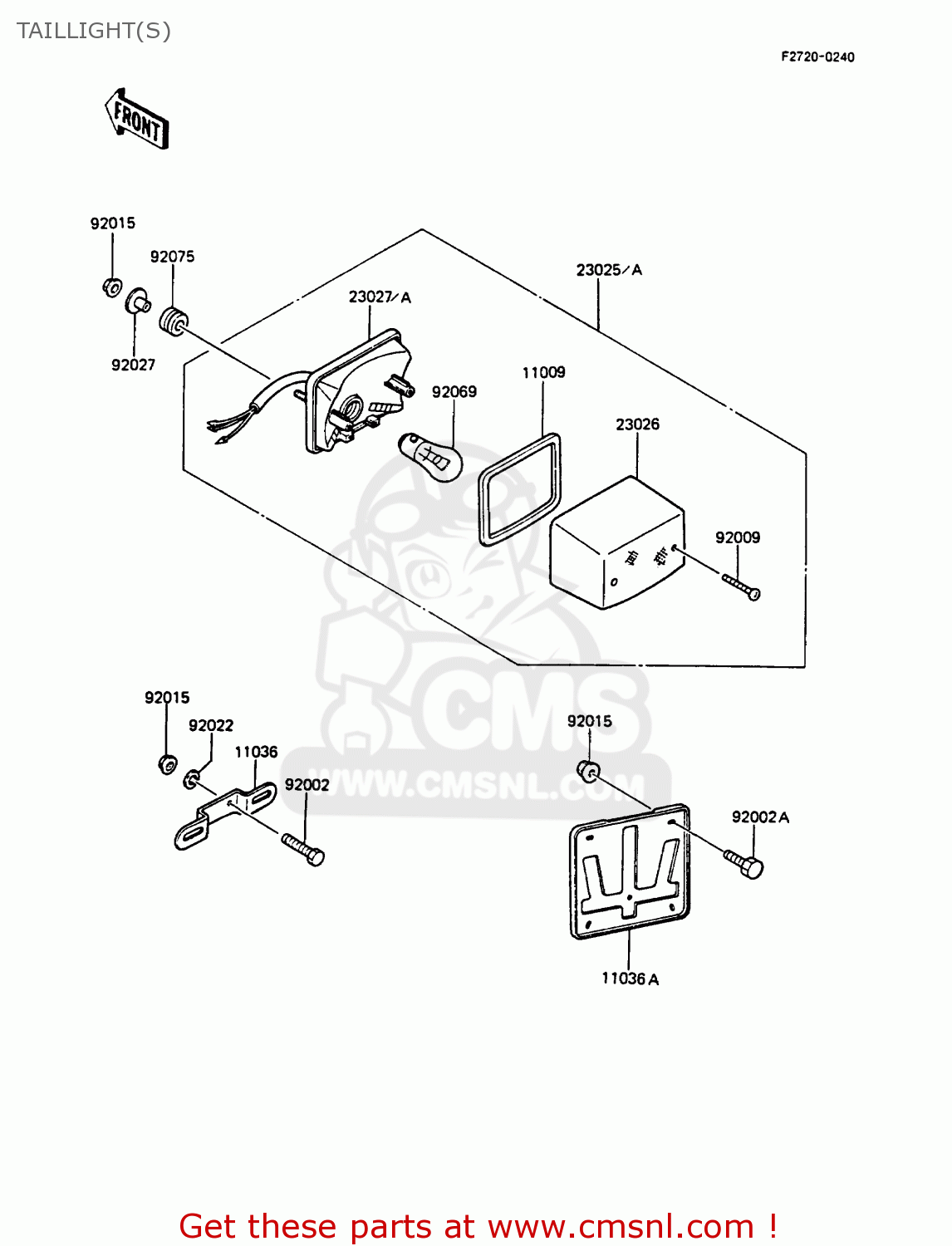

Taillight(s) diagram KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

TAILLIGHT(S) KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD
TAILLIGHT(S) KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD
TAILLIGHT(S) KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
110091078
€ 4.50
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
110361040
€ 13.00
11036A
110361820
ref: 11036A
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
23025
230251148
ref: 23025
EUGRITNRSDSTUK
LAMP-TAIL
230251148
€ 106.00
23025A
230251149
ref: 23025A
FG
LAMP-TAIL
€ 106.00
23026
230261081
ref: 23026
LENS,TAIL LAMP
230261081
€ 45.00
23027
230271073
ref: 23027
EUGRITNRSDSTUK
BODY-COMP-TAIL LAMP
230271073
€ 48.00
23027A
230271075
ref: 23027A
FG
BODY-COMP-TAIL LAMP
€ 106.00
92002
920021124
ref: 92002
BOLT,6X16
920021124
€ 2.50
92002A
920021132
ref: 92002A
IT
BOLT,6X12
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
920091056
€ 2.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
920151193
€ 0.50
92015
920151193
ref: 92015
EUFGGRNRSDSTUK
NUT,FLANGED,6MM
920151193
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
