BRAKE PEDAL

KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

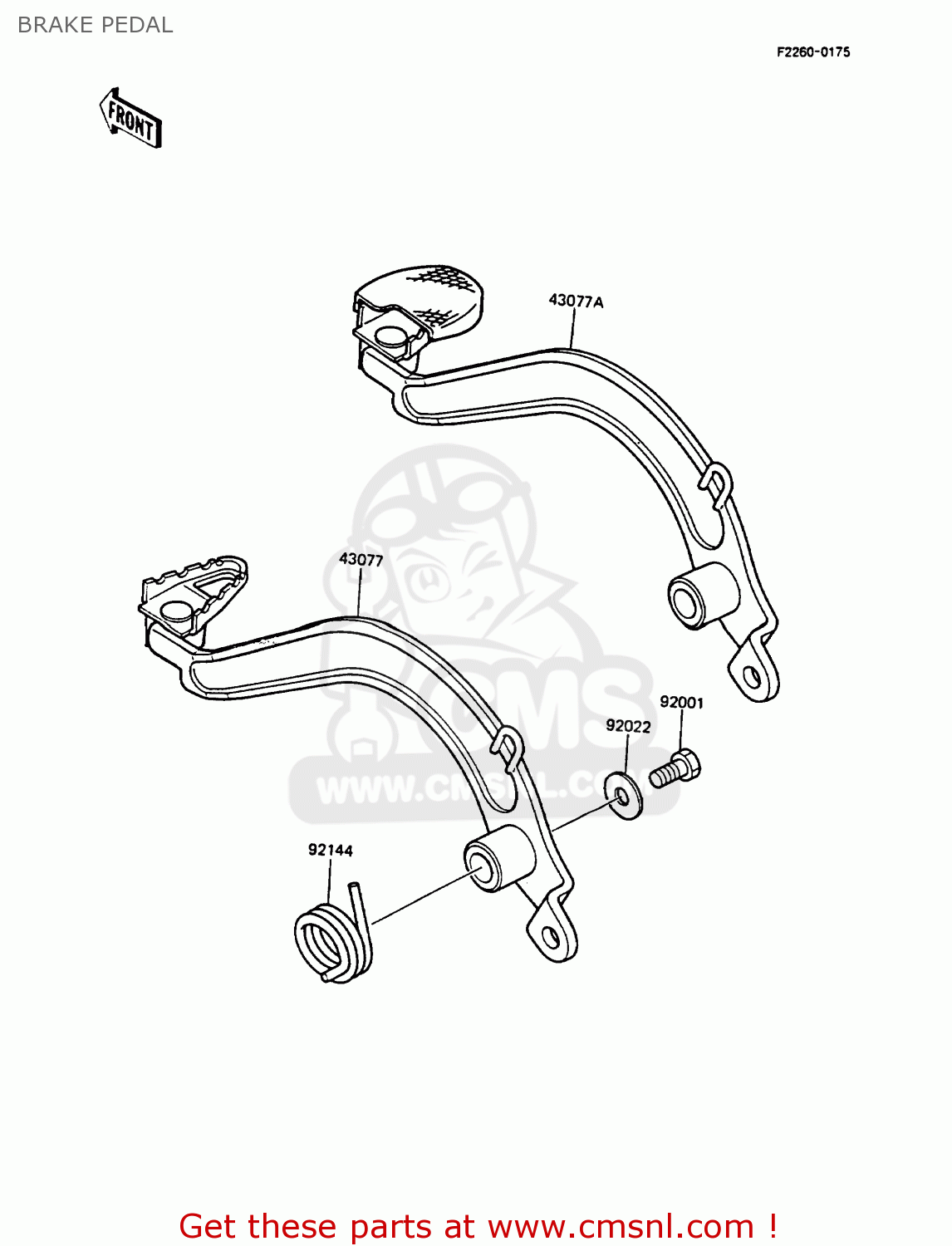

Brake pedal diagram KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

BRAKE PEDAL KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

BRAKE PEDAL KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

prices are in EUR

ref

part #

description

quantity

43077

430771063
ref: 43077
EUGRITNRSDSTUK

LEVER-ASSY-BRAKE,PEDA

€ 68.25

43077A

430771064
ref: 43077A
FG

LEVER-ASSY-BRAKE,PEDA

€ 40.00

92001

920011457
ref: 92001

BOLT,EXCLUSIVE MASS P

€ 3.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92144

921441033
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.00
