IGNITION SWITCH

KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

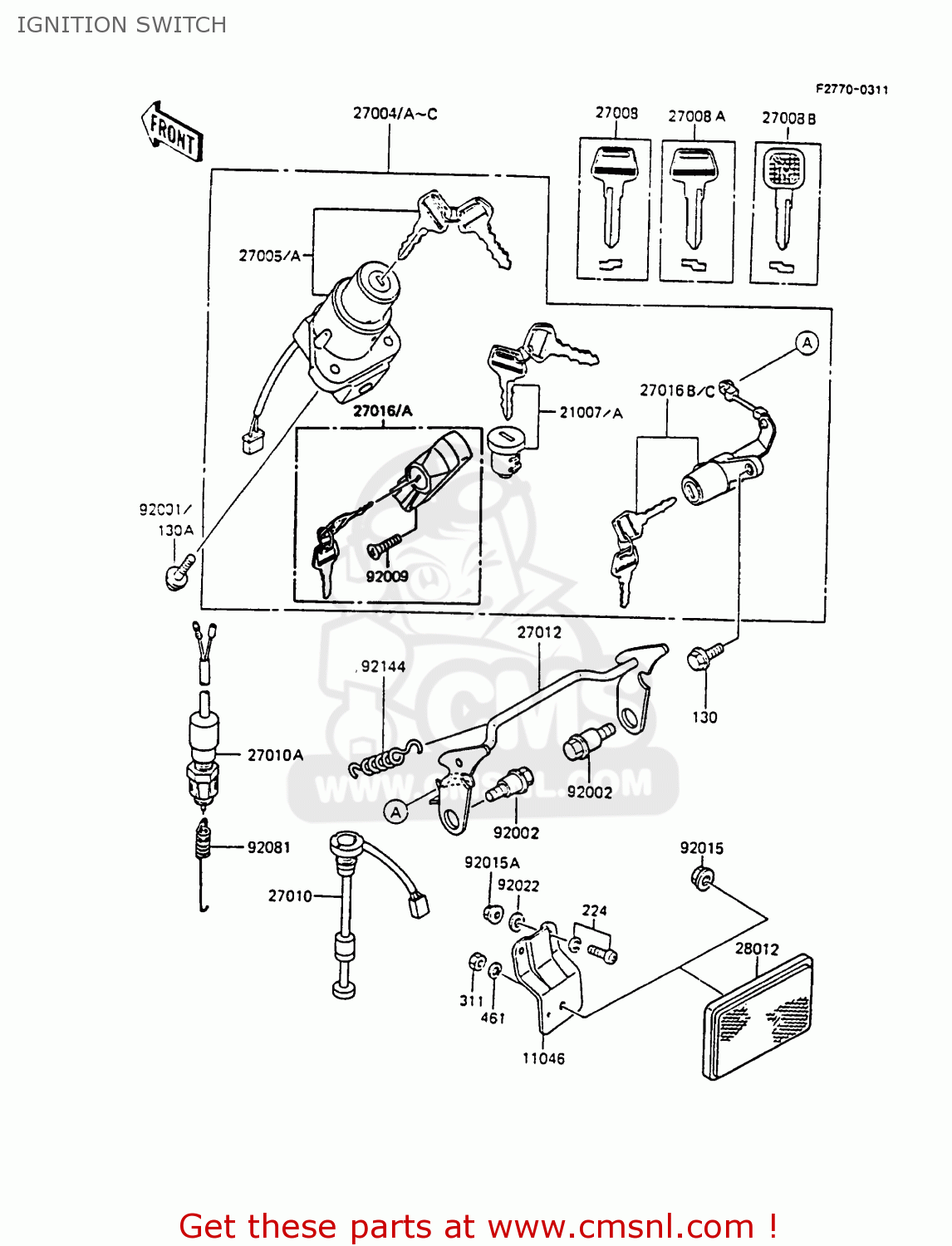

Ignition switch diagram KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

IGNITION SWITCH KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD
IGNITION SWITCH KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD
IGNITION SWITCH KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD
prices are in EUR
ref
part #
description
quantity
27004
270045288
ref: 27004
EUGRITSTUK
SWITCH-ASSY
€ 118.50
27004A
270045289
ref: 27004A
FGNRSD
SWITCH-ASSY
270045289
€ 130.50
27005
270051103
ref: 27005
EUGRITSTUK
SWITCH-ASSY-IGNITION
270051103
€ 264.00
27005A
270051104
ref: 27005A
FGNRSD
SWITCH-ASSY-IGNITION
270051104
€ 134.00
27008
270081034
ref: 27008
EUGRITSTUK
KEY,BLANK
270081034
€ 13.00
27008A
270081035
ref: 27008A
EUGRITSTUK
KEY,BLANK
270081035
€ 12.50
27008B
270081105
ref: 27008B
FGNRSD
KEY-LOCK,BLANK
270081105
€ 12.50
27010
270101041
ref: 27010
SWITCH,OIL LEVEL
270101041
€ 43.50
27010A
270101215
ref: 27010A
SWITCH,BRAKE LAMP
270101215
€ 23.00
27012
270121389
ref: 27012
HOOK,SEAT
270121389
€ 20.50
27016
270165029
ref: 27016
EUGRITSTUK
LOCK ASSY,HELMET
270165029
€ 73.50
27016A
270165100
ref: 27016A
FGNRSD
LOCK-ASSY,HELMET
€ 73.50
27016B
270165115
ref: 27016B
EUGRITSTUK
LOCK-ASSY,SEAT
270165115
€ 64.00
130
130D0608
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0614
ref: 130A
EUGRITSTUK
BOLT-FLANGED,6X14
130D0614
€ 0.50
27016C
270165116
ref: 27016C
FGNRSD
LOCK-ASSY,SEAT
€ 64.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
280121054
€ 15.00
92001
920011465
ref: 92001
FGNRSD
BOLT
920011465
€ 3.00
92002
920021596
ref: 92002
BOLT,*
920021596
€ 6.00
92009
920091547
ref: 92009
SCREW,5X18
920091547
€ 3.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92081
27011021
ref: 92081
SPRING,BRAKE LAMP SW
27011021
€ 15.50
92144
921441120
ref: 92144
SPRING,SEAT LOCK RETU
921441120
€ 4.00
