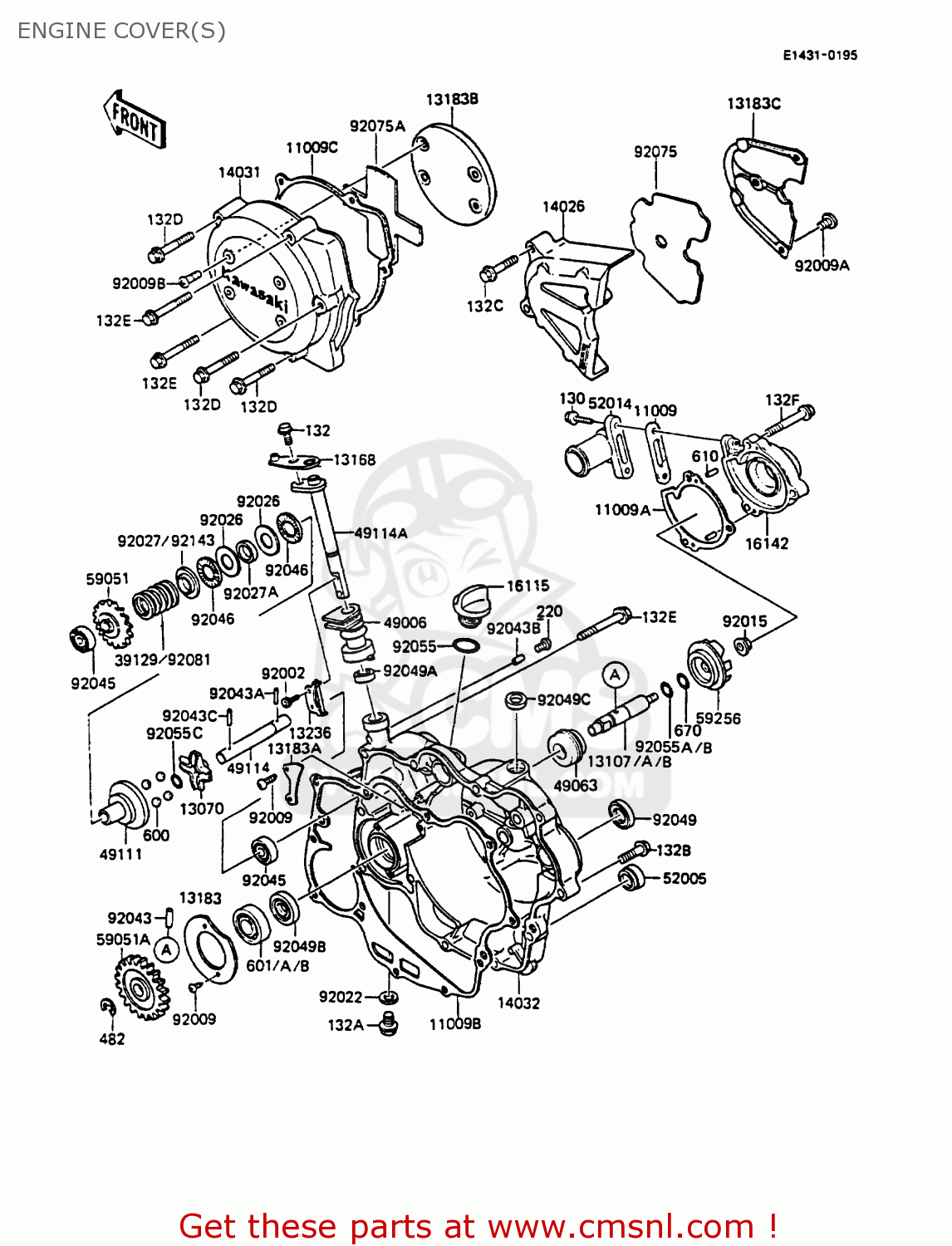

ENGINE COVER(S)

ref

part #

description

quantity

11009

110091446
ref: 11009

GASKET,WATER PUMP (MCA)

€ 3.50

11009A

110091531
ref: 11009A

GASKET,WATER PUMP COV (MCA)

€ 6.00

11009B

110091585
ref: 11009B

GASKET,CLUTCH COVER (MCA)

€ 20.00

11009C

110091586
ref: 11009C

GASKET,GENERATOR COVE (MCA)

€ 9.00

13070

130701122
ref: 13070

GUIDE

€ 45.50

13107

131071181
ref: 13107

SHAFT

€ 24.00

13107B

131071234
ref: 13107B

SHAFT

€ 24.00

13168

131681248
ref: 13168

LEVER,GOVERNOR

€ 7.00

13183

131831044
ref: 13183

PLATE

€ 6.00

13183A

131831045
ref: 13183A

PLATE,OIL GUIDE

€ 3.50

13183B

131831059
ref: 13183B

PLATE,GENERATOR COVER

€ 17.50

13183C

131831060
ref: 13183C

PLATE,CHAIN COVER

€ 18.50

13236

132361182
ref: 13236

LEVER-COMP,GOVERNOR

€ 7.00

14026

140261124
ref: 14026

COVER-CHAIN

€ 43.00

14031

140311194
ref: 14031

COVER-GENERATOR

€ 55.50

14032

140321221
ref: 14032

COVER-CLUTCH

€ 285.00

16115

161151053
ref: 16115

CAP-OIL FILLER

€ 12.50

16142

161421068
ref: 16142

COVER-PUMP

€ 74.50

39129

391291001
ref: 39129
EUGRITNRSDUK

SPRING-GOVERNER,GOVER

€ 4.00

49006

490061171
ref: 49006

BOOT,GOVERNOR

€ 10.50

49063

490631002
ref: 49063

SEAL-MECHANICAL,WATER

€ 17.00

49111

491111051
ref: 49111

HOLDER-GOVERNOR WEIGH

€ 44.00

49114

491141058
ref: 49114

SHAFT-GOVERNOR

€ 19.50

49114A

491141059
ref: 49114A

SHAFT-GOVERNOR

€ 28.00

52005

520051055
ref: 52005

GAUGE,OIL LEVEL

€ 10.50

52014

520141062
ref: 52014

ELBOW

€ 18.50

59051

590511167
ref: 59051

GEAR-SPUR,GOVERNOR,21

€ 24.50

59051A

590511185
ref: 59051A

GEAR-SPUR, WATER PUMP

€ 24.00

59256

592561063
ref: 59256

IMPELLER

€ 23.00

92002

920021403
ref: 92002

BOLT,SOCKET,4X8

€ 2.00

92009

920091021
ref: 92009

SCREW,TAPPING,4X10

€ 2.50

92009A

920091155
ref: 92009A

SCREW,TAPPING,4X8

€ 2.00

92009B

920091455
ref: 92009B

SCREW

€ 1.50

130

130J0520
ref: 130

BOLT-FLANGED

€ 2.00

132

132G0608
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0810
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0625
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132J0635
ref: 132C

BOLT-FLANGED-SMALL

€ 2.50

132D

132J0640
ref: 132D

BOLT-FLANGED-SMALL

€ 3.00

132E

132J0645
ref: 132E

BOLT-FLANGED-SMALL

€ 3.00

132F

132J0665
ref: 132F

BOLT-FLANGED-SMALL

€ 3.00

220

220C0306
ref: 220

SCREW-PAN-CROS

€ 1.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

920221488
ref: 92022

WASHER,8.2X14X1

€ 3.00

92026

920261238
ref: 92026

SPACER,15X28X1

€ 5.50

92027

920271838
ref: 92027
FGST

COLLAR

€ 17.50

92027A

920271839
ref: 92027A

COLLAR,15.2X17X4

€ 8.50

92043

920431129
ref: 92043

PIN,3.5X23.8

€ 3.00

92043A

920431256
ref: 92043A

PIN,3X12.8

€ 3.00

92043B

920431293
ref: 92043B

PIN,2X9.8

€ 4.00

92043C

920431319
ref: 92043C

PIN,3X19.8

€ 2.50

92045

920451048
ref: 92045

BEARING-BALL,#608

€ 11.50

92046

920461052
ref: 92046

BEARING-NEEDLE,AXK110

€ 14.00

92049

92049002
ref: 92049

OIL SEAL SB16244

€ 6.00

92049A

920491207
ref: 92049A

SEAL-OIL,SDO8144

€ 6.50

92049B

920491259
ref: 92049B

SEAL-OIL,SC12 28.555

€ 5.50

92049C

920491262
ref: 92049C

SEAL-OIL

€ 4.00

92055

92055012
ref: 92055

'O' RING 18MM

€ 1.00

92055B

92055099
ref: 92055B

O RING, 8.8MM

€ 3.00

92055C

920551343
ref: 92055C

RING-O,5.5X1.5

€ 3.00

92075

920751886
ref: 92075

DAMPER,CHAIN COVER

€ 16.00

92075A

920751895
ref: 92075A

DAMPER,GENERATOR COVE

€ 31.00

92081

920811769
ref: 92081
FGST

SPRING,GOVERNOR

€ 3.00

92143

921431001
ref: 92143
EUGRITNRSDUK

COLLAR

€ 15.50

482

482J0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A1000
ref: 600

BALL-STEEL,5/16

€ 0.50

601

601B6201
ref: 601

BEARING-BALL,#6201C3

€ 7.00

601B

601B6201U
ref: 601B

BEARING-BALL,#6201LUC

€ 18.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

all assemblies
