OIL TANK

KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

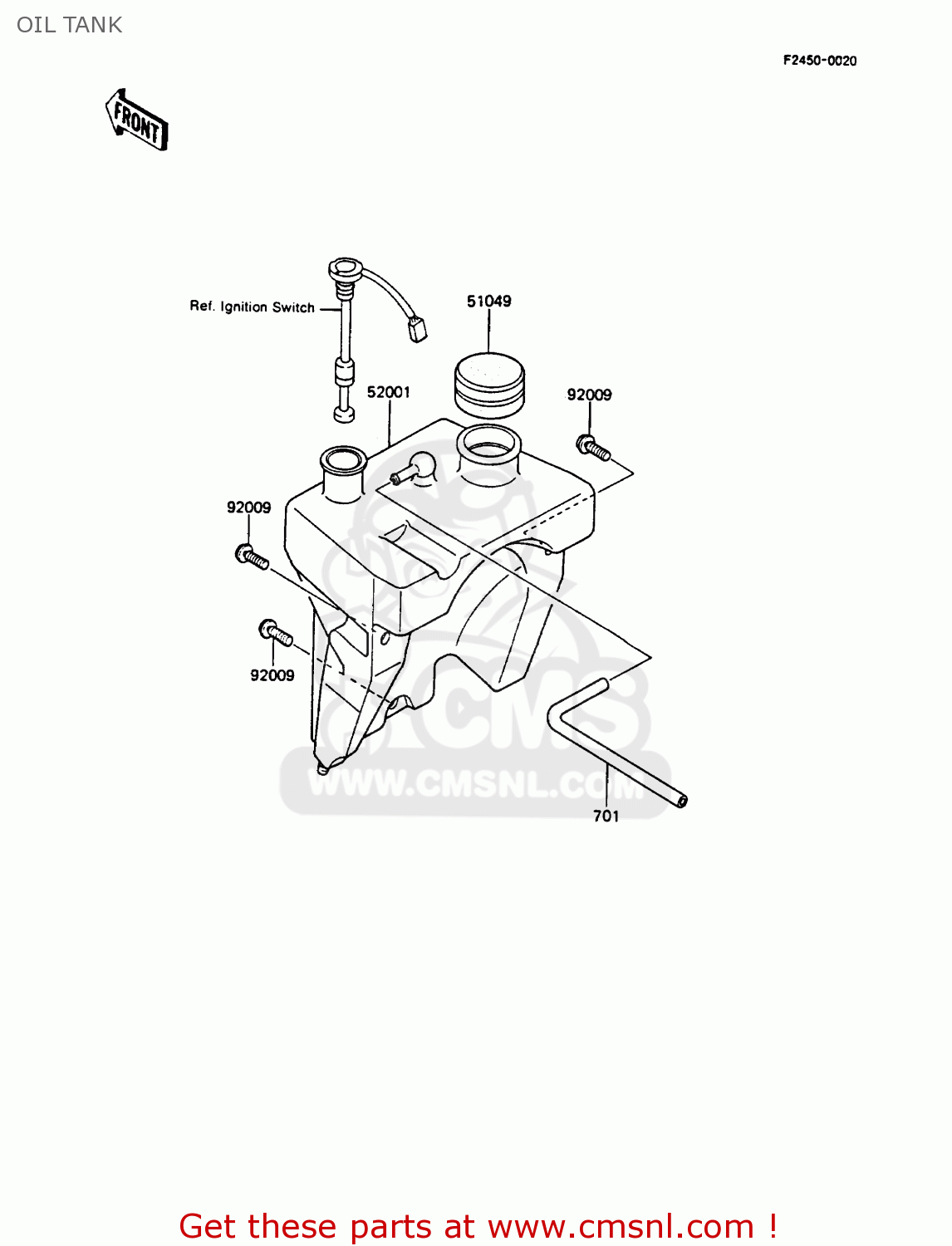

Oil tank diagram KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

OIL TANK KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

OIL TANK KMX125-A2 1987 EUROPE UK FG GR IT NR ST SD

prices are in EUR

ref

part #

description

quantity

701

701Q05400
ref: 701

TUBE-PVC,5X400

€ 2.00

51049

510491004
ref: 51049

CAP-OIL,TANK

€ 10.00

52001

520011067
ref: 52001

TANK-OIL

€ 43.00

92009

920091273
ref: 92009

SCREW,6X16

€ 3.50
