TURN SIGNALS

KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD

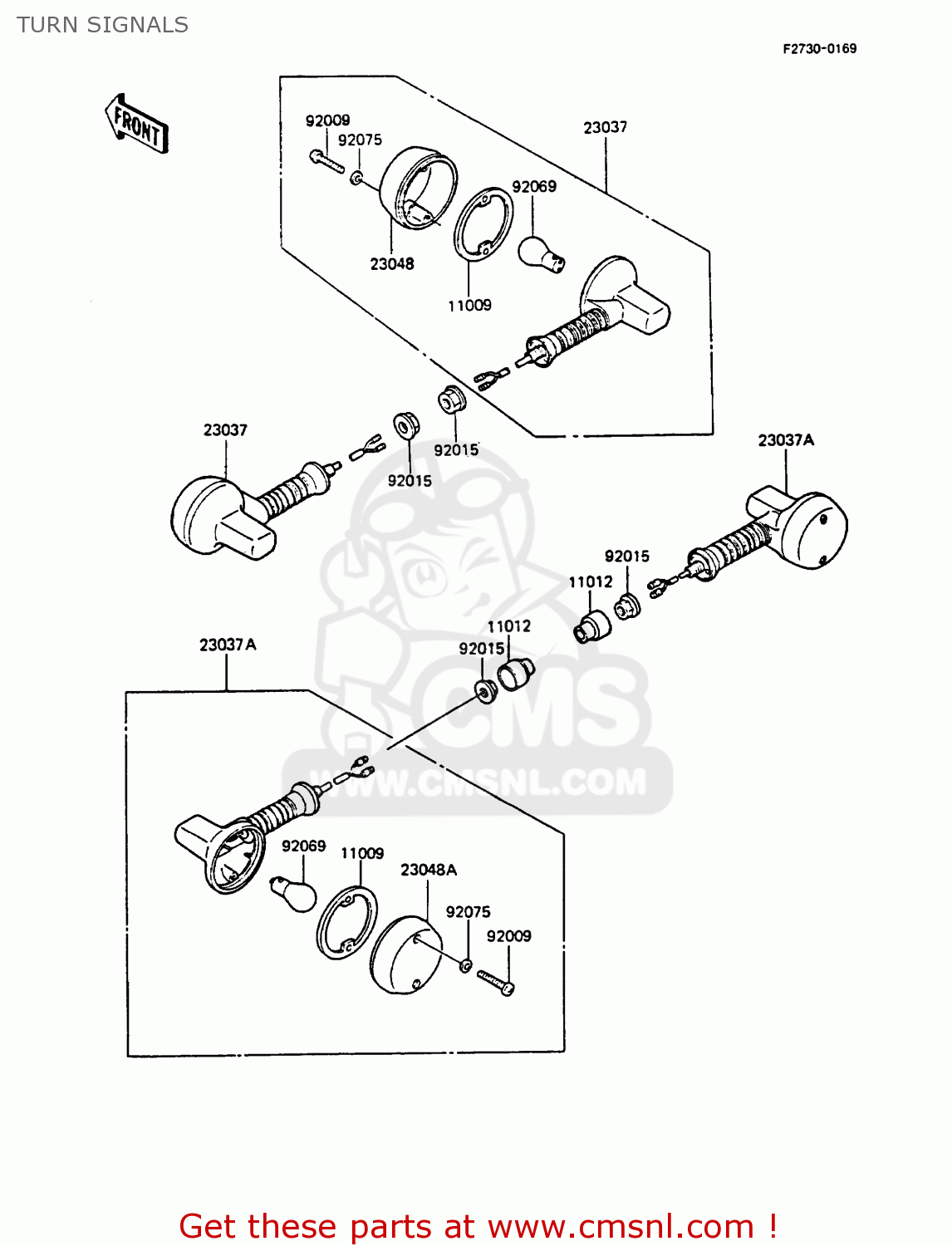

Turn signals diagram KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD

TURN SIGNALS KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD
TURN SIGNALS KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD
TURN SIGNALS KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD
prices are in EUR
ref
part #
description
quantity
11009
110091373
ref: 11009
GASKET (NAS)
110091373
€ 4.00
11012
110121367
ref: 11012
CAP,SIGNAL LAMP
110121367
€ 4.00
23037
230371203
ref: 23037
LAMP-ASSY-SIGNAL,FR
230371203
€ 49.00
23037A
230371231
ref: 23037A
LAMP-ASSY-SIGNAL,RR
230371231
€ 56.50
23048
230481052
ref: 23048
LENS-SIGNAL LAMP,"077
230481052
€ 11.50
23048A
230481053
ref: 23048A
LENS-SIGNAL LAMP,"077
230481053
€ 11.50
92009
920091069
ref: 92009
SCREW,TAPPING,4X25
920091069
€ 2.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92069

ref: 92069
92075
23058002
ref: 92075
WASHER,PLAIN,4MM
23058002
€ 2.00
