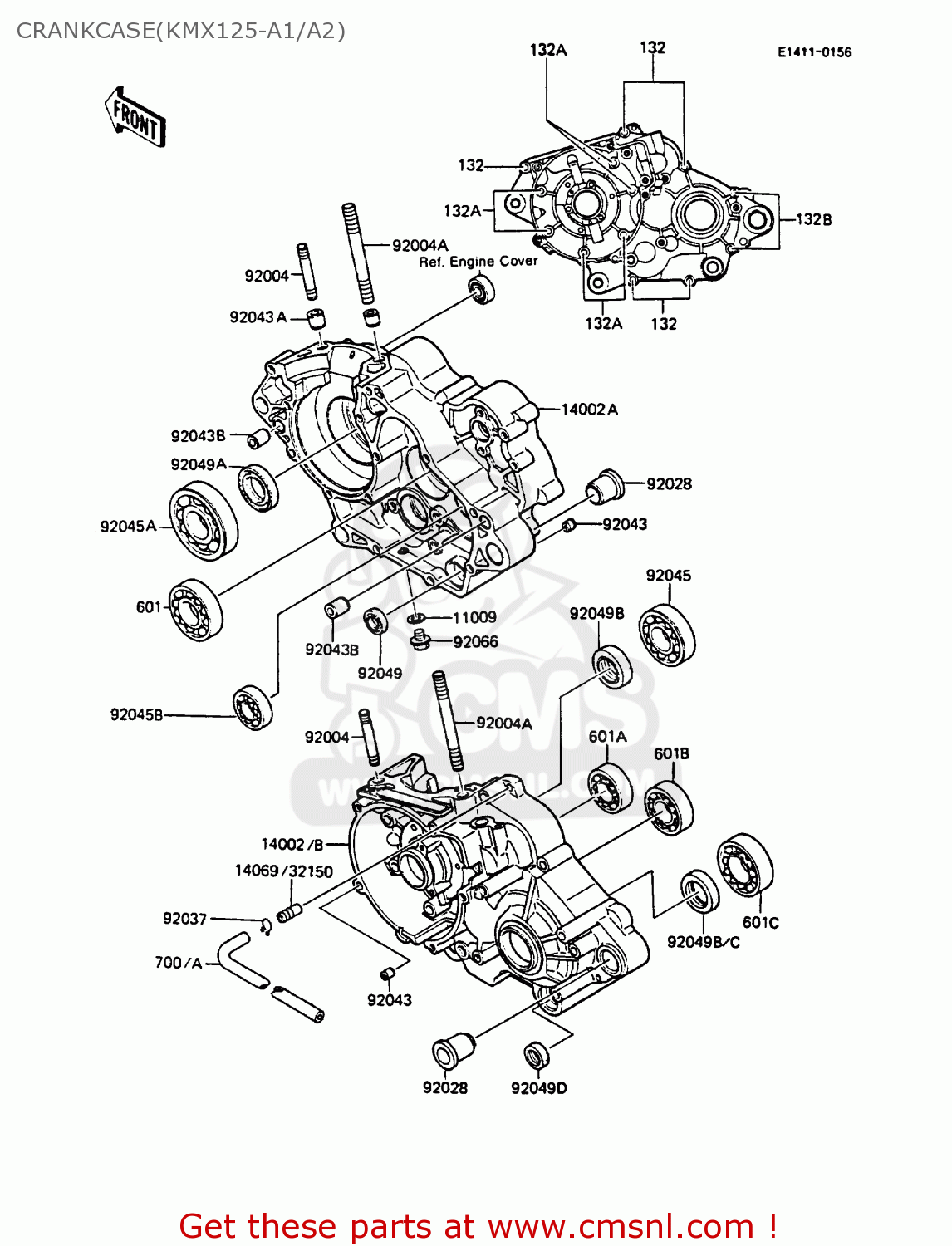

CRANKCASE(KMX125-A1/A2)

ref

part #

description

quantity

132

132G0650
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

132A

132G0660
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132G0675
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

601

601A6204Z
ref: 601

BEARING-BALL

€ 28.00

601A

601A6301
ref: 601A

BEARING-BALL

€ 15.00

601B

601B6202
ref: 601B

BEARING-BALL,#6202C3

€ 14.50

601C

601B6304
ref: 601C

BEARING-BALL,#6304C3

€ 31.00

700

700Q05360
ref: 700

TUBE-PVC,5X360

€ 1.50

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

14002

140021405
ref: 14002

CRANKCASE,LH

€ 306.00

14002A

140021406
ref: 14002A

CRANKCASE,RH

€ 302.00

14002B

140021473
ref: 14002B

CRANKCASE,LH

€ 383.50

14069

14069006
ref: 14069

BRFATHER

€ 2.00

32150

321501070
ref: 32150

PIPE,BREATHER

€ 3.50

92004

920041170
ref: 92004

STUD

€ 4.00

92004A

920041171
ref: 92004A

STUD

€ 6.00

92028

920281261
ref: 92028

BUSHING,SWING ARM

€ 12.00

92037

920371835
ref: 92037

CLAMP

€ 3.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92043A

920431264
ref: 92043A

PIN,DOWEL,8.2X10X14

€ 0.50

92043B

920431265
ref: 92043B

PIN,9.2X12X14

€ 4.50

92045

920451061
ref: 92045

BEARING-BALL,R-6205C3

€ 30.50

92045A

920451120
ref: 92045A

BEARING-BALL,6305JR2C

€ 34.00

92045B

920451169
ref: 92045B

BEARING-BALL,6202X19

€ 17.50

92049

920491186
ref: 92049

SEAL-OIL,TB13205

€ 5.50

92049A

920491187
ref: 92049A

SEAL-OIL,TC25406

€ 5.50

92049B

920491257
ref: 92049B

SEAL-OIL,TC20376.5

€ 7.00

92049C

92050013
ref: 92049C

OIL SEAL SC25376

€ 9.50

92049D

92051005A
ref: 92049D

OIL SEAL,TB13225.5

€ 5.50

92066

920661241
ref: 92066

PLUG

€ 4.00

700A

700T04360
ref: 700A

TUBE-PVC

€ 2.00

all assemblies
