REAR HUB

KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD

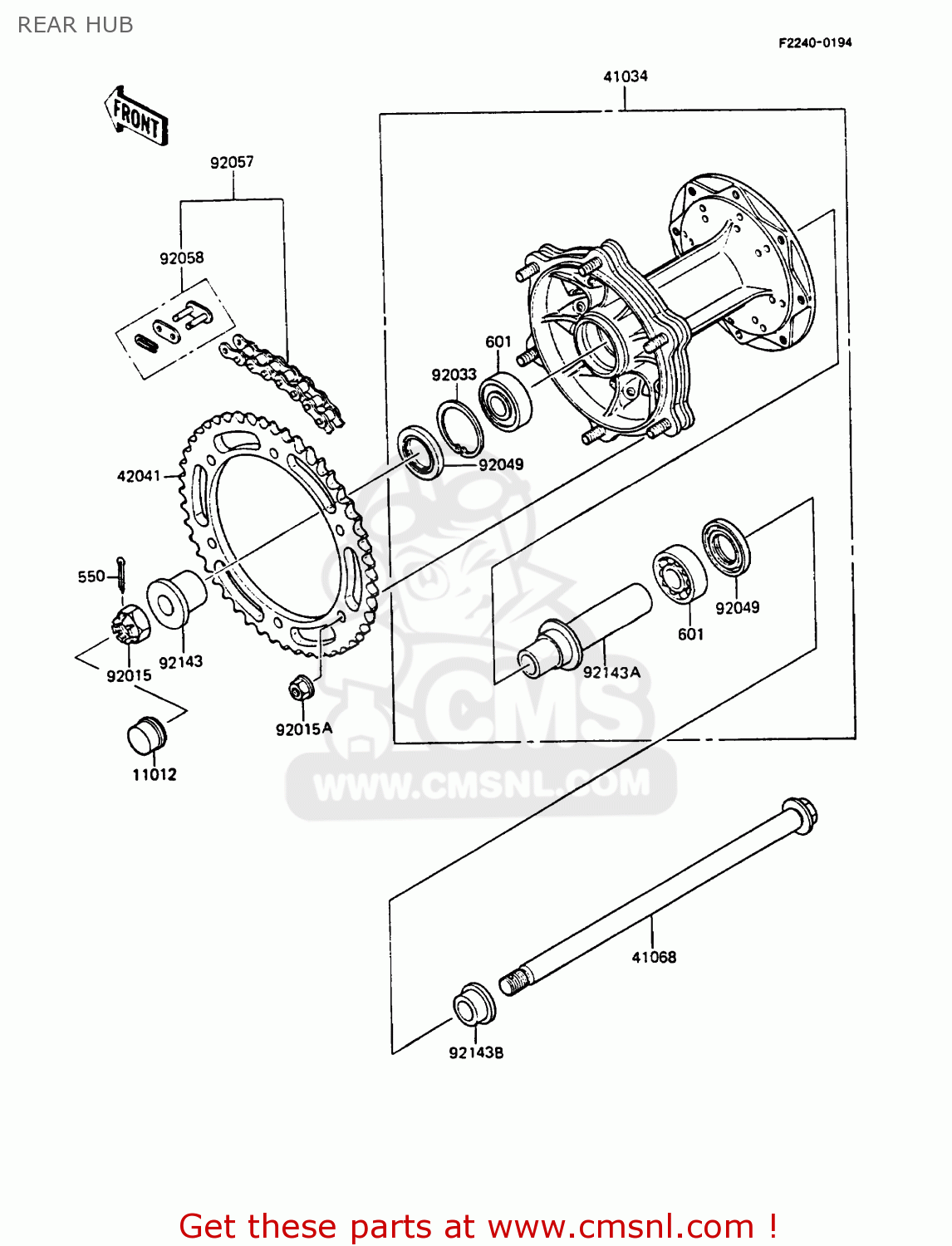

Rear hub diagram KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD

prices are in EUR

ref

part #

description

quantity

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6302U
ref: 601

BEARING-BALL

€ 29.00

41034

410341149
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 561.00

41068

410681228
ref: 41068

AXLE,RR

€ 47.50

42041

420411244
ref: 42041

SPROCKET-HUB,48T

€ 26.00

92015

42045020
ref: 92015

NUT,14MM

€ 6.50

92015A

920151668
ref: 92015A

NUT

€ 3.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491203
ref: 92049

SEAL-OIL,BJNC2 25425

€ 12.00

92057

920571217
ref: 92057

CHAIN,DRIVE,EK428 SH-

€ 33.50

92058

920581058
ref: 92058

JOINT-CHAIN

€ 5.50

92143

921431015
ref: 92143

COLLAR,L=28

€ 18.50

92143A

921431020
ref: 92143A

COLLAR,15.2X22X115

€ 13.00

92143B

921431021
ref: 92143B

COLLAR,L=13

€ 13.50
