FRAME

KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD

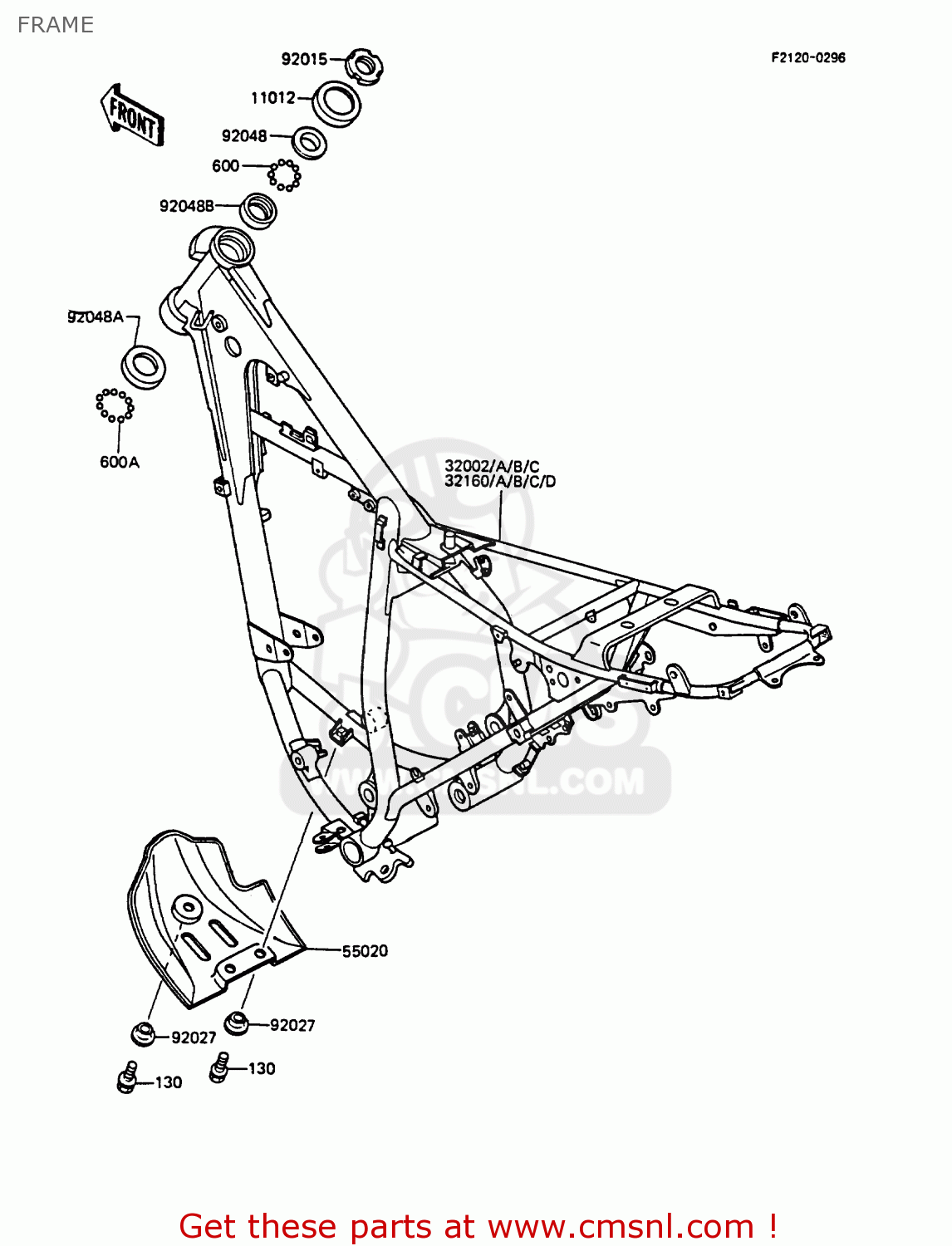

Frame diagram KMX125-A1 1986 EUROPE UK FR FG GR IT NR ST SD

prices are in EUR

ref

part #

description

quantity

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

600A

600A0800
ref: 600A

BALL-STEEL,1/4

€ 0.50

11012

46098018
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021891
ref: 32002
EUFRGRITSTUK

FRAME-COMP

€ 786.50

32002A

320021892
ref: 32002A
FGNRSD

FRAME-COMP

€ 664.00

55020

550201230
ref: 55020

GUARD,ENGINE

€ 12.50

92015

92090022
ref: 92015

NUT,STEERING LOCK,25M

€ 18.50

92027

92027122
ref: 92027

COLLAR,L=4.7

€ 5.50

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048005
ref: 92048A

RACE-STEERING BEARING

€ 11.50

92048B

92048009
ref: 92048B

RACE,STRG STM

€ 14.00
