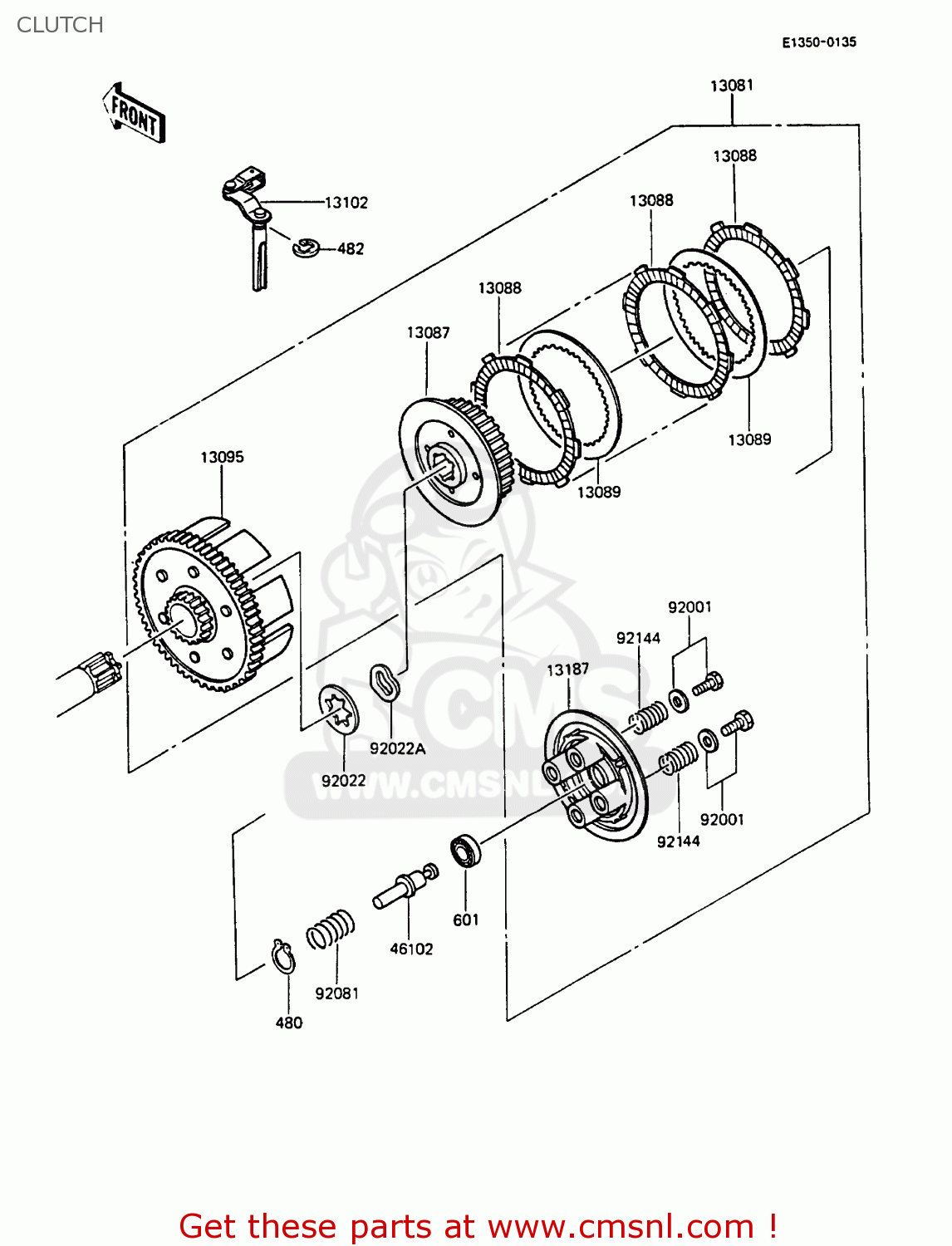

CLUTCH

ref

part #

description

quantity

480

480J2000
ref: 480

CIRCLIP-TYPE-C,20MM

€ 1.00

482

482J8000
ref: 482

CIRCLIP-TYPE-E,8MM

€ 0.50

601

601B6001
ref: 601

BALL BEARING,#6001C3

€ 15.50

13081

130811274
ref: 13081

CLUTCH-ASSY

€ 250.00

13087

130871021
ref: 13087

HUB-CLUTCH

€ 73.00

13088

130881016
ref: 13088

PLATE-FRICTION (NAS)

€ 10.00

13089

130891012
ref: 13089

PLATE-CLUTCH (NAS)

€ 8.00

13095

130951179
ref: 13095

HOUSING-COMP-CLUTCH

€ 358.00

13102

131021082
ref: 13102

RELEASE-COMP-CLUTCH

€ 37.00

13187

131871013
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 32.00

46102

461021049
ref: 46102

ROD,CLUTCH

€ 15.00

92001

920011791
ref: 92001

BOLT,6X20,W/WASHER

€ 2.00

92022

920221790
ref: 92022

WASHER,TOOTHED

€ 3.50

92022A

920221791
ref: 92022A

WASHER,WAVE,20.7X29.1

€ 3.50

92081

920811207
ref: 92081

SPRING,TENSIONER

€ 2.50

92144

920811992
ref: 92144

SPRING,CLUTCH

€ 6.50
