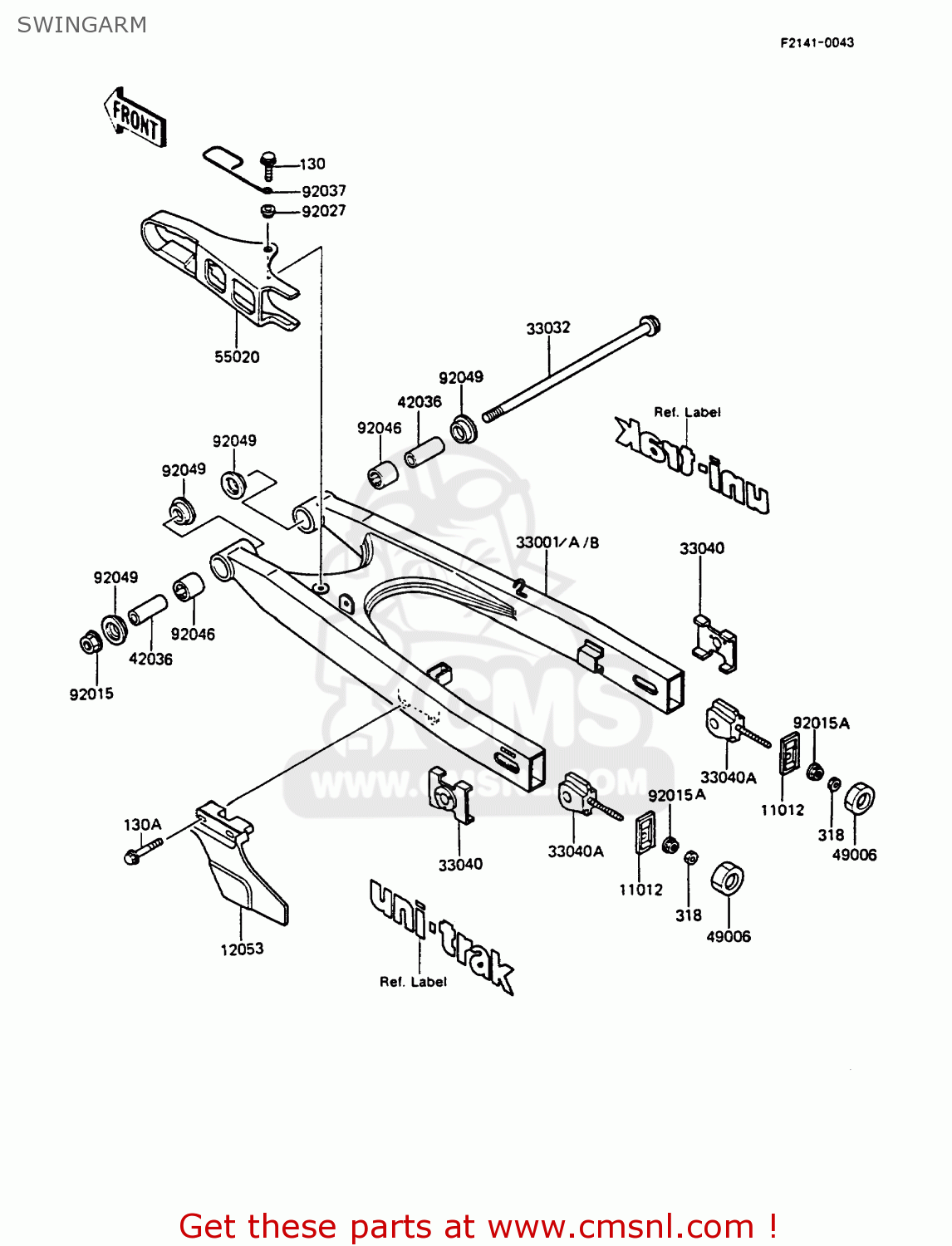

SWINGARM

ref

part #

description

quantity

130

130D0616
ref: 130

BOLT-FLANGED

€ 0.50

130A

130H0640
ref: 130A

BOLT-FLANGED

€ 0.50

318

318G0800
ref: 318

NUT-HEX-SMALL,8MM

€ 1.00

11012

110121529
ref: 11012

CAP,CHAIN ADJUSTER

€ 5.00

12053

120531104
ref: 12053

GUIDE-CHAIN,RR

€ 46.00

33001

330011270P1
ref: 33001

ARM-COMP-SWING,SILVER

€ 344.00

33032

330321132
ref: 33032

SHAFT-SWING ARM

€ 30.50

33040

330401071
ref: 33040

ADJUSTER-CHAIN,OUTSID

€ 9.00

33040A

330401072
ref: 33040A

ADJUSTER-CHAIN,INSIDE

€ 25.50

42036

420361216
ref: 42036

SLEEVE,15.1X20X52

€ 17.00

55020

550201232
ref: 55020

GUARD,CHAIN

€ 45.00

92015

920151459
ref: 92015

NUT,14MM

€ 6.50

92015A

920151658
ref: 92015A

NUT,FLANGED,8MM

€ 3.00

92027

920271181
ref: 92027

COLLAR

€ 5.00

92037

920371775
ref: 92037

CLAMP,HOSE

€ 3.50

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50
