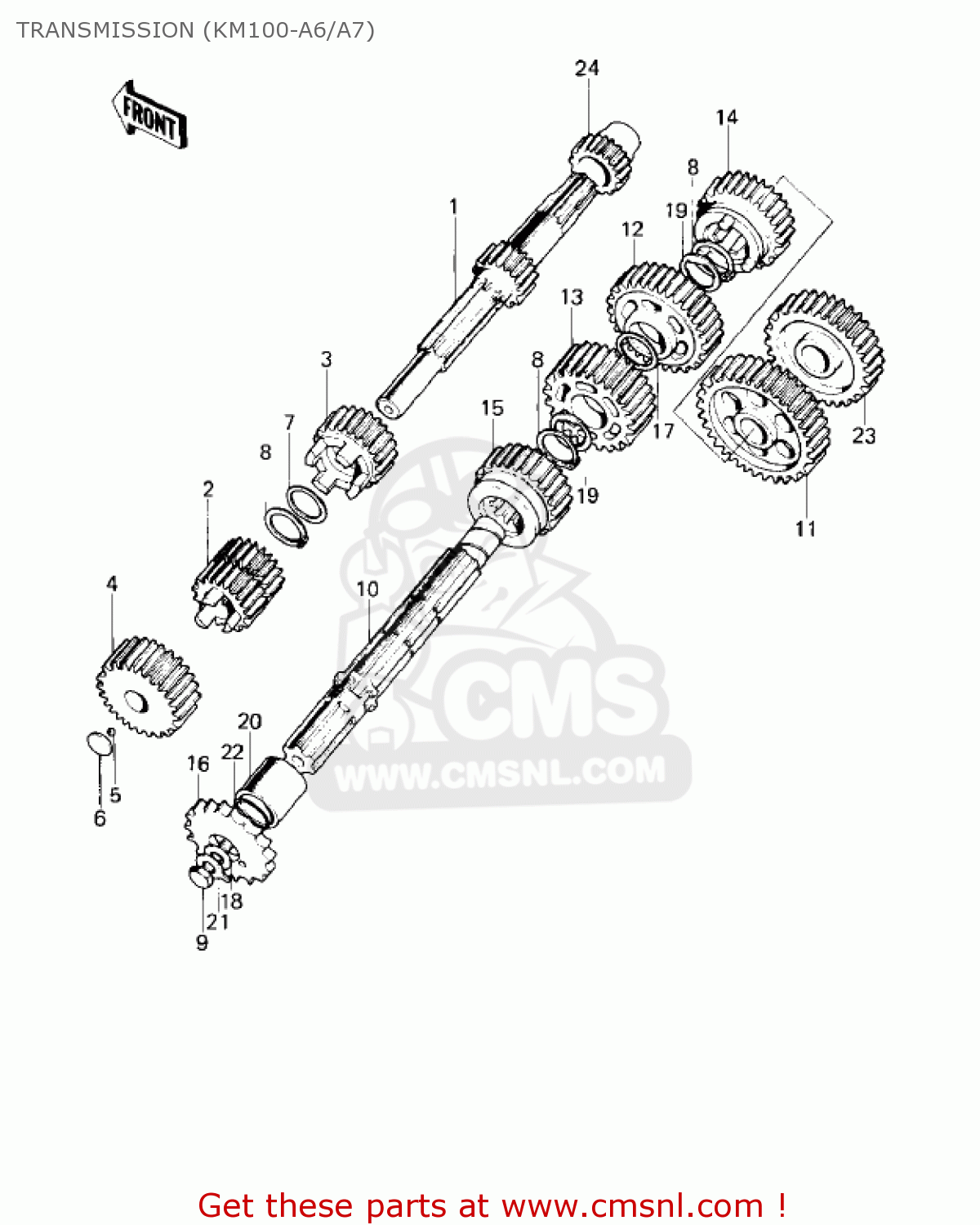

TRANSMISSION (KM100-A6/A7)

ref

part #

description

quantity

1

131271017
ref: 1

SHAFT,DRIVE

€ 155.00

2

131291052
ref: 2
2ND 17T

GEAR,INPUT 2ND&3RD,17

€ 55.00

3

131291053
ref: 3
22T

GEAR,INPUT 4TH,16T

€ 23.50

4

131291927
ref: 4
24T

GEAR, INPUT TOP 24T

€ 25.00

5

600A0700
ref: 5

BALL-STEEL,7/32

€ 2.50

6

92022115
ref: 6

WASHER,THRUST

€ 2.50

7

92022118
ref: 7
T = 1.2

WASHER,18.5X23X1.2

€ 3.00

8

92033014
ref: 8

RING-SNAP,16MM

€ 3.50

9

115G0816
ref: 9

BOLT-HEX,HEAD 8X16

€ 0.50

9

920011368
ref: 9
KM100-A7~

BOLT,UPSET,8X16

€ 2.50

10

13128021
ref: 10

SHAFT-OUTPUT

€ 160.50

11

13129010
ref: 11
35T

GEAR,OUTPUT LOW,35T

€ 66.50

12

13131008
ref: 12
30T

GEAR,OUTPUT 2ND,30T

€ 40.50

13

13133005
ref: 13
36T

GEAR,OUTPUT 3RD,26T

€ 46.50

14

131291708
ref: 14
24T

GEAR,OUTPUT 4TH,24T

€ 70.00

15

13137012
ref: 15
24T

TOP GEAR-OUTPUT SHAFT

€ 28.50

16

131441058
ref: 16

SPROCKET-OUTPUT,14T

€ 20.00

16

13144053
ref: 16
OFF ROAD USE ONLY

SPROCKET-OUTPUT,13T

€ 30.00

16

13144054
ref: 16
OFF ROAD USE ONLY

SPROCKET-OUTPUT,15T

€ 30.00

17

92022146
ref: 17
T = 1.6 M/M

WASHER,THRUST,18.5X23

€ 4.50

18

92022266
ref: 18

WASHER,T=2.3

€ 3.50

19

92024030
ref: 19

WASHER,TOOTHED,18.5X2

€ 4.00

20

920271595
ref: 20

COLLAR,ENGINE SPROCKE

€ 12.50

21

92030012
ref: 21

WASHER,CLAW,8X22X1.2

€ 3.50

22

92055022
ref: 22

'O' RING

€ 4.00

23

13073004
ref: 23
30T

GEAR-SPUR,KICKSTARTER

€ 55.50

24

13075004
ref: 24
16T

GEAR-SPUR,KICKSTARTER

€ 40.50

all assemblies
