METERS/IGNITION SWITCH
KM100-A1 1976 USA CANADA / MPH KPH

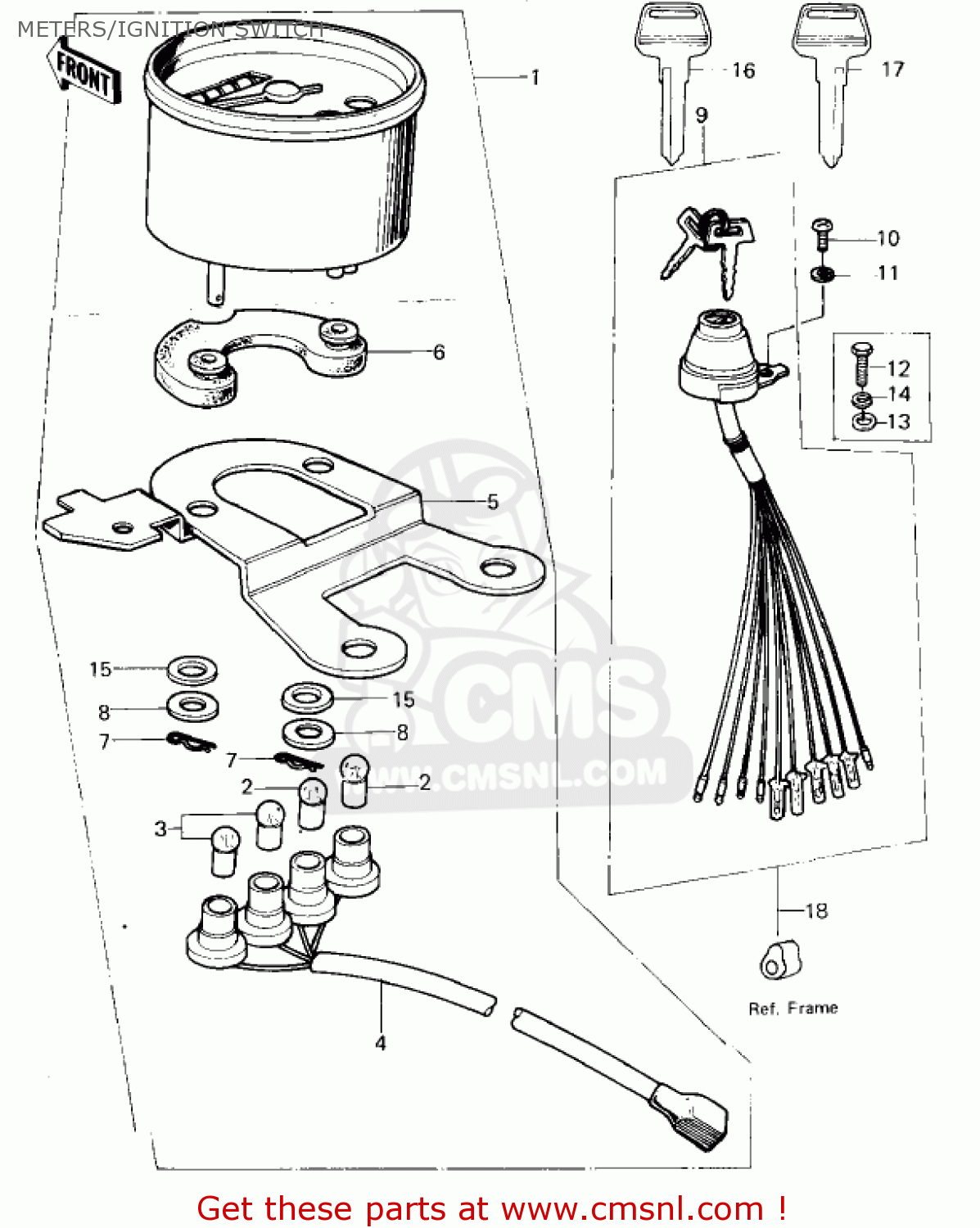

Meters/ignition switch diagram KM100-A1 1976 USA CANADA / MPH KPH
METERS/IGNITION SWITCH KM100-A1 1976 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
25001090
ref: 1
KM100-A1/A2/A3
SPEEDOMETER ASSEMBLY,MPH
€ 256.00
1
250011107
ref: 1
KM100-A3A/A4
SPEEDOMETER ASSEMBLY,MPH
€ 88.50
1
250011107
ref: 1
KM100-A6~
SPEEDOMETER ASSEMBLY,MPH
€ 88.50
1
25001106
ref: 1
KM100-A1/A2/A3
SPEEDOMETER ASSEMBLY,KPH
€ 0.00
1
250011066
ref: 1
KM100-A4~
SPEEDOMETER ASSEMBLY,KPH
€ 0.00
2
92069053
ref: 2
BULB 6V 3W
€ 3.00
3
92069024
ref: 3
BULB 6V 1.5W
€ 3.00
4
25011035
ref: 4
SOCKET,SPEEDOMETER
€ 14.50
5
25008040
ref: 5
KM100-A1/A2/A3
SPEEDOMETER BRACKET
€ 41.00
5
250081010
ref: 5
KM100-A3A~
SPEEDOMETER BRACKET
€ 16.00
6
25019017
ref: 6
DAMPER RUBBER,METER
€ 3.00
7
92041006
ref: 7
COTTER
€ 2.00
8
92022263
ref: 8
WASHER,PLAIN,6MM
€ 1.50
9
27005074
ref: 9
KM100-A1/A2/A3
IGNITION SWITCH ASSEMBLY
€ 190.50
9
27005081
ref: 9
KM100-A1/A2/A3
IGNITION SWITCH ASSEMBLY
€ 113.50
9
270051006
ref: 9
KM100-A3A
IGNITION SWITCH ASSEMBLY
€ 48.50
9
270051013
ref: 9
KM100-A4~
IGNITION SWITCH ASSEMBLY
€ 64.00
10
220B0612
ref: 10
KM100-A1/A2/A3
SCREW-PAN HEAD,6X12
€ 1.00
11
461F0600
ref: 11
KM100-A1/A2/A3
WASHER-SPRING,6MM
€ 0.50
12
112B0622
ref: 12
KM100-A3A~
BOLT, 6X22
€ 2.50
13
92022024
ref: 13
KM100-A3A~
WASHER,7X16X1.2
€ 2.50
14
461F0600
ref: 14
KM100-A3A~
WASHER-SPRING,6MM
€ 0.50
15
920751104
ref: 15
DAMPER RUBBER
€ 2.50
16
270081024
ref: 16
KEY-LOCK,BLANK
€ 14.00
17
270081025
ref: 17
KEY-LOCK,BLANK
€ 14.00
18
270045087
ref: 18
WHN EXH USE 27004-50
LOCK ASSEMBLY
€ 79.00
18
270045087
ref: 18
LOCK ASSEMBLY
€ 79.00
