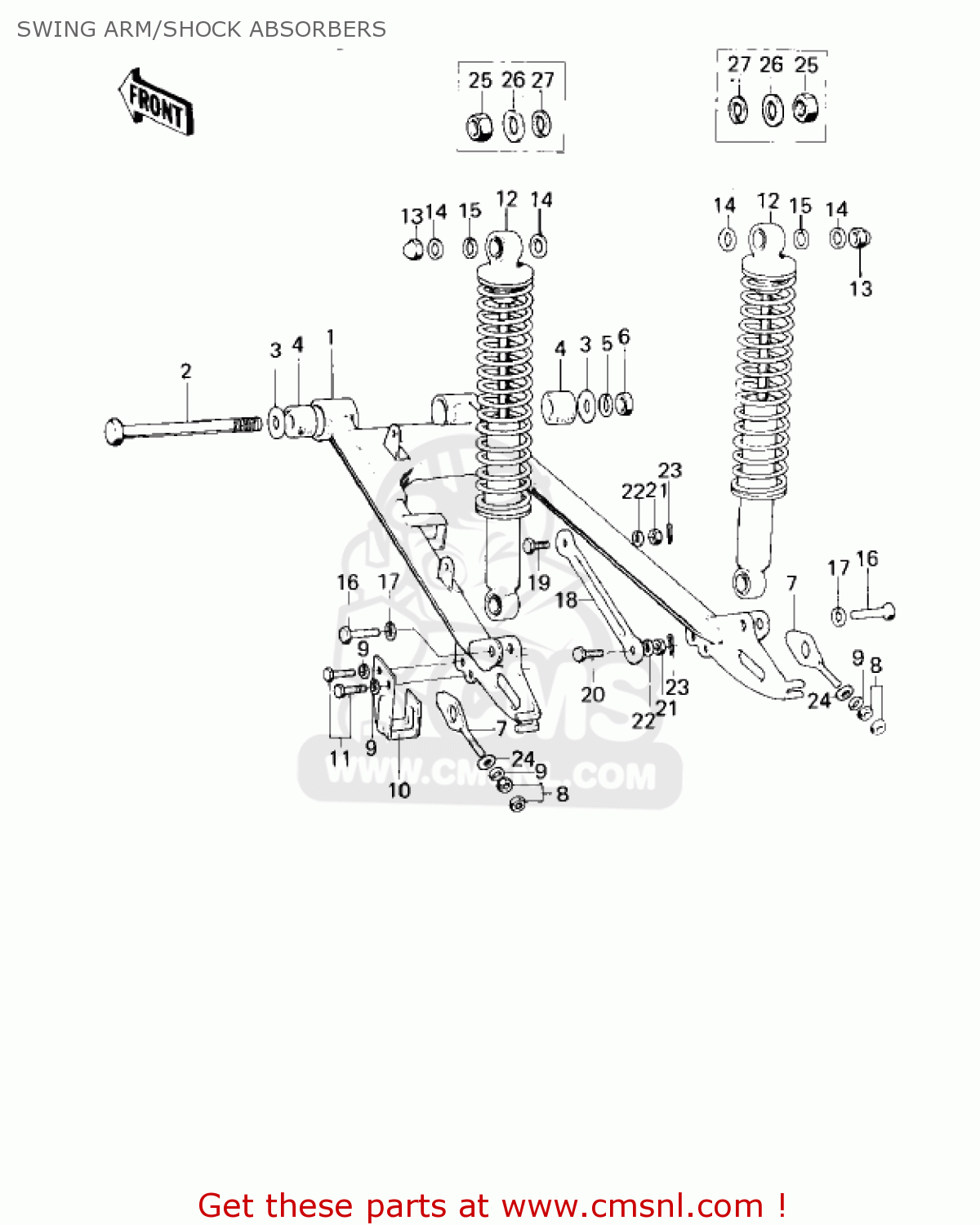

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

33001055
ref: 1
KM100-A1/A2/A3/A3A/A

ARM,SWINGING

€ 86.50

1

330011045
ref: 1
KM100-A6~

ARM,SWINGING

€ 140.50

2

33032043
ref: 2

SHAFT-SWING ARM

€ 19.50

3

410B1200
ref: 3

WASHER-PLAIN-SMALL,12

€ 0.50

4

92092005
ref: 4

BUSH-SWING ARM SHAFT

€ 9.50

5

461F1200
ref: 5

WASHER-SPRING,12MM

€ 0.50

6

314B1200
ref: 6

NUT-HEX-FINE

€ 1.00

7

33040008
ref: 7

ADJUSTER-CHAIN

€ 7.00

8

311B0600
ref: 8

NUT,6MM

€ 0.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

55020012
ref: 10

GUARD,CHAIN

€ 7.00

11

112B0614
ref: 11

BOLT-UPSET 6X14

€ 2.50

12

45014100
ref: 12
KM100-A1/A2

SHOCK ABSORBER,REAR

€ 60.00

12

450141019
ref: 12
KM100-A3/A3A/A4

SHOCK ABSORBER,REAR

€ 95.50

12

450141214
ref: 12
KM100-A6~

SHOCKABSORBER

€ 99.50

13

92020014
ref: 13
KM100-A1/A2/A3/A3A/A

NUT,CAP,12MM

€ 6.50

14

410B1200
ref: 14
KM100-A1/A2/A3/A3A/A

WASHER-PLAIN-SMALL,12

€ 0.50

15

461F1200
ref: 15
KM100-A1/A2/A3/A3A/A

WASHER-SPRING,12MM

€ 0.50

16

113N1028
ref: 16
KM100-A1/A2/A3/A3A/A

BOLT,HEX HEAD,10X28

€ 2.50

16

112G1030
ref: 16
KM100-A6~

BOLT UPSET

€ 4.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

43007037
ref: 18

ROD-TORQUE

€ 7.50

19

92003017
ref: 19

BOLT-TRQ LINK 10X25

€ 3.50

20

92003003
ref: 20

BOLT-HEX HEAD,10X32

€ 4.00

21

314B1000
ref: 21

NUT,10MM

€ 0.50

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

550D2015
ref: 23
KM100-A1/A2/A3/A3A

PIN-COTTER,2.0X15

€ 1.00

23

92041005
ref: 23
KM100-A4~

COTTER PIN

€ 1.00

24

92022116
ref: 24
KM100-A3~

WASHER-PLAIN

€ 2.50

25

315B1200
ref: 25
KM100-A6~

NUT,12MM

€ 0.50

26

410B1200
ref: 26
KM100-A6~

WASHER-PLAIN-SMALL,12

€ 0.50

27

461F1200
ref: 27
KM100-A6~

WASHER-SPRING,12MM

€ 0.50

all assemblies
