FRAME/FRAME FITTINGS
KM100-A1 1976 USA CANADA / MPH KPH

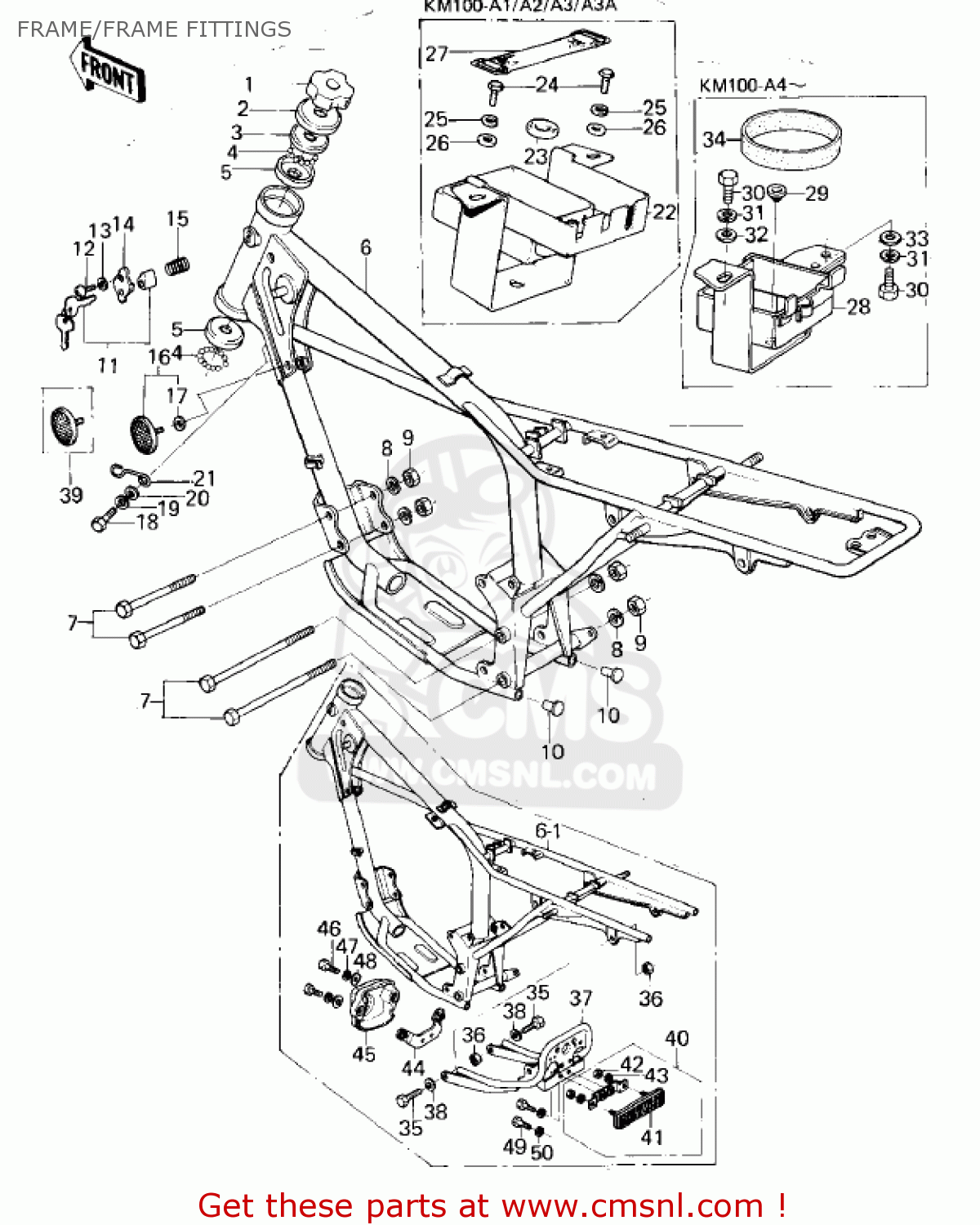

Frame/frame fittings diagram KM100-A1 1976 USA CANADA / MPH KPH
FRAME/FRAME FITTINGS KM100-A1 1976 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
92090006
ref: 1
NUT-STEERING STEM LCK
€ 10.50
2
46098004
ref: 2
CAP-STEERING STEM
€ 4.00
3
92047005
ref: 3
CONE-UPPER BEARING
€ 10.50
4
600A0600
ref: 4
BALL-STEEL,3/16
€ 0.50
5
92048004
ref: 5
RACE-BEARING
€ 10.00
6
32002109
ref: 6
KM100-A1/A2/A3/A3A
FRAME
€ 409.00
6
320021043
ref: 6
KM100-A4
FRAME
€ 382.00
6-1
320021110
ref: 6-1
KM100-A6~
FRAME
€ 407.50
7
113810115
ref: 7
UNAVAILABLE IN PRICE BOOK
€ 0.00
8
461F1000
ref: 8
WASHER-SPRING,10MM
€ 0.50
9
314B1000
ref: 9
NUT,10MM
€ 0.50
10
32112001
ref: 10
PLUG
€ 2.50
11
27016042
ref: 11
LOCK-ASSY,STEERING
€ 36.00
12
92008007
ref: 12
SCREW-TAPPING
€ 2.50
13
92097003
ref: 13
WASHER
€ 2.50
14
110121134
ref: 14
CAP,STEERING LOCK
€ 4.50
15
27032001
ref: 15
SPRING-STEERING LOCK
€ 3.50
16
28001026
ref: 16
KM100-A1/A2/A3/A3A/A
REFLECTOR,REFLEX
€ 12.50
17
92094011
ref: 17
DAMPER,REFLECTOR
€ 3.00
18
112G0612
ref: 18
BOLT-UPSET
€ 2.50
19
461F0600
ref: 19
WASHER-SPRING,6MM
€ 0.50
20
410B0600
ref: 20
WASHER-PLAIN-SMALL,6M
€ 0.50
21
92037117
ref: 21
CLAMP,CABLE
€ 2.00
22
32097028
ref: 22
KM100-A1/A2/A3/A3A
CASE,BATTERY
€ 12.00
23
92075078
ref: 23
KM100-A1/A2/A3/A3A
DAMPER,RUBBER
€ 2.50
24
11080612
ref: 24
KM100-A1/A2/A3/A3A
UNAVAILABLE IN PRICE BOOK
€ 0.00
25
461F0600
ref: 25
KM100-A1/A2/A3/A3A
WASHER-SPRING,6MM
€ 0.50
26
411B0600
ref: 26
KM100-A1/A2/A3/A3A
WASHER-PLAIN,6MM
€ 0.50
27
92072039
ref: 27
KM100-A1/A2/A3/A3A
BAND,L=54MM
€ 12.50
28
320971010
ref: 28
KM100-A4~
CASE,BATTERY
€ 10.00
29
92075078
ref: 29
KM100-A4~
DAMPER,RUBBER
€ 2.50
30
110B0614
ref: 30
KM100-A4~
BOLT-HEX HEAD,6X14
€ 2.50
31
461F0600
ref: 31
KM100-A4~
WASHER-SPRING,6MM
€ 0.50
32
411B0600
ref: 32
KM100-A4~
WASHER-PLAIN,6MM
€ 0.50
33
92022125
ref: 33
KM100-A4~
WASHER,6.5X20X1.6
€ 1.00
34
32103023
ref: 34
KM100-A4~
DAMPER,BATTERY BOTTOM
€ 2.50
35
113B1228
ref: 35
KM100-A6~
BOLT-SMALL-FINE
€ 3.00
36
315B1200
ref: 36
KM100-A6~
NUT,12MM
€ 0.50
37
391371006
ref: 37
KM100-A6~
STAY,RR
€ 76.50
38
461F1200
ref: 38
KM100-A6~
WASHER-SPRING,12MM
€ 0.50
39
28012016
ref: 39
KM100-A6~
REFLECTOR REFLEX
€ 16.00
40
280011011
ref: 40
KM100-A6~
REFLECTOR ASSEMBLY,REFLEX
€ 8.50
41
280121005
ref: 41
KM100-A6~
REFLECTOR-REFLEX,RR
€ 16.50
42
311B0500
ref: 42
KM100-A6~
NUT-HEX
€ 0.50
43
461F0500
ref: 43
KM100-A6~
WASHER-SPRING,5MM
€ 0.50
44
110341740
ref: 44
KM100-A6~
BRACKET,TAIL LAMP COV
€ 7.50
45
140251169
ref: 45
KM100-A6~
COVER,TAIL LAMP
€ 12.50
46
112B0614
ref: 46
KM100-A6~
BOLT-UPSET 6X14
€ 2.50
47
461F0600
ref: 47
KM100-A6~
WASHER-SPRING,6MM
€ 0.50
48
92022125
ref: 48
KM100-A6~
WASHER,6.5X20X1.6
€ 1.00
49
220B0612
ref: 49
KM100-A6~
SCREW-PAN HEAD,6X12
€ 1.00
50
461F0600
ref: 50
KM100-A6~
WASHER-SPRING,6MM
€ 0.50
