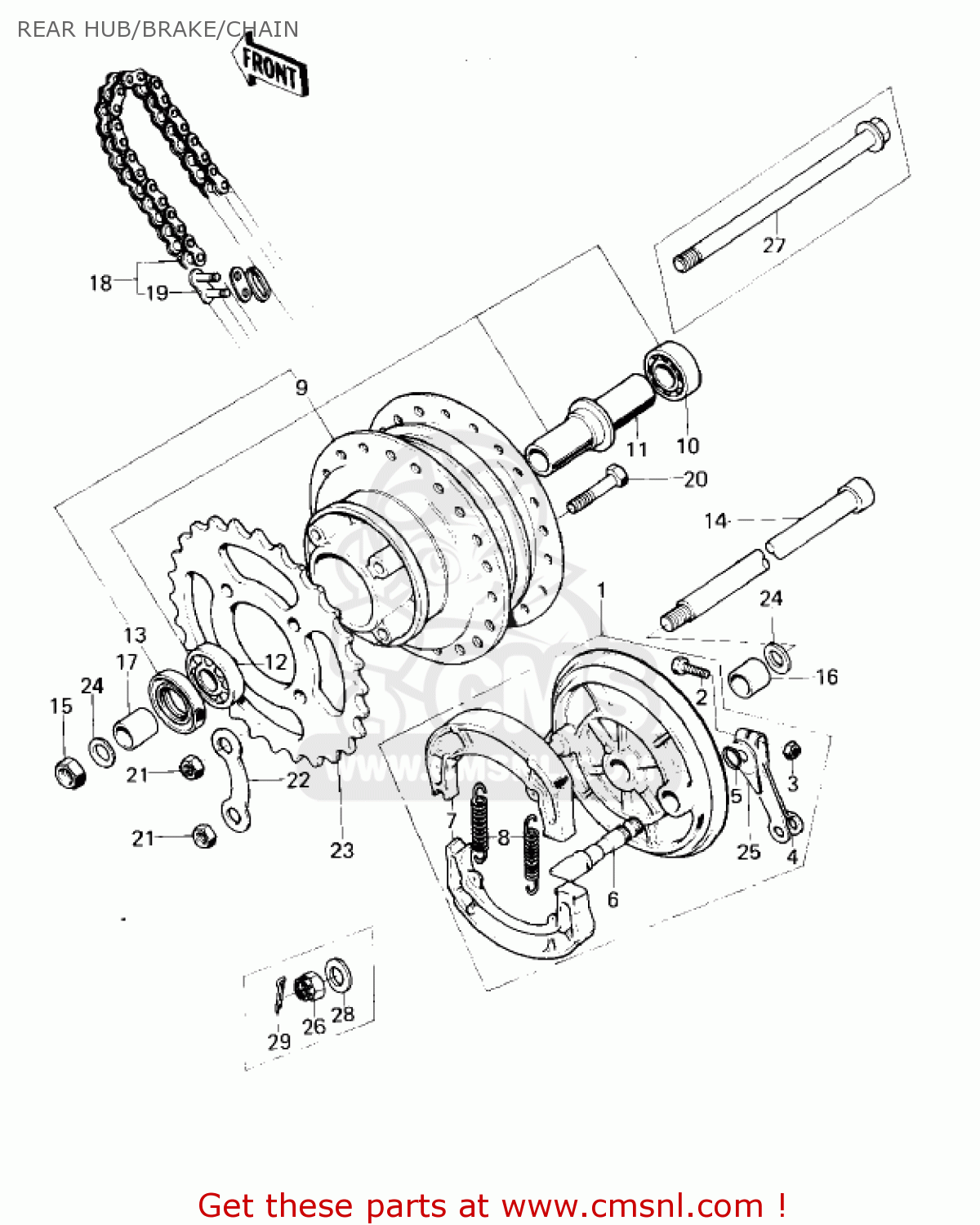

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

4200606380
ref: 1
BUFF FINISH

PANEL ASSY,REAR BRAKE

€ 174.50

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

3

41072007
ref: 3

NUT,6MM

€ 2.50

4

42029027
ref: 4

LEVER-BRAKE CAM

€ 16.50

5

92055004
ref: 5

RING-O,BRAKE CAM

€ 3.00

6

42026018
ref: 6

CAM-BRAKE

€ 19.50

7

410481085
ref: 7

SHOE-BRAKE (NAS)

€ 13.00

8

920811766
ref: 8

SPRING,BRAKE SHOE

€ 5.50

9

41034100280
ref: 9
BUFF FINISH

DRUM ASSY,RR BRK,BUFF

€ 264.50

9

41034100280
ref: 9
BUFF FINISH

DRUM ASSY,RR BRK,BUFF

€ 264.50

10

601B6301Z
ref: 10

BEARING-BALL,#6301ZC3

€ 15.00

11

42010003
ref: 11

COLLAR,L=85

€ 6.50

12

601B6301
ref: 12

BEARING-BALL,#6301C3

€ 13.00

13

92052001
ref: 13

OIL SEAL-RR BRK DRUM

€ 6.50

14

410681091
ref: 14

AXLE,12X206

€ 24.00

15

314B1200
ref: 15
KM100-A1/A2/A3/A3A/A

NUT-HEX-FINE

€ 1.00

16

42032002
ref: 16
L=31 M/M

COLLAR,12.2X22X30.5

€ 9.00

17

42032044
ref: 17
L=14 M/M

COLLAR,L=14

€ 6.00

18

920571089
ref: 18
96 LINKS

CHAIN,DRIVE,EK428 96L

€ 19.00

19

920581014
ref: 19

JOINT-CHAIN,EK428-G

€ 3.50

20

92001021
ref: 20

BOLT-REAR SPROCKET

€ 3.50

21

311B0800
ref: 21

NUT,8MM

€ 0.50

22

92088003
ref: 22

WASHER,SPROCKET LOCK

€ 3.00

23

42041022
ref: 23

REAR SPROCKET 36T

€ 34.00

23

42041019
ref: 23
OFF-ROAD USE ONLY

REAR SPROCKET 34T

€ 39.00

24

411B1200
ref: 24
KM100-A1/A2/A3/A3A/A

WASHER-PLAIN,12MM

€ 0.50

25

41085003
ref: 25

INDICATOR,BRAKE SHOE

€ 9.00

26

321B1200
ref: 26
KM100-A6~

NUT-CASTLE

€ 2.50

27

410681091
ref: 27
KM100-A6~

AXLE,12X206

€ 24.00

28

411B1200
ref: 28
KM100-A6~

WASHER-PLAIN,12MM

€ 0.50

29

550D3025
ref: 29
KM100-A6~

PIN-COTTER,3.0X25

€ 0.50

all assemblies
