CARBURETOR (KM100-A6/A7)

KM100-A1 1976 USA CANADA / MPH KPH

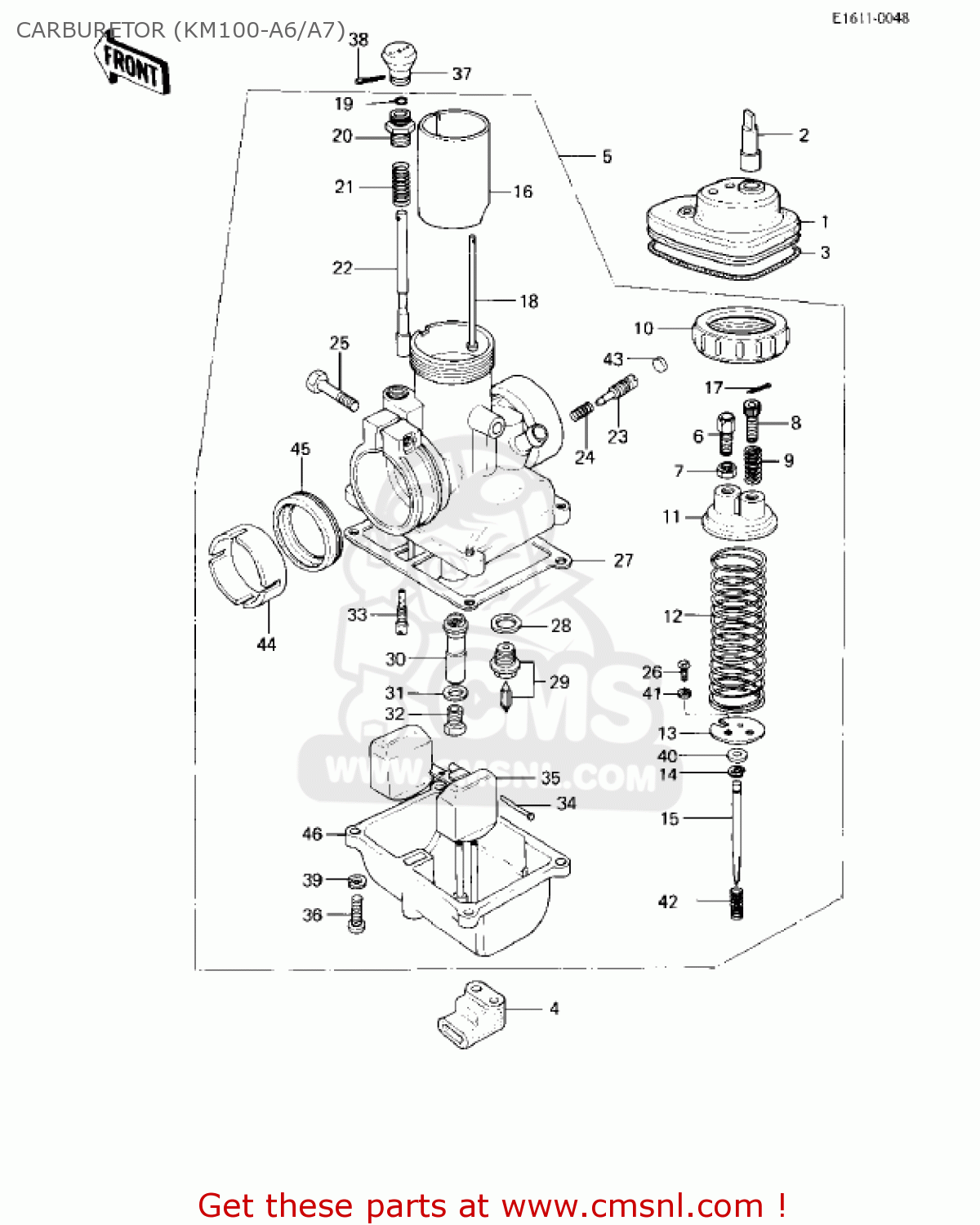

Carburetor (km100-a6/a7) diagram KM100-A1 1976 USA CANADA / MPH KPH

CARBURETOR (KM100-A6/A7) KM100-A1 1976 USA CANADA / MPH KPH
CARBURETOR (KM100-A6/A7) KM100-A1 1976 USA CANADA / MPH KPH
CARBURETOR (KM100-A6/A7) KM100-A1 1976 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
14038035
ref: 1
BOOT,CARBURETOR
14038035
€ 9.50
2
16147001
ref: 2
PLUG,12X40
16147001
€ 3.00
3
92081047
ref: 3
SPRING,COIL
92081047
€ 7.50
4
920711024
ref: 4
OVERFLOW GROMMET
920711024
€ 7.50
5
160011185
ref: 5
CARBURETOR ASSEMBLY
€ 88.00
6
160021004
ref: 6
CABLE ADJUSTER
€ 4.00
7
920151092
ref: 7
CABLE ADJUSTER LOCK NUT
€ 2.50
8
160211021
ref: 8
THROTTLE ADJUSTER
160211021
€ 8.50
9
920811232
ref: 9
THROTTLE ADJUSTING SPRING
€ 1.50
10
160041007
ref: 10
MIXING CHAMBER CAP
€ 5.50
11
160051010
ref: 11
MIXING CHAMBER TOP
€ 6.50
12
920811234
ref: 12
THROTTLE VALVE SPRING
€ 2.50
13
131691223
ref: 13
THROTTLE VALVE SPRING SEAT
€ 5.50
14
920371167
ref: 14
CIRCLIP
€ 3.00
15
160091043
ref: 15
JET,NEEDLE,#4D21
160091043
€ 26.00
16
160251036
ref: 16
THROTTLE VALVE,CA3.0
€ 60.50
17
550D1210
ref: 17
PIN-COTTER,1.2X10
550D1210
€ 1.50
18
461021014
ref: 18
THROTTLE VALVE STOP ROD
€ 3.00
19
920371166
ref: 19
CLAMP
€ 1.50
20
160121007
ref: 20
STARTER PLUNGER CAP
160121007
€ 15.00
21
920811233
ref: 21
STARTER PLUNGER SPRING
920811233
€ 3.50
22
160161010
ref: 22
STARTER PLUNGER
160161010
€ 23.00
23
160141022
ref: 23
PILOT AIR ADJUSTING SCREW
€ 9.50
24
920811202
ref: 24
PILOT AIR SCREW SPRING
€ 2.50
25
920011304
ref: 25
BOLT,CARBURETOR MOUNT
€ 3.50
26
220B0306
ref: 26
SCREW-PAN-CROS
220B0306
€ 0.50
27
110091174
ref: 27
FLOAT CHAMBER GASKET
110091174
€ 8.00
28
110091160
ref: 28
GASKET,FLOAT VALVE (NAS)
110091160
€ 4.00
29
160311010
ref: 29
FLOAT VALVE ASSEMBLY
160311010
€ 44.00
30
160171043
ref: 30
JET,NEEDLE,#80
€ 16.50
31
920221167
ref: 31
WASHER,PLAIN,5.1X1.5T
€ 2.50
32
920631045
ref: 32
STD
JET,MAIN,#82
€ 8.50
32
920631065
ref: 32
OFF ROAD USE ONLY
JET,MAIN,#80
€ 12.50
32
920631066
ref: 32
JET,MAIN,#84
€ 8.00
33
920641027
ref: 33
JET,PILOT,#38
€ 10.00
34
920431066
ref: 34
PIN,FLOAT
920431066
€ 2.50
35
160311009
ref: 35
FLOAT
160311009
€ 61.00
36
220B0414
ref: 36
SCREW-PAN-CROS
220B0414
€ 2.00
37
92077022
ref: 37
KNOB,CARBURETOR
92077022
€ 7.00
38
550D1615
ref: 38
PIN-COTTER,1.6X15
550D1615
€ 1.50
39
461F0400
ref: 39
WASHER-SPRING,4MM
461F0400
€ 0.50
40
920271236
ref: 40
NEEDLE JET RING
€ 2.50
41
461F0300
ref: 41
WASHER-SPRING,3MM
461F0300
€ 0.50
42
920811203
ref: 42
NEEDLE JET SPRING
€ 2.50
43
920661051
ref: 43
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
44
160731010
ref: 44
CARBURETOR INSULATOR
€ 13.00
45
920931060
ref: 45
INSULATOR SEAL
€ 12.00
