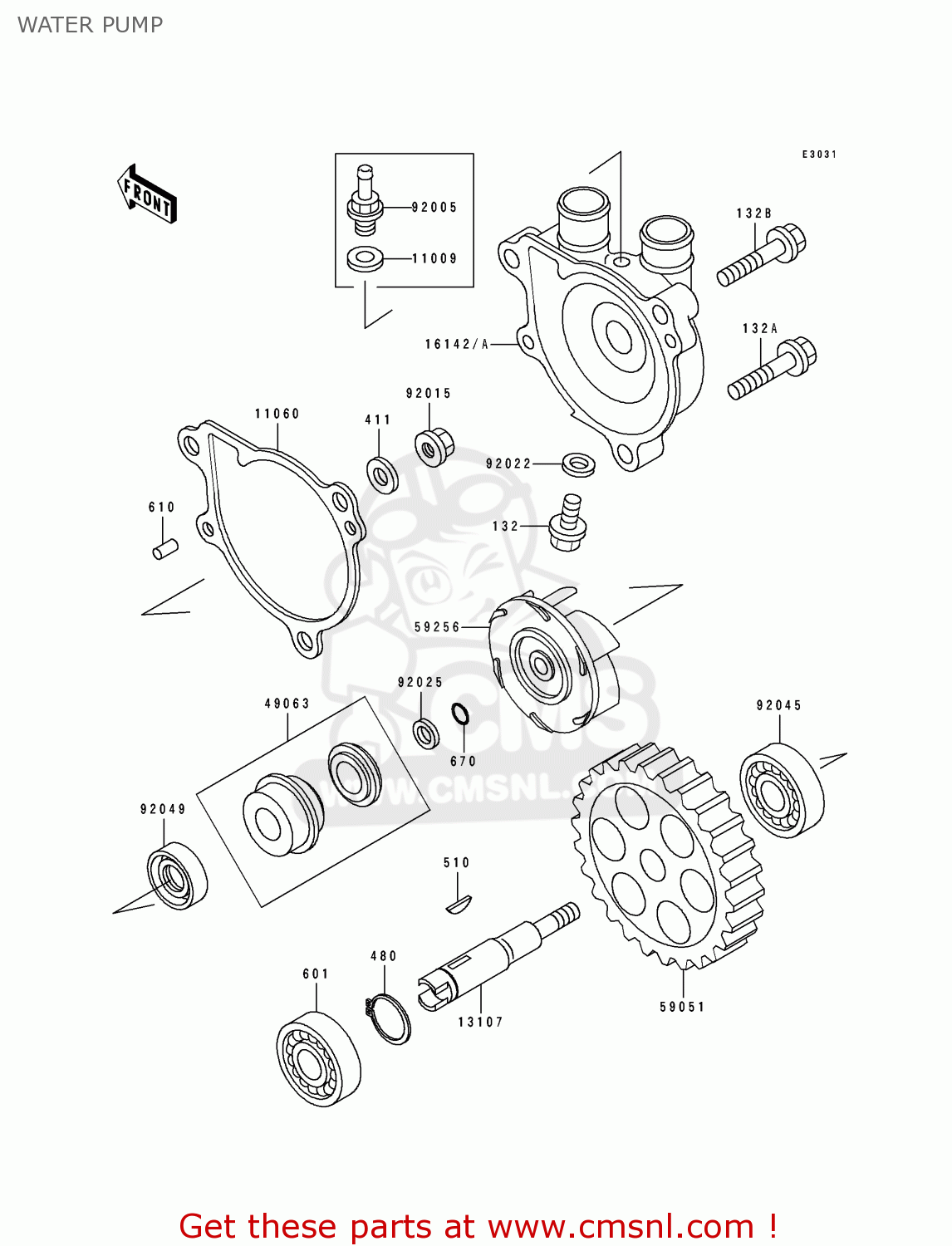

WATER PUMP

ref

part #

description

quantity

132

132Y0608
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

132A

132Y0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132Y0635
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

510

510A3100
ref: 510

KEY-WOODRUFF

€ 1.50

601

601A6001
ref: 601

BEARING-BALL

€ 9.00

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

11009

110091344
ref: 11009
ARFGFRITNLSTUK

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11060

110601114
ref: 11060

GASKET,WATER PUMP COV (NAS)

€ 5.00

13107

131071305
ref: 13107

SHAFT,WATER PUMP

€ 25.00

16142

161421122
ref: 16142
EUGRNRSP

COVER-PUMP

€ 81.00

16142A

161421126
ref: 16142A
ARFGFRITNLSTUK

COVER-PUMP

€ 67.00

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

59051

590511284
ref: 59051

GEAR-SPUR,37T

€ 112.50

59256

592561055
ref: 59256

IMPELLER

€ 20.00

92005

920051209
ref: 92005
ARFGFRITNLSTUK

FITTING

€ 32.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92025

920251503
ref: 92025

SHIM,T=0.8

€ 2.50

92045

920451246
ref: 92045

BEARING-BALL,6901

€ 29.50

92049

920491228
ref: 92049

SEAL-OIL,AC037AE0

€ 7.00
