FENDERS

KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

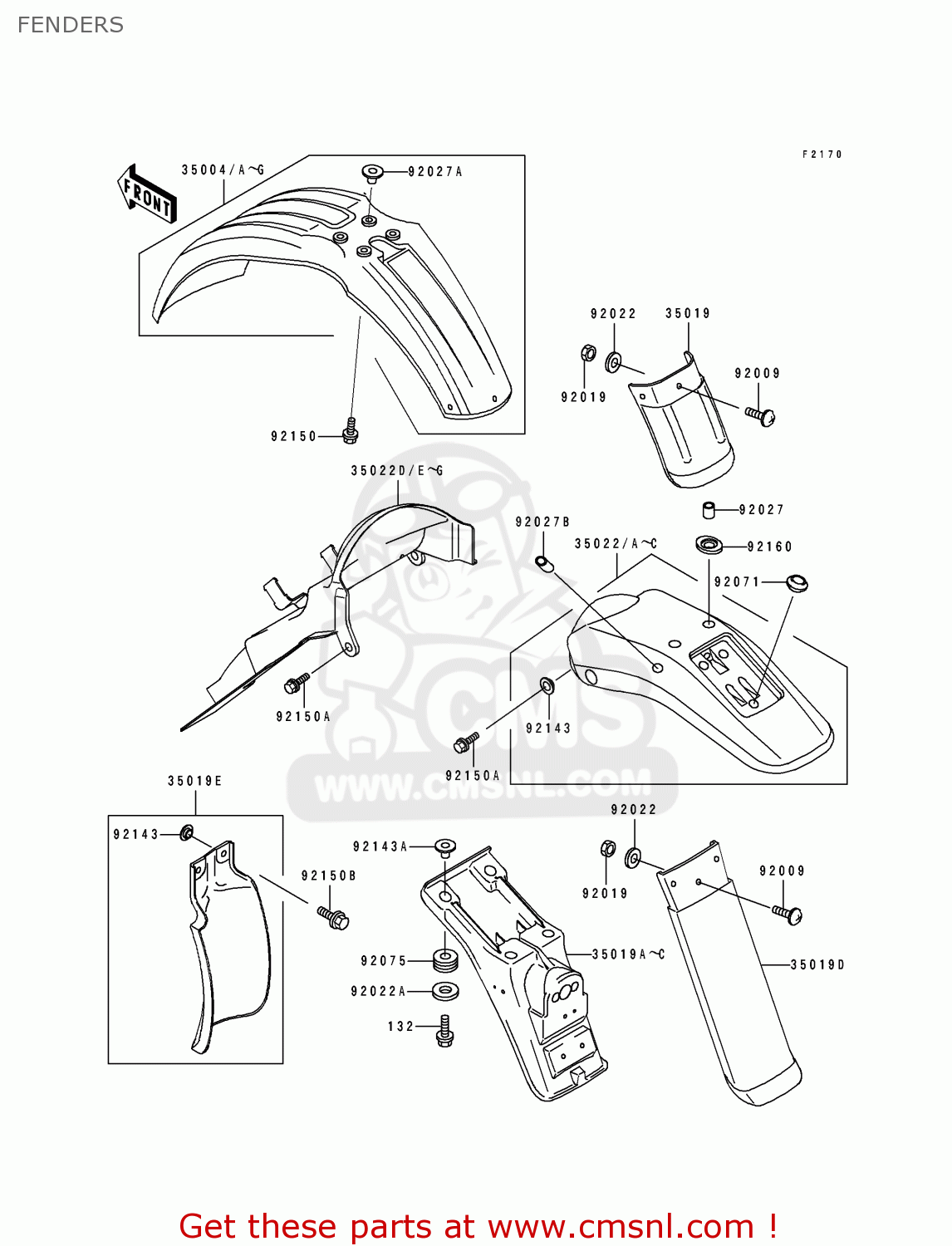

Fenders diagram KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

FENDERS KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
FENDERS KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
FENDERS KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
35004A
3500412976B
ref: 35004A
AREUITNLUK
FENDER-FRONT,S.RED
€ 51.50
35004B
3500412976C
ref: 35004B
EUFRNLSP
FENDER-FRONT,EBONY
€ 51.50
35004C
3500412976W
ref: 35004C
AREUFRITSPUK
FENDER-FRONT,L.GREEN
3500412976W
€ 59.00
35004E
3500413116B
ref: 35004E
FGGRST
FENDER-FRONT,S.RED
€ 77.00
35004F
3500413116C
ref: 35004F
FGGRST
FENDER-FRONT,EBONY
€ 77.00
35004G
3500413116W
ref: 35004G
GRNR
FENDER-FRONT,L.GREEN
€ 77.00
35019
350191002
ref: 35019
FGGRNRST
FLAP,FENDER,FR
350191002
€ 11.50
35019A
350191305
ref: 35019A
EUFRITNLSPUK
FLAP,RR FENDER
350191305
€ 43.50
35019B
350191311
ref: 35019B
FGGRNRST
FLAP,RR FENDER
€ 38.50
35019C
350191312
ref: 35019C
AR
FLAP,RR FENDER
€ 39.50
35019D
350191317
ref: 35019D
FGGRNRST
FLAP,RR FENDER
350191317
€ 14.50
35019E
350191318
ref: 35019E
FLAP,RR FENDER,FR
350191318
€ 11.50
35022A
3502212816B
ref: 35022A
AREUFGGRITNLSTUK
FENDER-COMP-REAR,RR,S
€ 41.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
132G0625
€ 3.00
35022B
3502212816C
ref: 35022B
EUFGFRGRNLSPST
FENDER-COMP-REAR,RR,E
3502212816C
€ 45.00
35022C
3502212816W
ref: 35022C
AREUFRGRITNRSPUK
FENDER-COMP-REAR,RR,L
3502212816W
€ 41.50
35022E
3502212826B
ref: 35022E
AREUFGGRITNLSTUK
FENDER-COMP-REAR,FR,S
€ 37.00
35022F
3502212826C
ref: 35022F
EUFGFRGRNLSPST
FENDER-COMP-REAR,FR,E
3502212826C
€ 35.00
35022G
3502212826W
ref: 35022G
AREUFRGRITNRSPUK
FENDER-COMP-REAR,FR,L
€ 37.00
92009
920091287
ref: 92009
FGGRNRST
SCREW,6X14
920091287
€ 1.50
92019
92019008
ref: 92019
FGGRNRST
NUT-LOCK,6MM
92019008
€ 3.00
92022
92022024
ref: 92022
FGGRNRST
WASHER,7X16X1.2
92022024
€ 2.50
92022A
920221690
ref: 92022A
WASHER
920221690
€ 2.50
92027
920271585
ref: 92027
COLLAR,METER BRACKET
€ 6.00
92027A
920271936
ref: 92027A
COLLAR,FRONT FENDER
920271936
€ 4.00
92027B
920274015
ref: 92027B
COLLAR,FR COWLING
920274015
€ 7.00
92071
92071024
ref: 92071
GROMMET
92071024
€ 3.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92143
921431196
ref: 92143
COLLAR
921431196
€ 3.00
92143A
921431353
ref: 92143A
COLLAR
921431353
€ 5.50
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501340
ref: 92150A
BOLT,6X14
921501340
€ 3.00
92150B
921501506
ref: 92150B
BOLT
921501506
€ 3.00
92160
921601391
ref: 92160
DAMPER
€ 2.50
