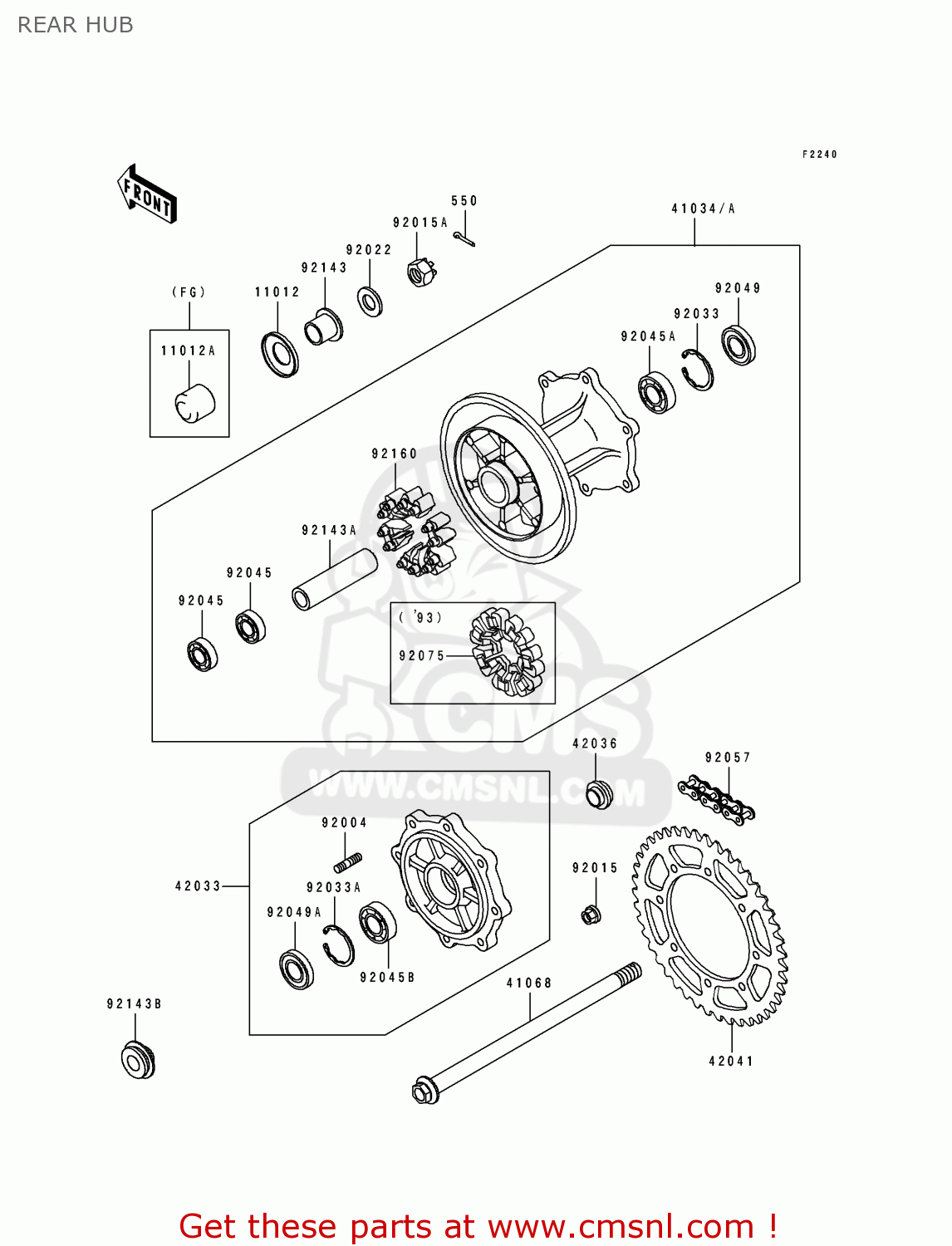

REAR HUB

ref

part #

description

quantity

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

11012

110121581
ref: 11012

CAP,AXLE

€ 4.00

11012A

110121590
ref: 11012A
FG

CAP,AXLE NUT

€ 3.50

41034A

410341234
ref: 41034A

DRUM-ASSY,REAR BRAKE

€ 465.00

41068

410681349
ref: 41068

AXLE,RR

€ 48.00

42033

420331159
ref: 42033

COUPLING-ASSY,RR HUB

€ 156.00

42036

420361301
ref: 42036

SLEEVE,RR AXLE,L=20

€ 16.00

42041

420411419
ref: 42041

SPROCKET-HUB,43T

€ 38.50

92004

920041150
ref: 92004

STUD, 8X16

€ 3.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151770
ref: 92015A

NUT,LOCK,20MM

€ 19.00

92022

920221994
ref: 92022

WASHER,20.1X34X2.0

€ 3.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92033A

920331042
ref: 92033A

CIRCLIP,47M/M

€ 4.00

92045

920451136
ref: 92045

BEARING-BALL,6904LU/2

€ 12.00

92045A

920451239
ref: 92045A

BEARING-BALL,6004X8JR

€ 30.00

92045B

920451303
ref: 92045B

BEARING-BALL

€ 35.50

92049

920491203
ref: 92049

SEAL-OIL,BJNC2 25425

€ 12.00

92049A

920491377
ref: 92049A

SEAL-OIL,BJN 32 47 5

€ 9.50

92057

920571366
ref: 92057

CHAIN,DRIVE,EK520SR-O

€ 123.50

92143

921431259
ref: 92143

COLLAR,RR AXLE,L=22

€ 26.00

92143A

921431608
ref: 92143A

COLLAR,RR BRAKE DRUM,

€ 17.50

92143B

921431609
ref: 92143B

COLLAR,RR AXLE,LH,L=2

€ 17.00

92160

921601482
ref: 92160

DAMPER,SHOCK,RR HUB

€ 7.00
