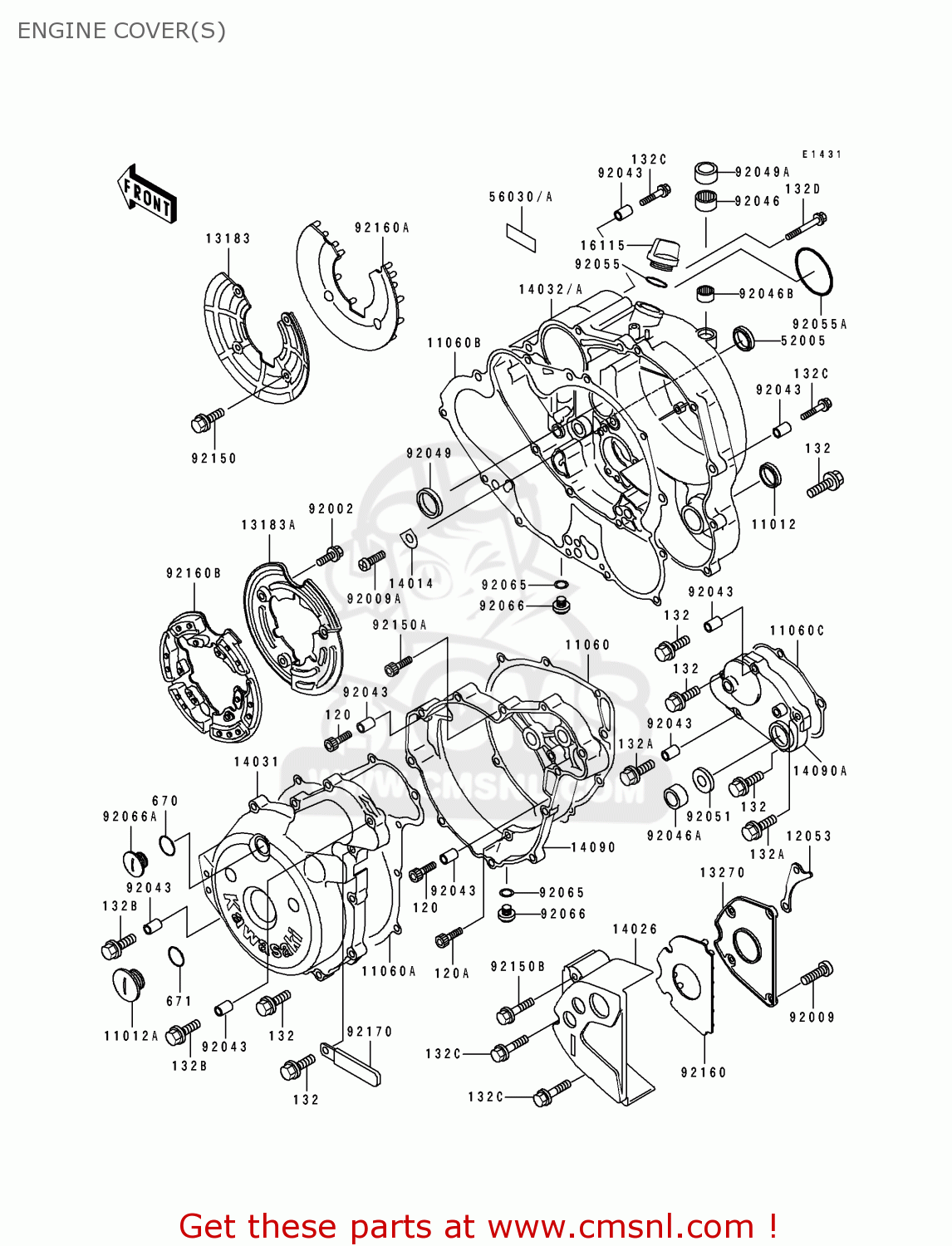

ENGINE COVER(S)

ref

part #

description

quantity

11012

110121567
ref: 11012

CAP

€ 6.50

11012A

110121616
ref: 11012A

CAP

€ 4.50

11060

110601293
ref: 11060

GASKET,GENERATOR (NAS)

€ 16.00

11060A

110601313
ref: 11060A

GASKET,GENERATOR COVE (NAS)

€ 19.00

11060B

110601363
ref: 11060B

GASKET,CLUTCH COVER (NAS)

€ 25.50

11060C

110601364
ref: 11060C

GASKET,TRANSMISSION C (NAS)

€ 3.50

12053

120531334
ref: 12053

GUIDE-CHAIN

€ 3.00

13183

131831937
ref: 13183

PLATE,CLUTCH COVER (NAS)

€ 10.50

13183A

131831988
ref: 13183A

PLATE,GENERATOR COVER

€ 9.50

13270

132701285
ref: 13270

PLATE,CHAIN COVER

€ 5.50

14014

140141116
ref: 14014

PLATE-POSITION,ROD

€ 3.00

14026

140261195
ref: 14026

COVER-CHAIN

€ 39.50

14031

140311274
ref: 14031

COVER-GENERATOR

€ 211.50

14032

140321358
ref: 14032

COVER-CLUTCH

€ 385.50

14090

140901253
ref: 14090

COVER,GENERATOR,INSID

€ 153.50

14090A

140901256
ref: 14090A

COVER,TRANSMISSION

€ 48.00

16115

161151053
ref: 16115

CAP-OIL FILLER

€ 12.50

52005

520051057
ref: 52005

GAUGE,OIL LEVEL

€ 17.50

56030

560301158
ref: 56030

LABEL,OIL

€ 2.50

92002

920021944
ref: 92002

BOLT,6X8

€ 3.00

92009

920091155
ref: 92009

SCREW,TAPPING,4X8

€ 2.00

92009A

920091563
ref: 92009A

SCREW,6X10

€ 2.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92046

920461010
ref: 92046

BEARING-NEEDLE,HK1210

€ 17.00

92046A

920461148
ref: 92046A

BEARING-NEEDLE,HK1312

€ 19.50

92046B

920461217
ref: 92046B

BEARING-NEEDLE,6BTM10

€ 18.00

92049

920491158
ref: 92049

SEAL-OIL,SCY 15X30X7

€ 16.50

92049A

920491271
ref: 92049A

SEAL, OIL

€ 7.00

92051

92051005A
ref: 92051

OIL SEAL,TB13225.5

€ 5.50

92055

92055012
ref: 92055

'O' RING 18MM

€ 1.00

92055A

920551221
ref: 92055A

RING-O,62.6X66X3.1

€ 6.00

92065

92065073
ref: 92065

GASKET,12.5X18X1,DRAI (NAS)

€ 2.50

92066

920661222
ref: 92066

PLUG,12X10

€ 8.00

92066A

920661380
ref: 92066A

PLUG,DRAIN

€ 3.50

92150

921501406
ref: 92150

BOLT

€ 2.00

92150A

921501654
ref: 92150A

BOLT

€ 3.00

92150B

921501830
ref: 92150B

BOLT,6X40

€ 3.50

92160

921601389
ref: 92160

DAMPER,CHAIN COVER

€ 10.00

120

120P0635
ref: 120

BOLT,SOCKET,6X35

€ 1.50

120A

120Z0625
ref: 120A

BOLT-SOCKET,6X25

€ 3.00

132

132Y0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132Y0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132Y0635
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132Y0640
ref: 132C

BOLT-FLANGED-SMALL

€ 3.50

132D

132Y0680
ref: 132D

BOLT-FLANGED-SMALL

€ 3.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00

671

671B2540
ref: 671

O RING,40MM

€ 4.00

92160A

921601390
ref: 92160A

DAMPER,CLUTCH COVER

€ 26.50

92160B

921601411
ref: 92160B

DAMPER,GENERATOR COVE

€ 24.00

92170

921701514
ref: 92170

CLAMP

€ 2.50

all assemblies
