TAILLIGHT(S)

KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

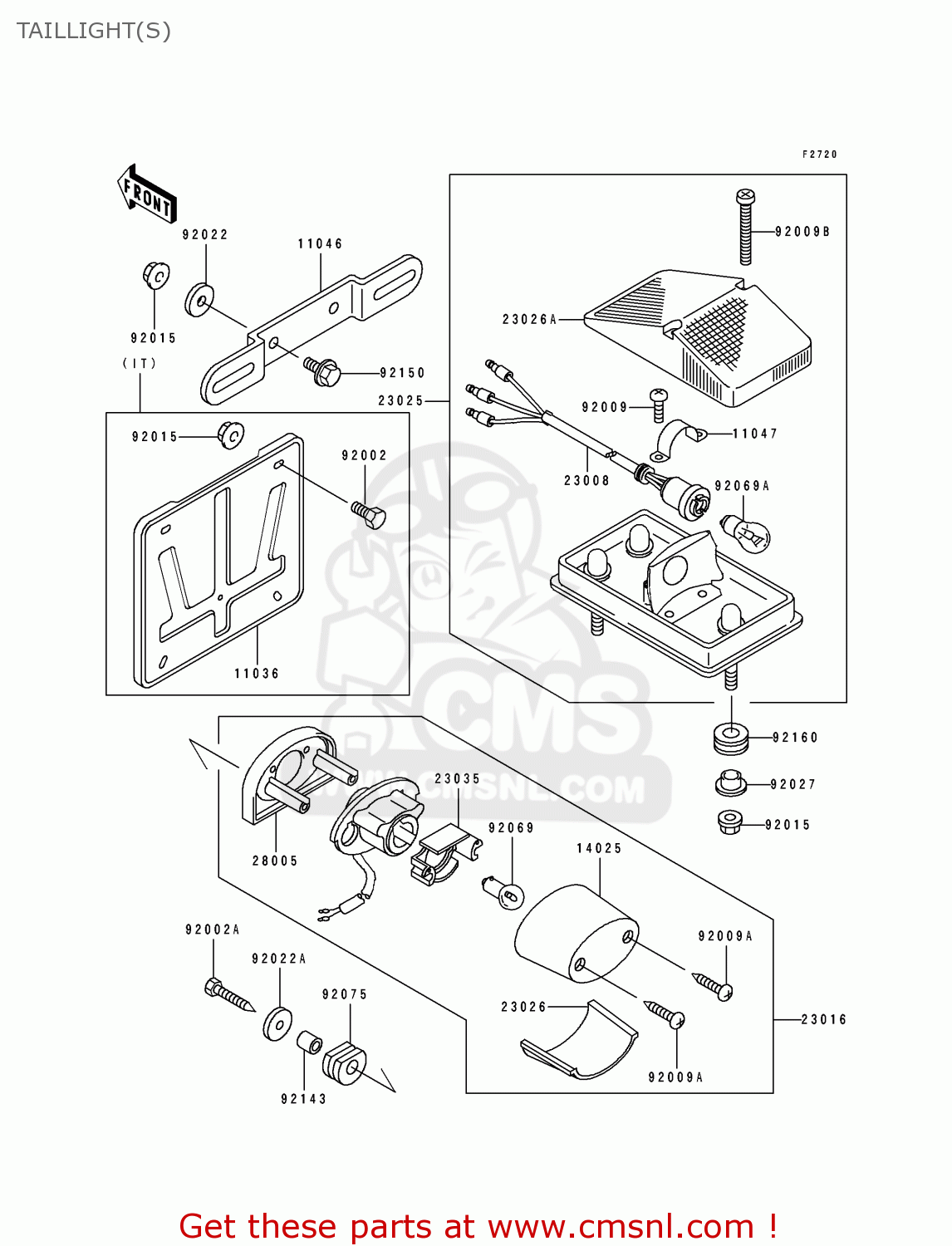

Taillight(s) diagram KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

TAILLIGHT(S) KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
TAILLIGHT(S) KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
TAILLIGHT(S) KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
11046
110461109
ref: 11046
BRACKET,LICENSE PLATE
110461109
€ 13.00
11047
110471238
ref: 11047
BRACKET,TAIL LAMP
110471238
€ 3.50
14025
140251725
ref: 14025
COVER,LICENSE LAMP
140251725
€ 12.50
23008
230081463
ref: 23008
SOCKET-ASSY,TAIL LAMP
230081463
€ 57.00
23016
230161116
ref: 23016
LAMP-ASSY,LICENSE PLA
230161116
€ 50.00
23025
230251218
ref: 23025
LAMP-TAIL
230251218
€ 125.00
23026
230261064
ref: 23026
LENS,LICENSE LAMP
230261064
€ 24.00
23026A
230261131
ref: 23026A
LENS,TAIL LAMP
230261131
€ 23.00
23035
230351066
ref: 23035
REFLECTOR-LAMP,LICENS
230351066
€ 13.00
28005
280051051
ref: 28005
BODY-LAMP,LICENSE
280051051
€ 19.50
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021831
ref: 92002A
BOLT
920021831
€ 0.50
92009
920091021
ref: 92009
SCREW,TAPPING,4X10
920091021
€ 2.50
92009A
920091378
ref: 92009A
SCREW,TAPPING,4X20
920091378
€ 2.50
92009B
920091647
ref: 92009B
SCREW,TAPPING,4X30
920091647
€ 2.50
92015
920151367
ref: 92015
IT
NUT,FLANGED,6MM
920151367
€ 0.50
92015
920151367
ref: 92015
AREUFGFRGRNLNRSPSTUK
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92022A
920221581
ref: 92022A
WASHER,5.5X20X1.2
920221581
€ 1.50
92027
920271920
ref: 92027
COLLAR
920271920
€ 4.50
92069
920691055
ref: 92069
BULB,12V 5W
920691055
€ 4.00
92069A
920691084
ref: 92069A
BULB,12V 21/5W
920691084
€ 6.00
92075
920751870
ref: 92075
DAMPER
920751870
€ 3.00
92143
921431047
ref: 92143
COLLAR,5.8X9X10.5
921431047
€ 3.50
92150
921501909
ref: 92150
BOLT
921501909
€ 3.00
92160
921601167
ref: 92160
DAMPER,10X20X12
921601167
€ 3.00
