MUFFLER(S)

KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

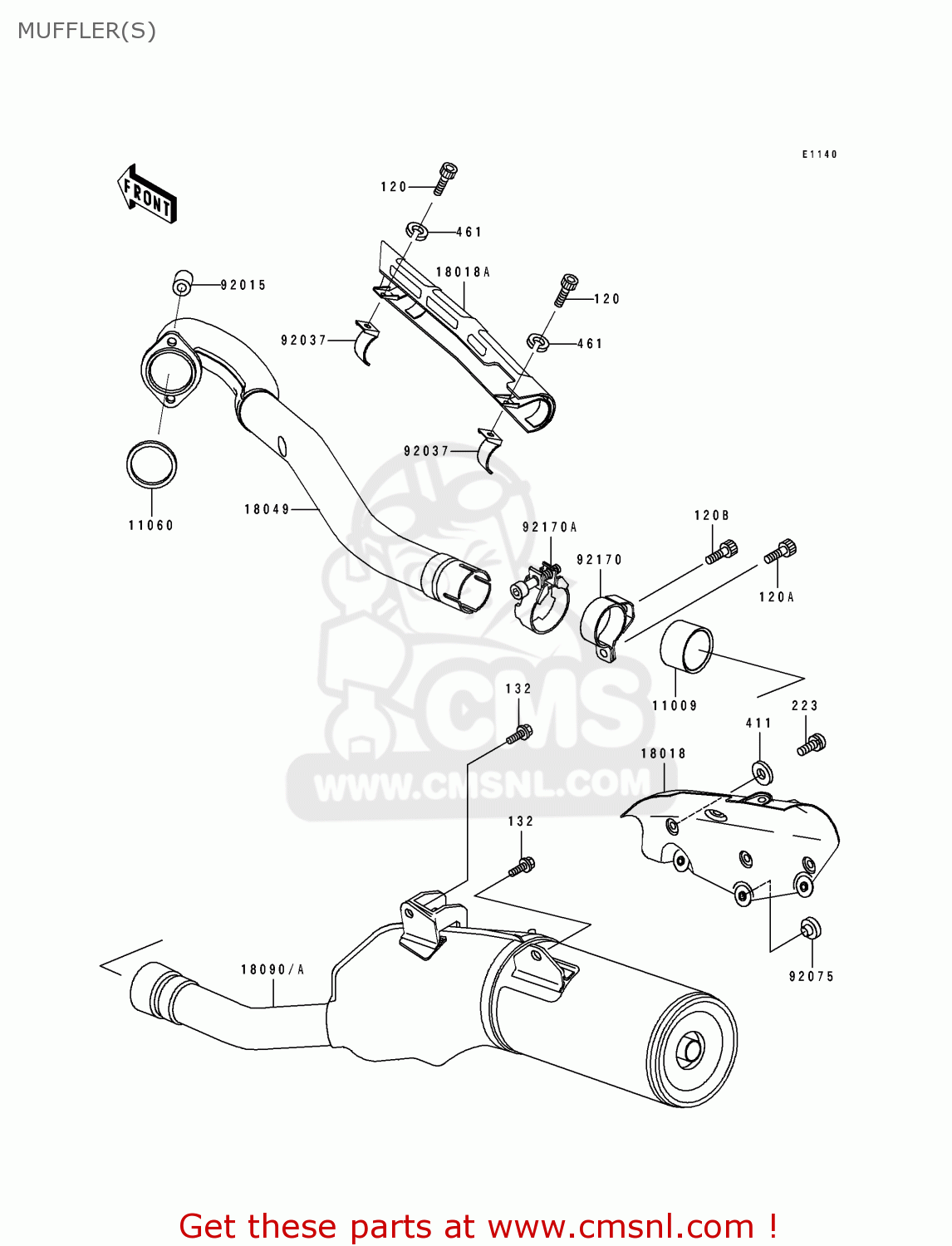

Muffler(s) diagram KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST

MUFFLER(S) KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
MUFFLER(S) KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
MUFFLER(S) KLX650C2 1994 EUROPE UK FR NL AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
120
120Z0620
ref: 120
BOLT-SOCKET,6X20
120Z0620
€ 3.00
120A
120Z0812
ref: 120A
BOLT-SOCKET,8X12
120Z0812
€ 2.00
120B
120Z0814
ref: 120B
BOLT-SOCKET,8X14
120Z0814
€ 2.50
132
132Y0816
ref: 132
BOLT-FLANGED-SMALL
132Y0816
€ 2.50
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
223C0610
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
461
461S0600
ref: 461
WASHER-SPRING,6MM
461S0600
€ 0.50
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110601119
€ 9.00
18018
180181106
ref: 18018
PLATE-HEAT GUARD
180181106
€ 28.50
18018A
180181111
ref: 18018A
PLATE-HEAT GUARD
180181111
€ 46.50
18049
180491664
ref: 18049
PIPE-EXHAUST
€ 175.00
18090
180901305
ref: 18090
AREUFRGRITNLNRSPSTUK
BODY-COMP-MUFFLER
180901305
€ 440.50
18090A
180901395
ref: 18090A
FG
BODY-COMP-MUFFLER
€ 440.50
92015
920151923
ref: 92015
NUT
920151923
€ 7.50
92037
920371613
ref: 92037
CLAMP,EXHAUST PIPE CO
920371613
€ 9.50
92075
92075005
ref: 92075
DAMPER
92075005
€ 2.50
92170
921701416
ref: 92170
CLAMP
€ 22.00
92170A
921701462
ref: 92170A
CLAMP
921701462
€ 19.50
