TRANSMISSION

KLX400B2 2004 USA CALIFORNIA CANADA

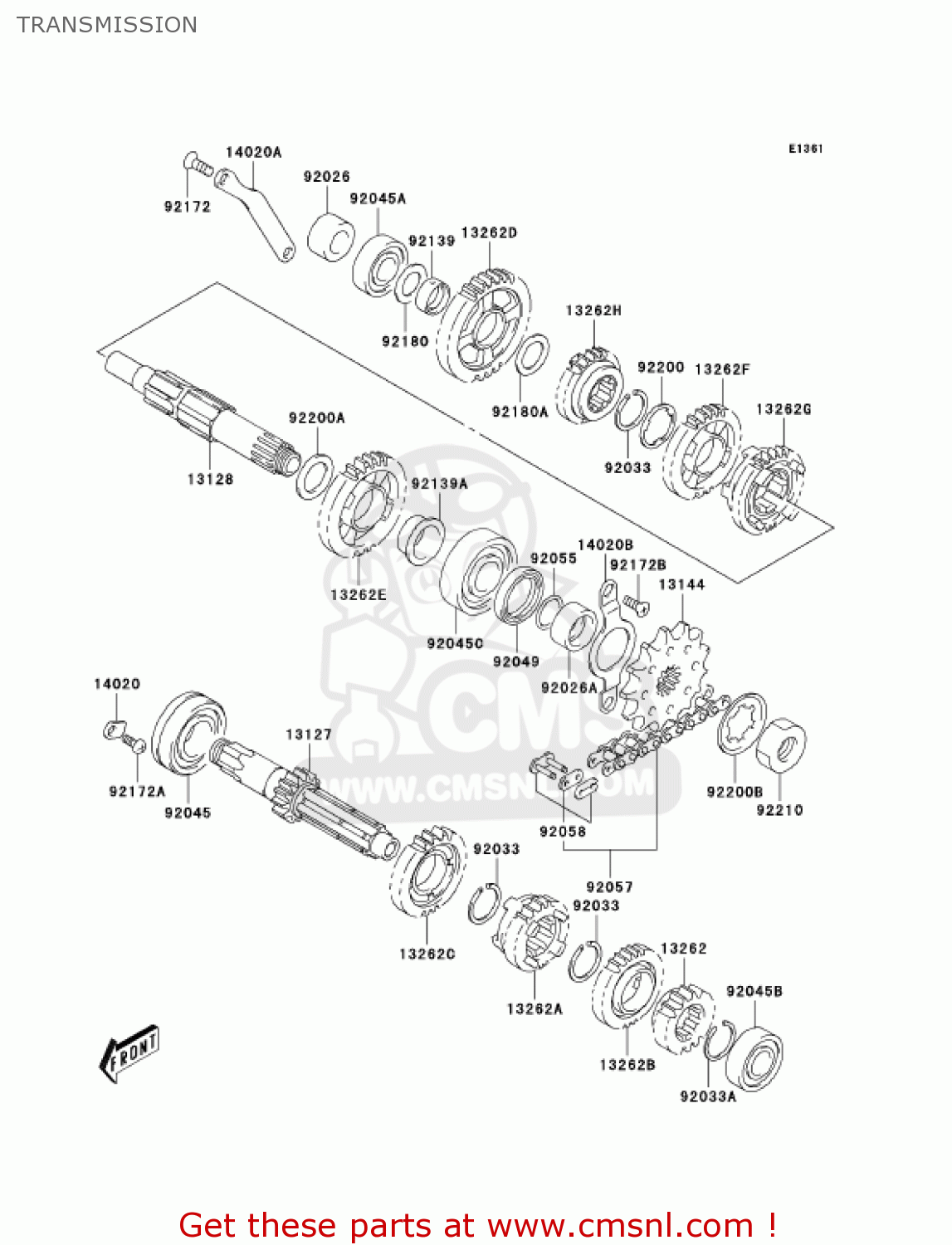

Transmission diagram KLX400B2 2004 USA CALIFORNIA CANADA

TRANSMISSION KLX400B2 2004 USA CALIFORNIA CANADA
TRANSMISSION KLX400B2 2004 USA CALIFORNIA CANADA
TRANSMISSION KLX400B2 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13127
13127S008
ref: 13127
SHAFT-TRANSMISSION IN
€ 103.00
13128
13128S010
ref: 13128
SHAFT-TRANSMISSION OU
€ 104.50
13144
13144S009
ref: 13144
SPROCKET-OUTPUT,14T
€ 20.00
13262
13262S024
ref: 13262
GEAR,INPUT 2ND,15T
€ 49.00
13262A
13262S025
ref: 13262A
GEAR,INPUT 3RD,16T
€ 58.50
13262B
13262S026
ref: 13262B
GEAR,INPUT 4TH,22T
€ 49.00
13262C
13262S027
ref: 13262C
GEAR,INPUT 5TH,22T
€ 49.00
13262D
13262S028
ref: 13262D
GEAR,OUTPUT LOW,32T
€ 51.00
13262E
13262S029
ref: 13262E
GEAR,OUTPUT 2ND,26T
€ 51.00
13262F
13262S030
ref: 13262F
GEAR,OUTPUT 3RD,22T
€ 54.00
13262G
13262S031
ref: 13262G
GEAR,OUTPUT 4TH,24T
€ 58.50
13262H
13262S032
ref: 13262H
GEAR,OUTPUT 5TH,19T
€ 51.00
14020
14020S008
ref: 14020
RETAINER
14020S008
€ 2.50
14020A
14020S011
ref: 14020A
RETAINER,KICK
€ 6.50
14020B
14020S012
ref: 14020B
RETAINER,DRIVE SHAFT
€ 4.50
92026
92026S124
ref: 92026
SPACER
€ 3.50
92026A
92026S125
ref: 92026A
SPACER
€ 15.00
92033
92033S049
ref: 92033
RING-SNAP
€ 2.00
92033A
92033S050
ref: 92033A
RING-SNAP
€ 2.50
92045
92045S018
ref: 92045
BEARING-BALL,25X52X15
€ 15.50
92045A
92045S035
ref: 92045A
BEARING-BALL,17X40X12
€ 17.00
92045B
92045S051
ref: 92045B
BEARING-BALL
€ 28.50
92045C
92045S057
ref: 92045C
BEARING-BALL
€ 31.00
92049
92049S019
ref: 92049
SEAL-OIL,30X40X6
92049S019
€ 11.00
92055
92055S034
ref: 92055
RING-O,D:2.5
€ 1.50
92057
92057S013
ref: 92057
CHAIN,DRIVE(112L)
€ 105.00
92058
92058S004
ref: 92058
JOINT-CHAIN
€ 14.00
92139
92139S032
ref: 92139
BUSHING
€ 11.50
92139A
92139S033
ref: 92139A
BUSHING
€ 18.50
92172
92172S012
ref: 92172
SCREW
€ 1.50
92172A
92172S170
ref: 92172A
SCREW
€ 3.00
92172B
92172S171
ref: 92172B
SCREW,RETAINER
€ 2.00
92180
92180S014
ref: 92180
SHIM,2ND GEAR
92180S014
€ 3.00
92180A
92180S015
ref: 92180A
SHIM,1ST GEAR
92180S015
€ 3.00
92200
92200S145
ref: 92200
WASHER,4TH GEAR
€ 4.00
92200A
92200S187
ref: 92200A
WASHER
€ 3.00
92200B
92200S188
ref: 92200B
WASHER
€ 1.00
92210
92210S126
ref: 92210
NUT
€ 3.00
