STARTER MOTOR

KLX400B2 2004 USA CALIFORNIA CANADA

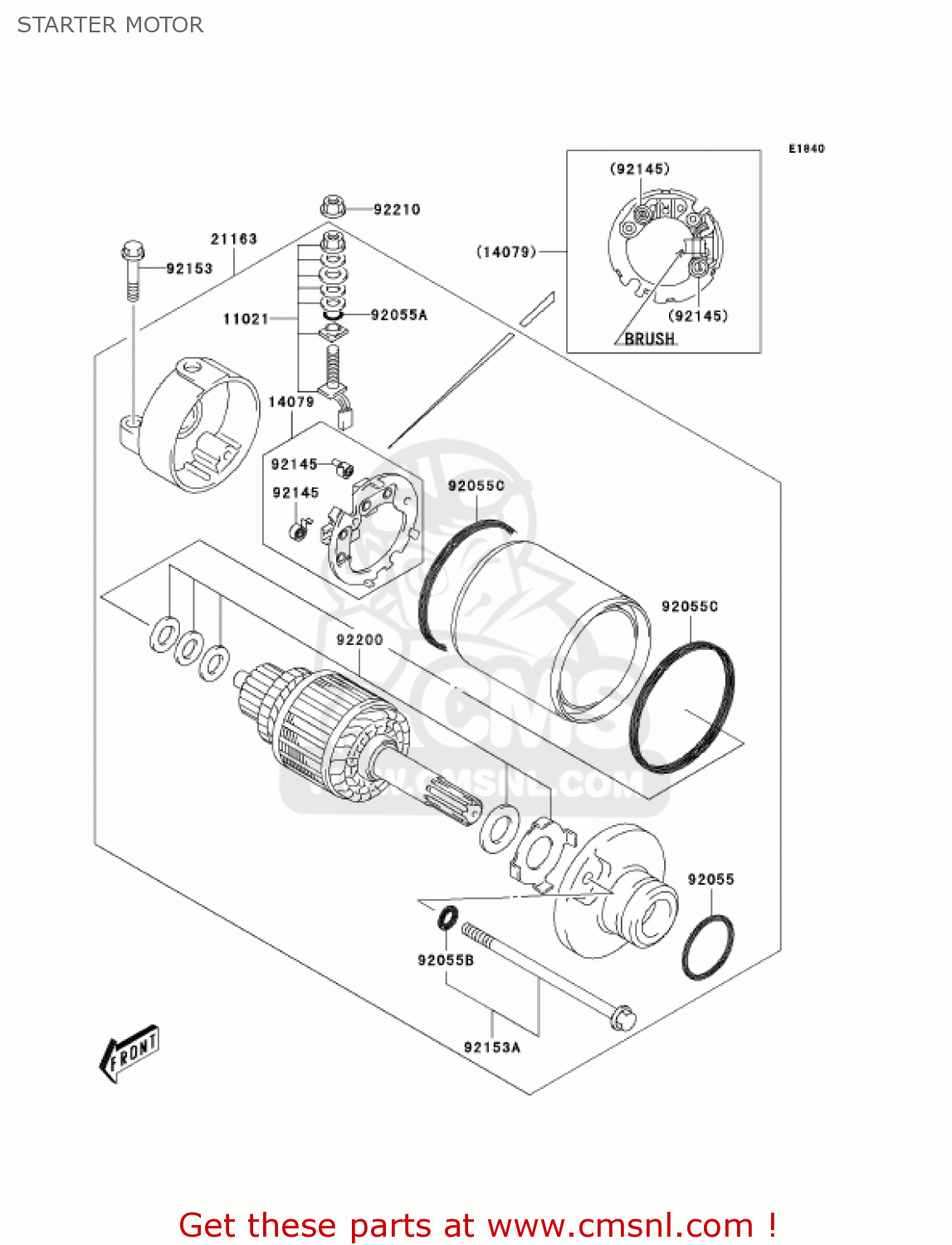

Starter motor diagram KLX400B2 2004 USA CALIFORNIA CANADA

STARTER MOTOR KLX400B2 2004 USA CALIFORNIA CANADA
STARTER MOTOR KLX400B2 2004 USA CALIFORNIA CANADA
STARTER MOTOR KLX400B2 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11021
11021S002
ref: 11021
BRUSH,TERMINAL SET
€ 55.50
14079
14079S002
ref: 14079
HOLDER-ASSY
€ 53.50
21163
21163S004
ref: 21163
STARTER-ELECTRIC
€ 390.50
92055
92055S008
ref: 92055
RING-O,D:3,ID:24.5
92055S008
€ 3.00
92055
92055S067
ref: 92055
RING-O
€ 3.50
92055
92055S068
ref: 92055
RING-O
€ 8.00
92055
92055S069
ref: 92055
RING-O
€ 9.50
92145
92145S103
ref: 92145
SPRING,BRUSH
€ 5.00
92153
92153S003
ref: 92153
BOLT
€ 1.50
92153
92153S293
ref: 92153
BOLT
€ 18.00
92200
92200S154
ref: 92200
WASHER
€ 11.00
92210
92210S099
ref: 92210
NUT,STARTER MOTOR
€ 1.50
