REAR HUB
KLX400B2 2004 USA CALIFORNIA CANADA

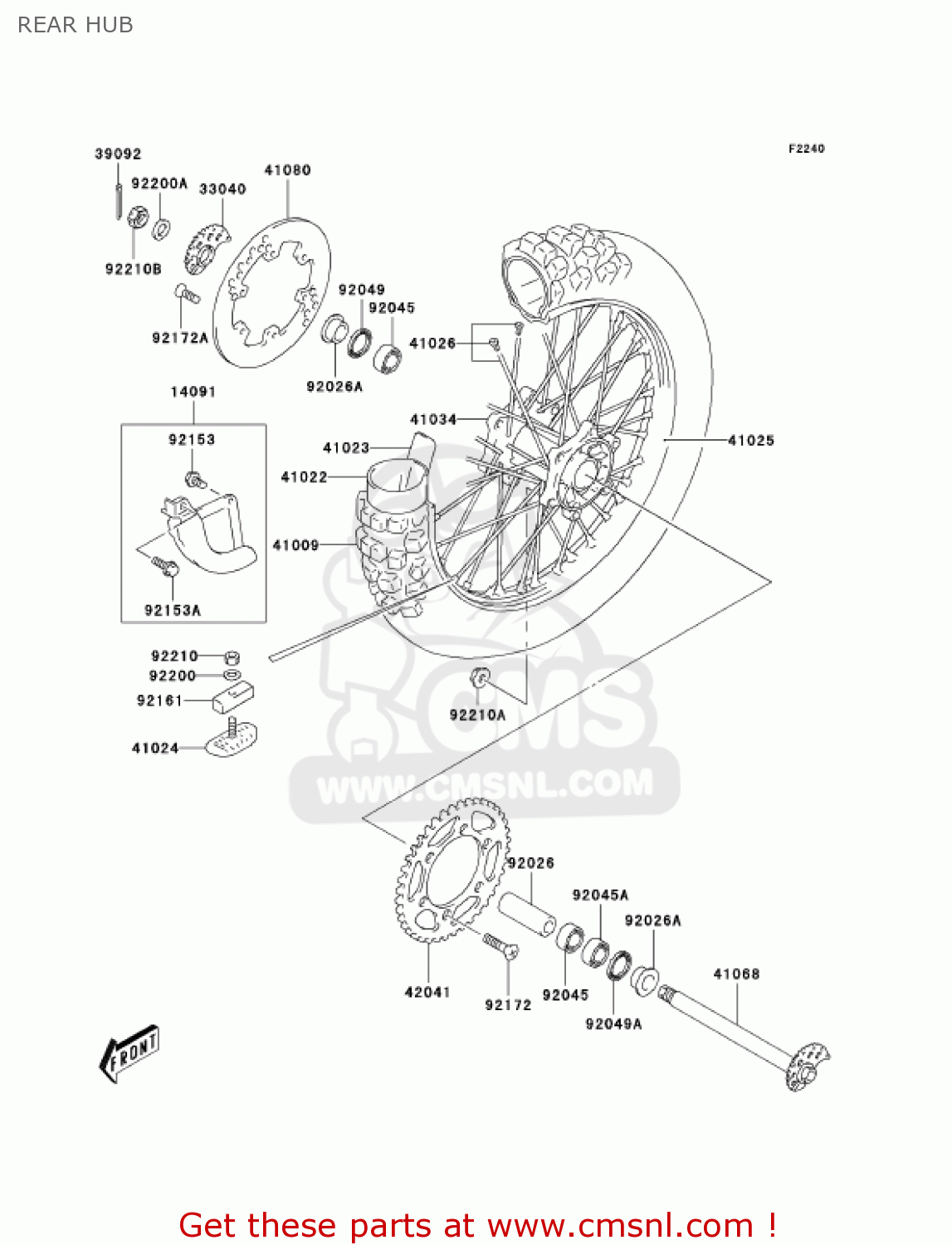

Rear hub diagram KLX400B2 2004 USA CALIFORNIA CANADA
REAR HUB KLX400B2 2004 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
14091
14091S100
ref: 14091
COVER,DISC
€ 17.50
33040
33040S004
ref: 33040
ADJUSTER-CHAIN
€ 13.00
39092
39092S008
ref: 39092
PIN-HAIR,REAR AXLE
€ 1.00
41009
41009S018
ref: 41009
TIRE,120/90-18 65P
€ 129.50
41022
41022S009
ref: 41022
TUBE-TIRE
€ 34.50
41023
41023S009
ref: 41023
BAND-RIM
€ 4.00
41024
41024S003
ref: 41024
STOPPER-RIM
€ 26.00
41025
41025S014
ref: 41025
RIM,2.15X18
€ 188.50
41026
41026S009
ref: 41026
SPOKE-ASSY
€ 74.50
41034
41034S008
ref: 41034
DRUM-ASSY
€ 192.50
41068
41068S013
ref: 41068
AXLE,RR
€ 62.00
41080
41080S008
ref: 41080
DISC,RR
€ 141.00
42041
42041S009
ref: 42041
SPROCKET-HUB,47T
€ 78.00
92026
92026S133
ref: 92026
SPACER
€ 16.50
92026A
92026S134
ref: 92026A
SPACER
€ 17.00
92045
92045S059
ref: 92045
BEARING-BALL
€ 16.00
92045A
92045S060
ref: 92045A
BEARING-BALL
€ 24.50
92049
92049S009
ref: 92049
SEAL-OIL,29X42X6
€ 6.50
92049A
92049S060
ref: 92049A
SEAL-OIL,29X47X5
€ 6.50
92153
92153S011
ref: 92153
BOLT
€ 1.50
92153A
92153S013
ref: 92153A
BOLT
€ 1.50
92161
92161S144
ref: 92161
DAMPER
€ 4.00
92172
92172S111
ref: 92172
SCREW
€ 1.50
92172A
92172S210
ref: 92172A
SCREW,6X17.5
€ 2.00
92200
92200S028
ref: 92200
WASHER
€ 1.50
92200A
92200S201
ref: 92200A
WASHER
€ 3.00
92210
92210S051
ref: 92210
NUT
€ 1.00
92210A
92210S094
ref: 92210A
NUT
€ 2.50
92210B
92210S134
ref: 92210B
NUT
€ 2.50
