GEAR CHANGE MECHANISM

KLX400B2 2004 USA CALIFORNIA CANADA

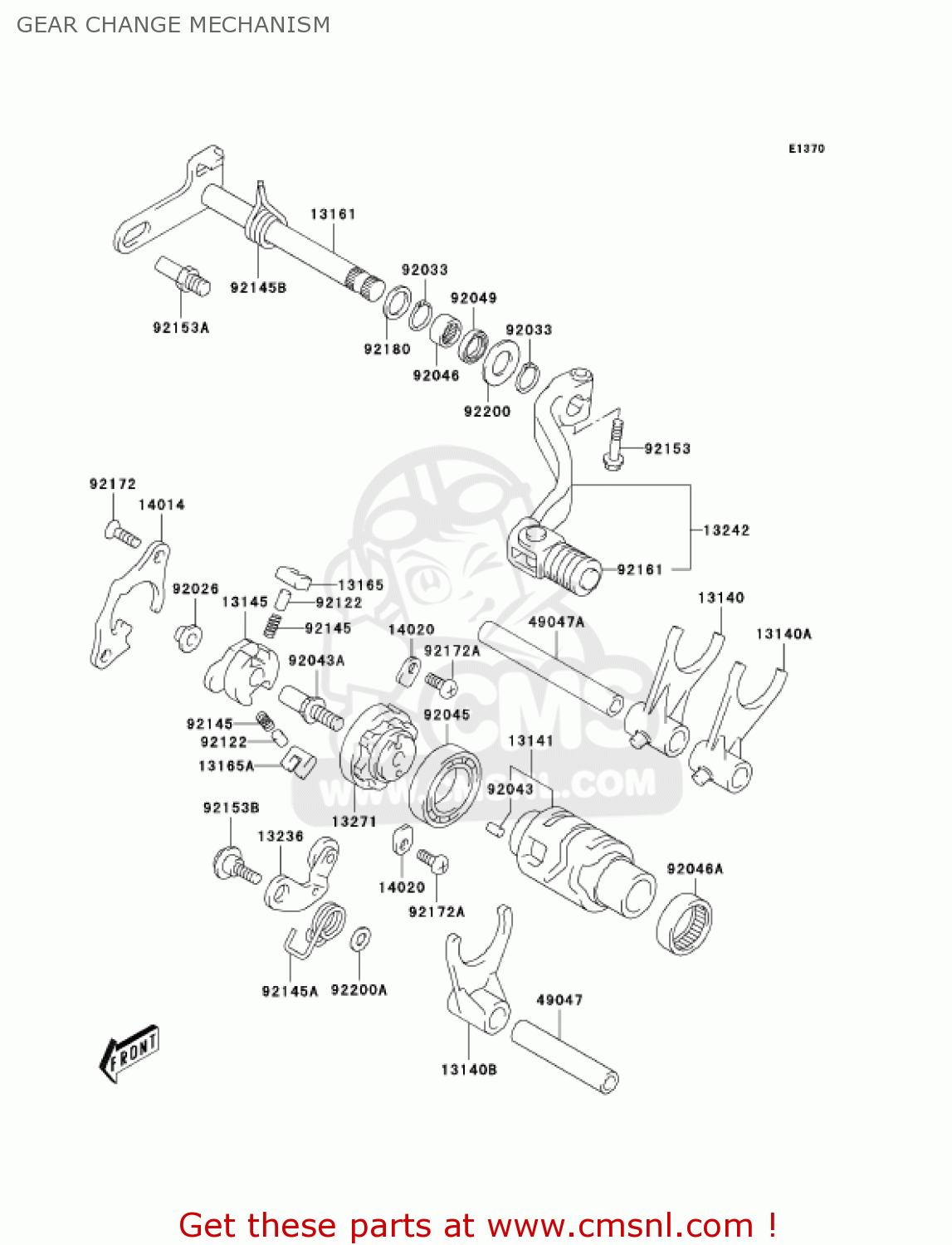

Gear change mechanism diagram KLX400B2 2004 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM KLX400B2 2004 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM KLX400B2 2004 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM KLX400B2 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13140
13140S012
ref: 13140
FORK-SHIFT
€ 37.50
13140
13140S013
ref: 13140
FORK-SHIFT
€ 37.50
13140
13140S014
ref: 13140
FORK-SHIFT
€ 37.50
13141
13141S008
ref: 13141
DRUM-CHANGE
€ 76.50
13145
13145S004
ref: 13145
CAM-CHANGE DRUM
13145S004
€ 40.00
13161
13161S006
ref: 13161
LEVER-COMP-CHANGE SHA
€ 88.00
13165
13165S003
ref: 13165
PAWL
€ 9.50
13165
13165S004
ref: 13165
PAWL
€ 9.50
13236
13236S006
ref: 13236
LEVER-COMP
€ 9.50
13242
13242S005
ref: 13242
LEVER-ASSY-CHANGE
13242S005
€ 39.00
13271
13271S046
ref: 13271
PLATE
13271S046
€ 31.00
14014
14014S004
ref: 14014
PLATE-POSITION
€ 10.00
14020
14020S008
ref: 14020
RETAINER
14020S008
€ 2.50
49047
49047S007
ref: 49047
ROD-SHIFT
€ 9.00
49047
49047S008
ref: 49047
ROD-SHIFT
€ 11.50
92026
92026S087
ref: 92026
SPACER,GEAR SHIFT CAM
92026S087
€ 4.00
92033
92033S037
ref: 92033
RING-SNAP
92033S037
€ 1.50
92043
92043S035
ref: 92043
PIN,CAM STOPPER PLATE
€ 1.50
92043
92043S041
ref: 92043
PIN,SHIFT CAM
€ 9.00
92045
92045S047
ref: 92045
BEARING-BALL,GEAR SHI
€ 25.00
92046
92046S008
ref: 92046
BEARING-NEEDLE,14X20X
92046S008
€ 13.00
92046
92046S020
ref: 92046
BEARING-NEEDLE,GEAR S
92046S020
€ 21.00
92049
92049S050
ref: 92049
SEAL-OIL,GEAR SHIFT
92049S050
€ 10.50
92122
92122S005
ref: 92122
ROLLER,5X8
€ 2.50
92145
92145S037
ref: 92145
SPRING
€ 2.00
92145
92145S128
ref: 92145
SPRING
€ 2.50
92145
92145S137
ref: 92145
SPRING
€ 4.50
92153
92153S003
ref: 92153
BOLT
€ 1.50
92153
92153S292
ref: 92153
BOLT
€ 3.00
92153
92153S328
ref: 92153
BOLT,CAM STOPPER
€ 4.00
92161
92161S057
ref: 92161
DAMPER,GEAR SHIFT PED
€ 3.50
92172
92172S112
ref: 92172
SCREW
€ 1.50
92172
92172S170
ref: 92172
SCREW
€ 3.00
92180
92180S045
ref: 92180
SHIM,GEAR SHIFT
92180S045
€ 3.00
92200
92200S086
ref: 92200
WASHER,ONE WAY CLUTCH
92200S086
€ 3.00
92200
92200S127
ref: 92200
WASHER
92200S127
€ 2.00
