CRANKSHAFT/PISTON(S)
KLX400B2 2004 USA CALIFORNIA CANADA

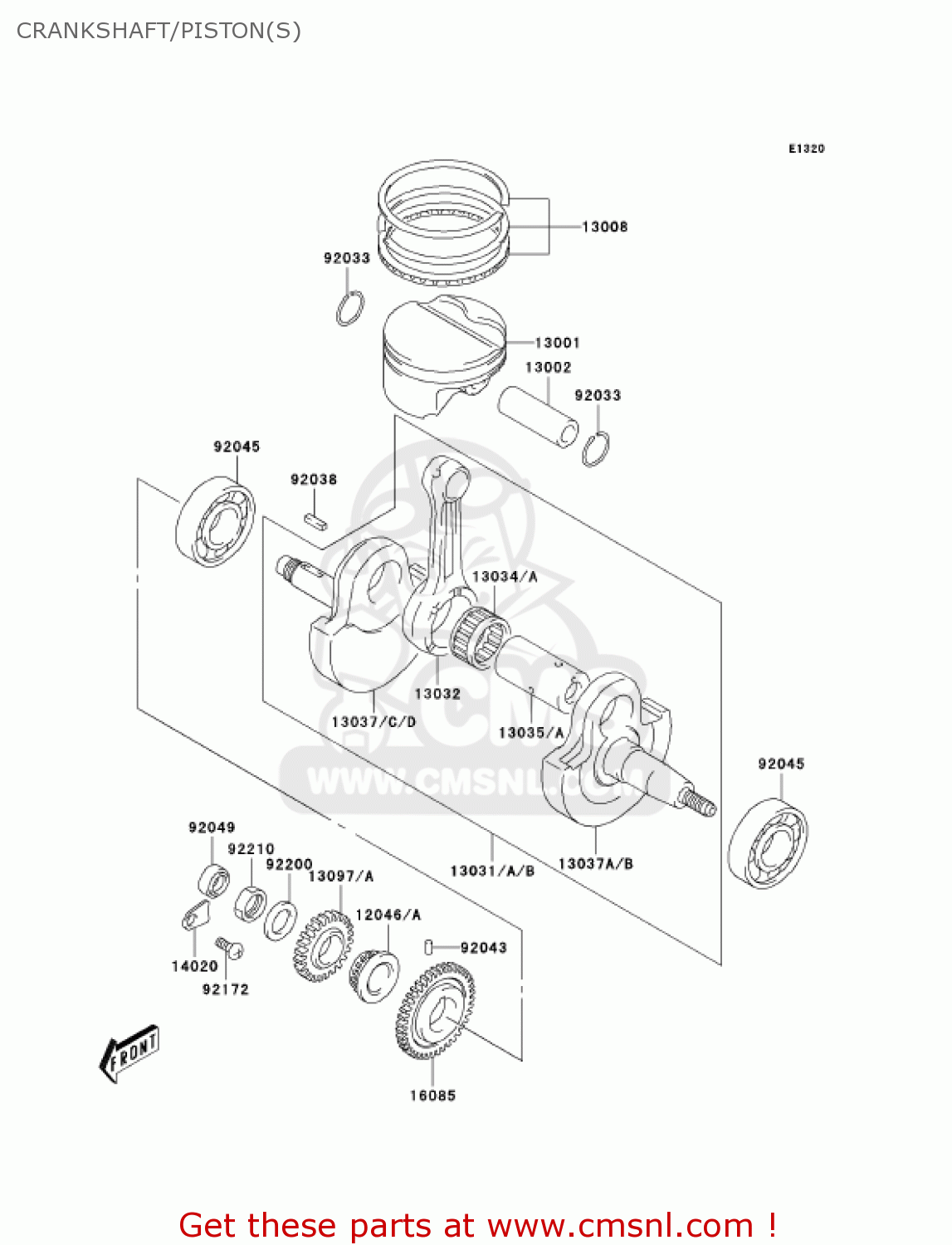

Crankshaft/piston(s) diagram KLX400B2 2004 USA CALIFORNIA CANADA
CRANKSHAFT/PISTON(S) KLX400B2 2004 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
12046A
12046S006
ref: 12046A
SPROCKET,CAM CHAIN
€ 43.00
13001
13001S006
ref: 13001
PISTON-ENGINE
€ 154.50
13002
13002S006
ref: 13002
PIN-PISTON
€ 17.00
13008
13008S008
ref: 13008
RING-SET-PISTON
€ 70.00
13031
13031S006
ref: 13031
[CA]
CRANKSHAFT-COMP
€ 621.50
13031B
13031S010
ref: 13031B
[CN,US
CRANKSHAFT-COMP
€ 354.50
13032
13032S007
ref: 13032
ROD-CONNECTING
€ 167.00
13034
13034S006
ref: 13034
[CA]
BEARING-BIG END
€ 57.00
13034A
13034S007
ref: 13034A
[CN,US
BEARING-BIG END
€ 37.50
13035
13035S006
ref: 13035
[CA]
PIN-CRANK
€ 49.50
13035A
13035S008
ref: 13035A
[CN,US
PIN-CRANK
€ 49.50
13037
13037S011
ref: 13037
[CA]
CRANKSHAFT,RH
€ 279.00
13037A
13037S012
ref: 13037A
CRANKSHAFT,LH
€ 279.00
13037D
13037S017
ref: 13037D
[CN,US
CRANKSHAFT
€ 157.00
13097A
13097S007
ref: 13097A
GEAR-PRIMARY SPUR
€ 61.00
14020
14020S009
ref: 14020
RETAINER
€ 3.50
16085
16085S004
ref: 16085
GEAR,CRANK BALANCER
€ 93.50
92033
92033S040
ref: 92033
RING-SNAP,PISTON PIN
€ 3.00
92038
92038S006
ref: 92038
KEY,PRIMARY DRIVE GEA
€ 4.00
92043
92043S008
ref: 92043
PIN,5X8
€ 1.50
92045
92045S054
ref: 92045
BEARING-BALL,CRANKSHA
€ 70.50
92049
92049S048
ref: 92049
SEAL-OIL,CRANKSHAFT,R
€ 12.50
92172
92172S166
ref: 92172
SCREW
€ 1.50
92200
92200S140
ref: 92200
WASHER
€ 3.00
92210
92210S102
ref: 92210
NUT,PRIMARY DRIVE GEA
€ 9.00
