CARBURETOR (CA)

KLX400B2 2004 USA CALIFORNIA CANADA

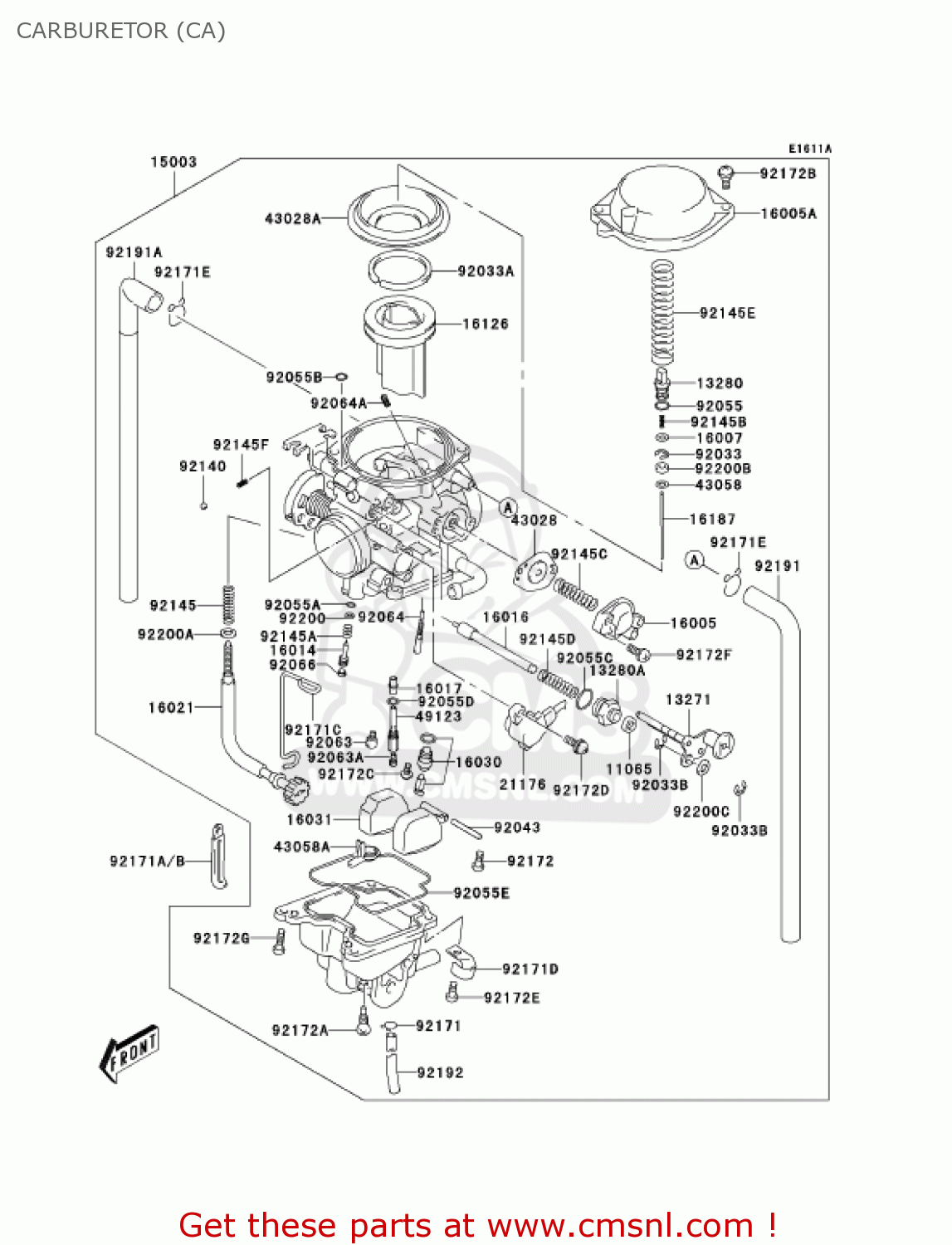

Carburetor (ca) diagram KLX400B2 2004 USA CALIFORNIA CANADA

CARBURETOR (CA) KLX400B2 2004 USA CALIFORNIA CANADA
CARBURETOR (CA) KLX400B2 2004 USA CALIFORNIA CANADA
CARBURETOR (CA) KLX400B2 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11065
11065S031
ref: 11065
[CA]
CAP
€ 3.00
13271
13271S056
ref: 13271
[CA]
PLATE
€ 31.50
13280
13280S002
ref: 13280
[CA]
HOLDER
€ 4.00
13280A
13280S021
ref: 13280A
[CA]
HOLDER
€ 6.00
15003
15003S014
ref: 15003
[CA]
CARBURETOR-ASSY
€ 355.00
16005
16005S004
ref: 16005
[CA]
TOP-CHAMBER
€ 17.00
16005A
16005S006
ref: 16005A
[CA]
TOP-CHAMBER,DIAPHRAGM
€ 45.00
16007
16007S005
ref: 16007
[CA]
SEAT-SPRING
€ 2.50
16014
16014S009
ref: 16014
[CA]
SCREW-PILOT AIR
€ 6.50
16016
16016S008
ref: 16016
[CA]
PLUNGER
€ 15.50
16017
16017S008
ref: 16017
[CA]
JET-NEEDLE
€ 23.50
16021
16021S006
ref: 16021
[CA]
SCREW-THROTTLE STOP
€ 28.50
16030
16030S008
ref: 16030
[CA]
VALVE-FLOAT
€ 61.50
16031
16031S006
ref: 16031
[CA]
FLOAT
€ 36.00
16126
16126S010
ref: 16126
[CA]
VALVE
16126S010
€ 67.50
16187
16187S011
ref: 16187
[CA]
NEEDLE-JET
€ 9.50
21176
21176S001
ref: 21176
[CA]
SENSOR
€ 106.50
43028
43028S008
ref: 43028
[CA]
DIAPHRAGM
€ 17.50
43028A
43028S011
ref: 43028A
[CA]
DIAPHRAGM
€ 18.50
43058
43058S001
ref: 43058
[CA]
RING
€ 6.00
43058A
43058S007
ref: 43058A
[CA]
RING
€ 6.50
49123
49123S006
ref: 49123
[CA]
HOLDER-MAIN JET
€ 17.50
92033
92033S008
ref: 92033
[CA]
RING-SNAP,MULTIPLE JE
€ 3.00
92033A
92033S041
ref: 92033A
[CA]
RING-SNAP
€ 3.00
92033B
92033S046
ref: 92033B
[CA]
RING-SNAP
€ 1.50
92043
92043S034
ref: 92043
[CA]
PIN
€ 3.00
92055
92055S003
ref: 92055
[CA]
RING-O,ID:4.8
92055S003
€ 3.50
92055A
92055S013
ref: 92055A
[CA]
RING-O
€ 4.00
92055B
92055S044
ref: 92055B
[CA]
RING-O
€ 3.50
92055C
92055S048
ref: 92055C
[CA]
RING-O
92055S048
€ 4.00
92055D
92055S049
ref: 92055D
[CA]
RING-O
€ 3.50
92055E
92055S058
ref: 92055E
[CA]
RING-O
92055S058
€ 9.50
92063
92063S011
ref: 92063
[CA]
JET-MAIN,62.5
€ 6.00
92063A
92063S016
ref: 92063A
[CA]
JET-MAIN
€ 8.50
92064
92064S008
ref: 92064
[CA]
JET-PILOT,#22.5
92064S008
€ 11.50
92064A
92064S012
ref: 92064A
[CA]
JET-PILOT
€ 8.50
92066
92066S027
ref: 92066
[CA]
PLUG
€ 3.00
92140
92140S005
ref: 92140
[CA]
BALL
€ 2.50
92145
92145S009
ref: 92145
[CA]
SPRING,THROTTLE SCREW
€ 3.00
92145A
92145S010
ref: 92145A
[CA]
SPRING,THROTTLE SCREW
92145S010
€ 3.50
92145B
92145S097
ref: 92145B
[CA]
SPRING
€ 2.50
92145C
92145S098
ref: 92145C
[CA]
SPRING
92145S098
€ 3.50
92145D
92145S113
ref: 92145D
[CA]
SPRING
€ 3.00
92145E
92145S125
ref: 92145E
[CA]
SPRING
€ 7.00
92145F
92145S127
ref: 92145F
[CA]
SPRING
€ 3.50
92171
92171S001
ref: 92171
[CA]
CLAMP
€ 2.00
92171A
92171S012
ref: 92171A
[CA]
CLAMP,L:80
€ 3.00
92171B
92171S081
ref: 92171B
[CA]
CLAMP,WIRING HARNESS
€ 2.00
92171C
92171S110
ref: 92171C
[CA]
CLAMP
€ 9.00
92171D
92171S111
ref: 92171D
[CA]
CLAMP
€ 3.00
92171E
92171S130
ref: 92171E
[CA]
CLAMP
€ 4.00
92172
92172S002
ref: 92172
[CA]
SCREW
92172S002
€ 1.50
92172A
92172S046
ref: 92172A
[CA]
SCREW,DRAIN
€ 5.00
92172B
92172S047
ref: 92172B
[CA]
SCREW
€ 3.00
92172C
92172S048
ref: 92172C
[CA]
SCREW
€ 4.00
92172D
92172S049
ref: 92172D
[CA]
SCREW
€ 3.00
92172E
92172S057
ref: 92172E
[CA]
SCREW
92172S057
€ 1.50
92172F
92172S139
ref: 92172F
[CA]
SCREW
€ 3.00
92172G
92172S145
ref: 92172G
[CA]
SCREW
€ 1.50
92191
92191S069
ref: 92191
[CA]
TUBE,AIR VENT
€ 20.00
92191A
92191S079
ref: 92191A
[CA]
TUBE
€ 23.50
92192
92192S020
ref: 92192
[CA]
TUBE
€ 18.50
92200
92200S019
ref: 92200
[CA]
WASHER
€ 3.00
92200A
92200S021
ref: 92200A
[CA]
WASHER
€ 2.00
92200B
92200S083
ref: 92200B
[CA]
WASHER
€ 3.00
92200C
92200S181
ref: 92200C
[CA]
WASHER
€ 1.00
