STARTER CLUTCH
KLX400B1 KLX400R 2003 USA CANADA

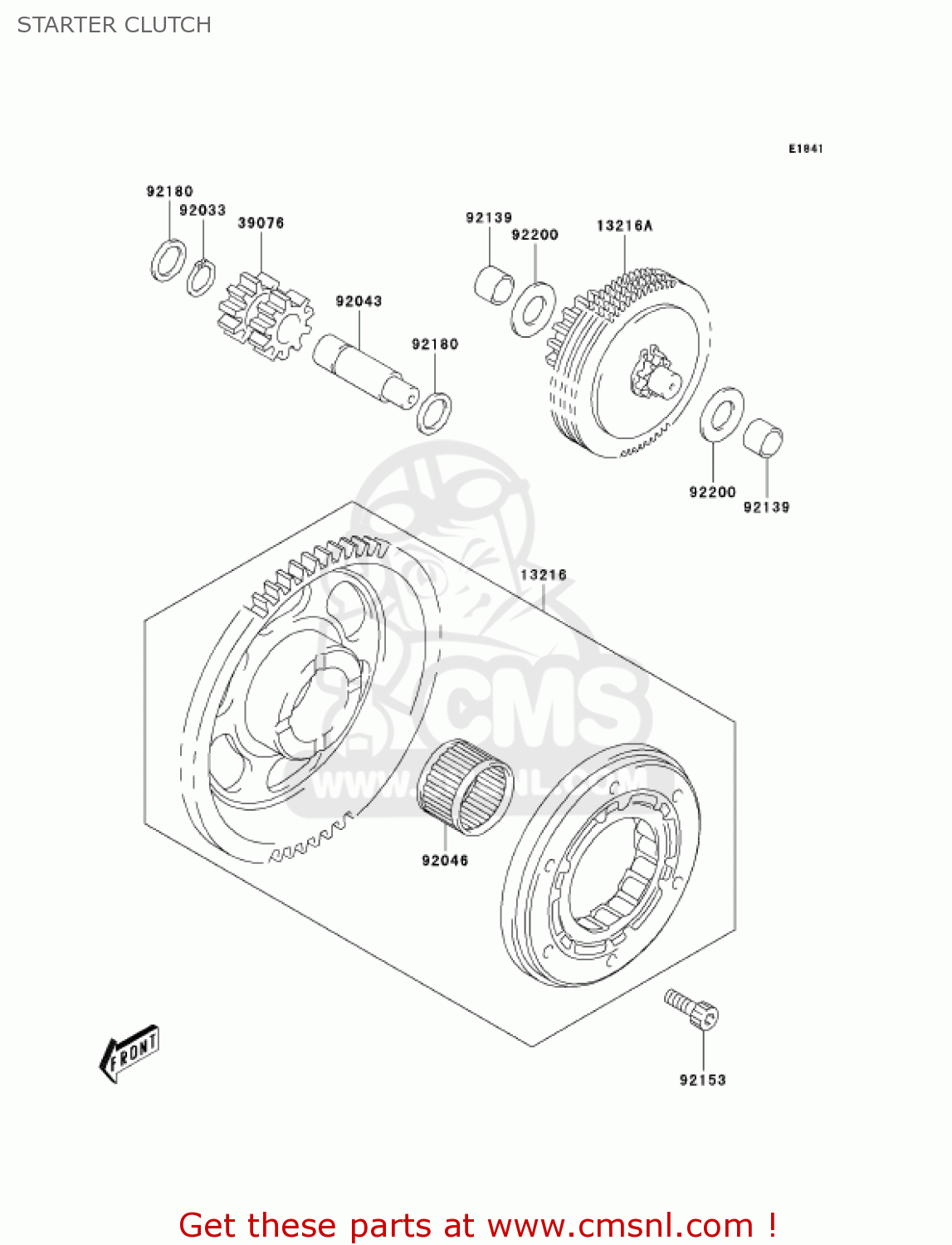

Starter clutch diagram KLX400B1 KLX400R 2003 USA CANADA
STARTER CLUTCH KLX400B1 KLX400R 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13216
13216S010
ref: 13216
GEAR-COMP,STARTER
€ 253.50
13216A
13216S011
ref: 13216A
GEAR-COMP,STARTER IDL
€ 234.00
39076
39076S005
ref: 39076
LIMITER,STARTER IDLE
€ 26.00
92033
92033S023
ref: 92033
RING-SNAP
€ 1.50
92043
92043S052
ref: 92043
PIN
€ 9.50
92046
92046S021
ref: 92046
BEARING-NEEDLE,STARTE
€ 25.00
92139
92139S024
ref: 92139
BUSHING
€ 19.00
92153
92153S024
ref: 92153
BOLT
€ 1.50
92180
92180S010
ref: 92180
SHIM,STARTER IDLE GEA
€ 2.50
92200
92200S129
ref: 92200
WASHER
€ 2.50
