RADIATOR (KLX400-B1)
KLX400B1 KLX400R 2003 USA CANADA

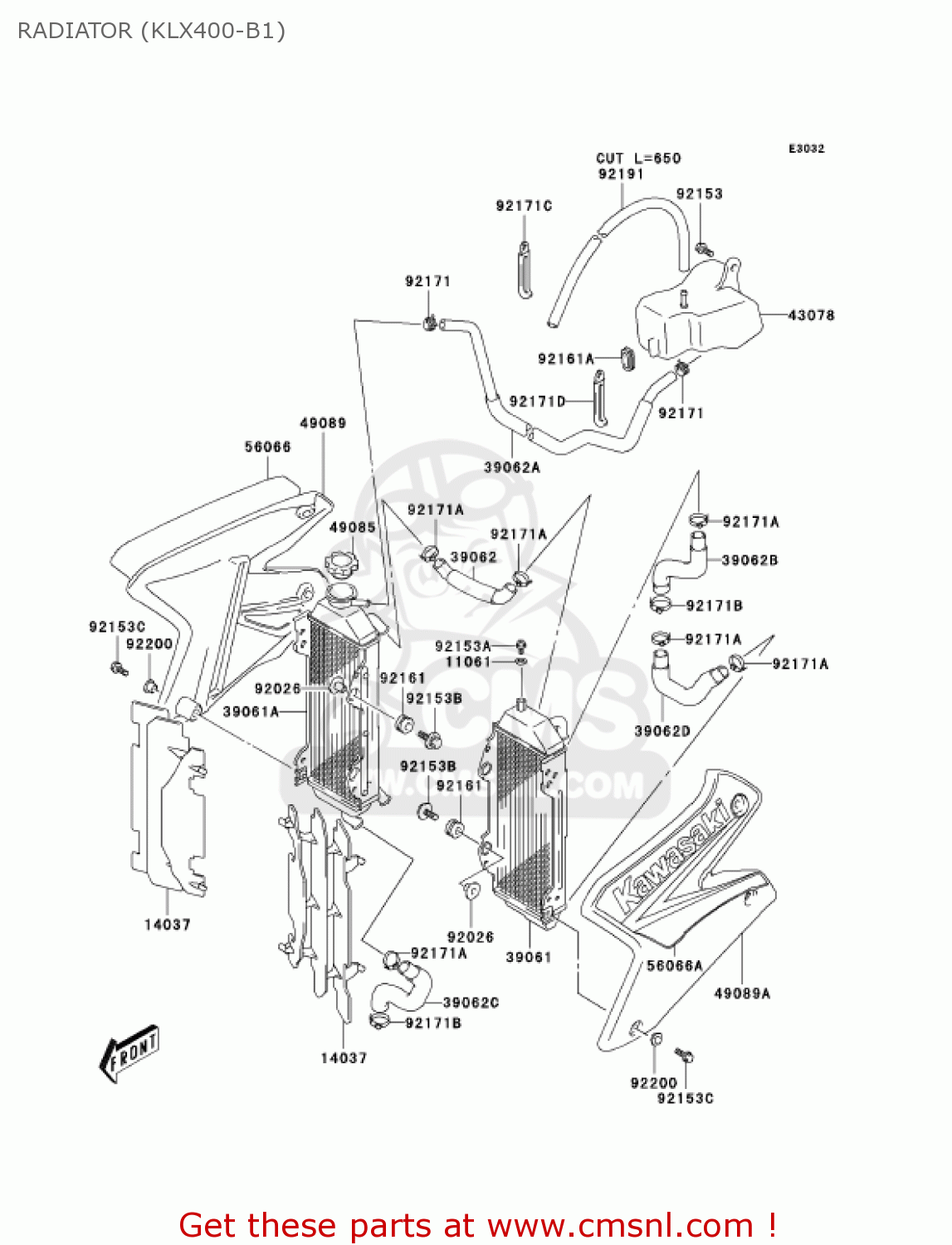

Radiator (klx400-b1) diagram KLX400B1 KLX400R 2003 USA CANADA
RADIATOR (KLX400-B1) KLX400B1 KLX400R 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
11061S002
ref: 11061
GASKET,6.4X11.5X0.8 (NAS)
€ 1.50
14037
14037S001
ref: 14037
SCREEN
€ 12.00
39061
39061S006
ref: 39061
RADIATOR-ASSY,LH
€ 270.50
39061A
39061S007
ref: 39061A
RADIATOR-ASSY,RH
€ 375.00
39062
39062S022
ref: 39062
HOSE-COOLING,JOINT
€ 13.50
39062A
39062S023
ref: 39062A
HOSE-COOLING,RESERVOI
€ 10.00
39062B
39062S024
ref: 39062B
HOSE-COOLING,RADIATOR
€ 16.50
39062C
39062S025
ref: 39062C
HOSE-COOLING,RADIATOR
€ 17.50
39062D
39062S026
ref: 39062D
HOSE-COOLING,RADIATOR
€ 13.00
43078
43078S006
ref: 43078
RESERVOIR
€ 27.50
49085
49085S004
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49089
49089S003535
ref: 49089
SHROUD-ENGINE,RH,L.GR
€ 37.00
49089A
49089S004535
ref: 49089A
SHROUD-ENGINE,LH,L.GR
€ 37.00
56066
56066S014553
ref: 56066
PATTERN,RH,WHT/GOL/BL
€ 59.00
56066A
56066S015553
ref: 56066A
PATTERN,LH,WHT/GOL/BL
€ 59.00
92026
92026S123
ref: 92026
SPACER
€ 3.50
92153
92153S011
ref: 92153
BOLT
€ 1.50
92153A
92153S055
ref: 92153A
BOLT,AIR VENT
€ 3.00
92153B
92153S105
ref: 92153B
BOLT,6X25
€ 2.00
92153C
92153S144
ref: 92153C
BOLT
€ 1.50
92161
92161S114
ref: 92161
DAMPER
€ 2.50
92161A
92161S115
ref: 92161A
DAMPER,RESERVOIR TANK
€ 2.50
92171
92171S002
ref: 92171
CLAMP
€ 2.00
92171A
92171S008
ref: 92171A
CLAMP
€ 5.00
92171B
92171S088
ref: 92171B
CLAMP,RADIATOR HOSE
€ 7.50
92171C
92171S116
ref: 92171C
CLAMP,RESERVOIR HOSE
€ 2.00
92171D
92171S132
ref: 92171D
CLAMP,OIL HOSE NO.2
€ 2.50
92191
92191S088500A
ref: 92191
TUBE,OVERFLOW,M.R.ORA
€ 16.00
92200
92200S078
ref: 92200
WASHER
€ 1.50
