GEAR CHANGE MECHANISM
KLX400B1 KLX400R 2003 USA CANADA

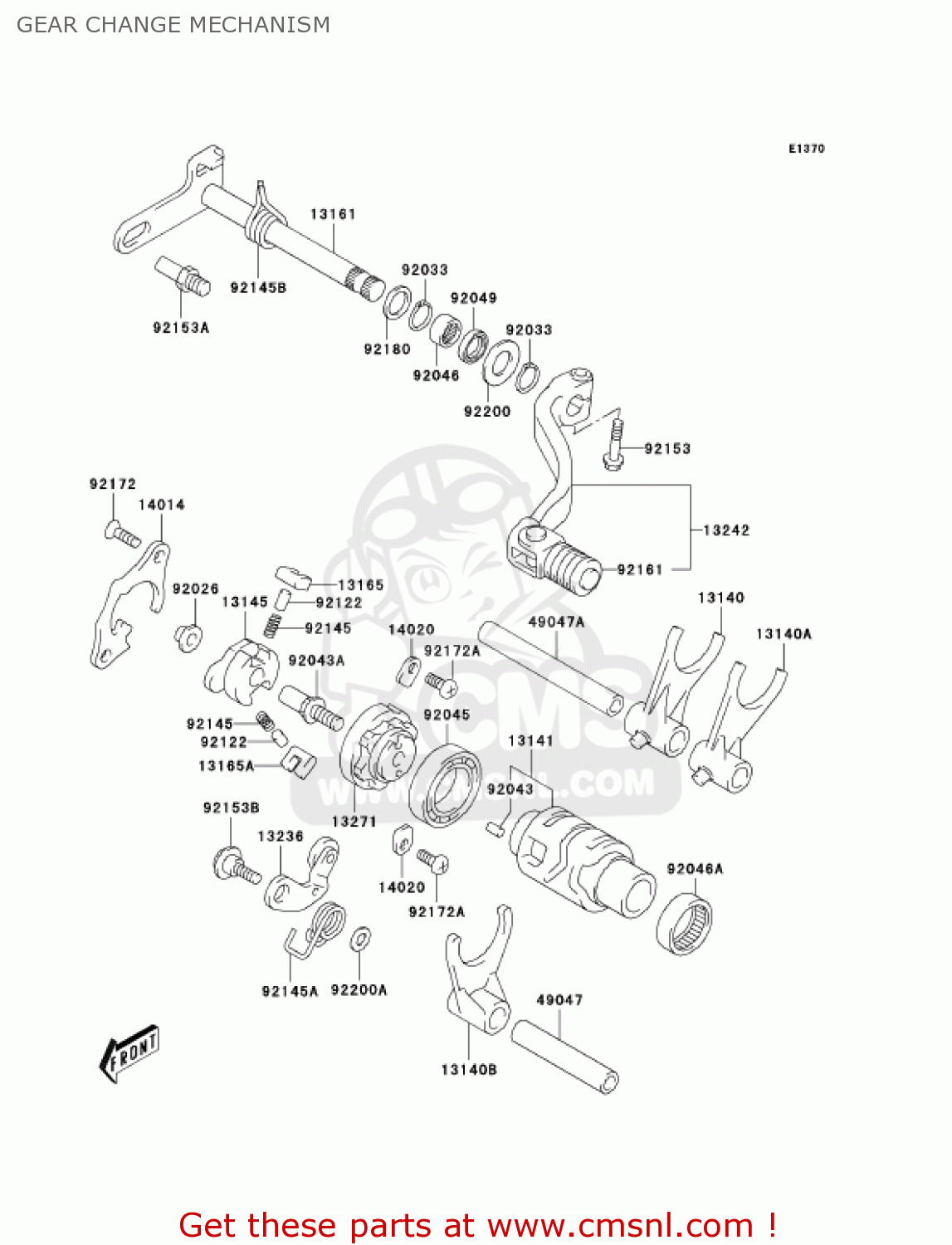

Gear change mechanism diagram KLX400B1 KLX400R 2003 USA CANADA
GEAR CHANGE MECHANISM KLX400B1 KLX400R 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13140
13140S012
ref: 13140
FORK-SHIFT
€ 37.50
13140
13140S013
ref: 13140
FORK-SHIFT
€ 37.50
13140
13140S014
ref: 13140
FORK-SHIFT
€ 37.50
13141
13141S008
ref: 13141
DRUM-CHANGE
€ 76.50
13145
13145S004
ref: 13145
CAM-CHANGE DRUM
€ 40.00
13161
13161S006
ref: 13161
LEVER-COMP-CHANGE SHA
€ 88.00
13165
13165S003
ref: 13165
PAWL
€ 9.50
13165
13165S004
ref: 13165
PAWL
€ 9.50
13236
13236S006
ref: 13236
LEVER-COMP
€ 9.50
13242
13242S005
ref: 13242
LEVER-ASSY-CHANGE
€ 39.00
13271
13271S046
ref: 13271
PLATE
€ 31.00
14014
14014S004
ref: 14014
PLATE-POSITION
€ 10.00
14020
14020S008
ref: 14020
RETAINER
€ 2.50
49047
49047S007
ref: 49047
ROD-SHIFT
€ 9.00
49047
49047S008
ref: 49047
ROD-SHIFT
€ 11.50
92026
92026S087
ref: 92026
SPACER,GEAR SHIFT CAM
€ 4.00
92033
92033S037
ref: 92033
RING-SNAP
€ 1.50
92043
92043S035
ref: 92043
PIN,CAM STOPPER PLATE
€ 1.50
92043
92043S041
ref: 92043
PIN,SHIFT CAM
€ 9.00
92045
92045S047
ref: 92045
BEARING-BALL,GEAR SHI
€ 25.00
92046
92046S008
ref: 92046
BEARING-NEEDLE,14X20X
€ 13.00
92046
92046S020
ref: 92046
BEARING-NEEDLE,GEAR S
€ 21.00
92049
92049S050
ref: 92049
SEAL-OIL,GEAR SHIFT
€ 10.50
92122
92122S005
ref: 92122
ROLLER,5X8
€ 2.50
92145
92145S037
ref: 92145
SPRING
€ 2.00
92145
92145S128
ref: 92145
SPRING
€ 2.50
92145
92145S137
ref: 92145
SPRING
€ 4.50
92153
92153S003
ref: 92153
BOLT
€ 1.50
92153
92153S292
ref: 92153
BOLT
€ 3.00
92153
92153S328
ref: 92153
BOLT,CAM STOPPER
€ 4.00
92161
92161S057
ref: 92161
DAMPER,GEAR SHIFT PED
€ 3.50
92172
92172S112
ref: 92172
SCREW
€ 1.50
92172
92172S170
ref: 92172
SCREW
€ 3.00
92180
92180S045
ref: 92180
SHIM,GEAR SHIFT
€ 3.00
92200
92200S086
ref: 92200
WASHER,ONE WAY CLUTCH
€ 3.00
92200
92200S127
ref: 92200
WASHER
€ 2.00
