BRAKE PEDAL

KLX400B1 KLX400R 2003 USA CANADA

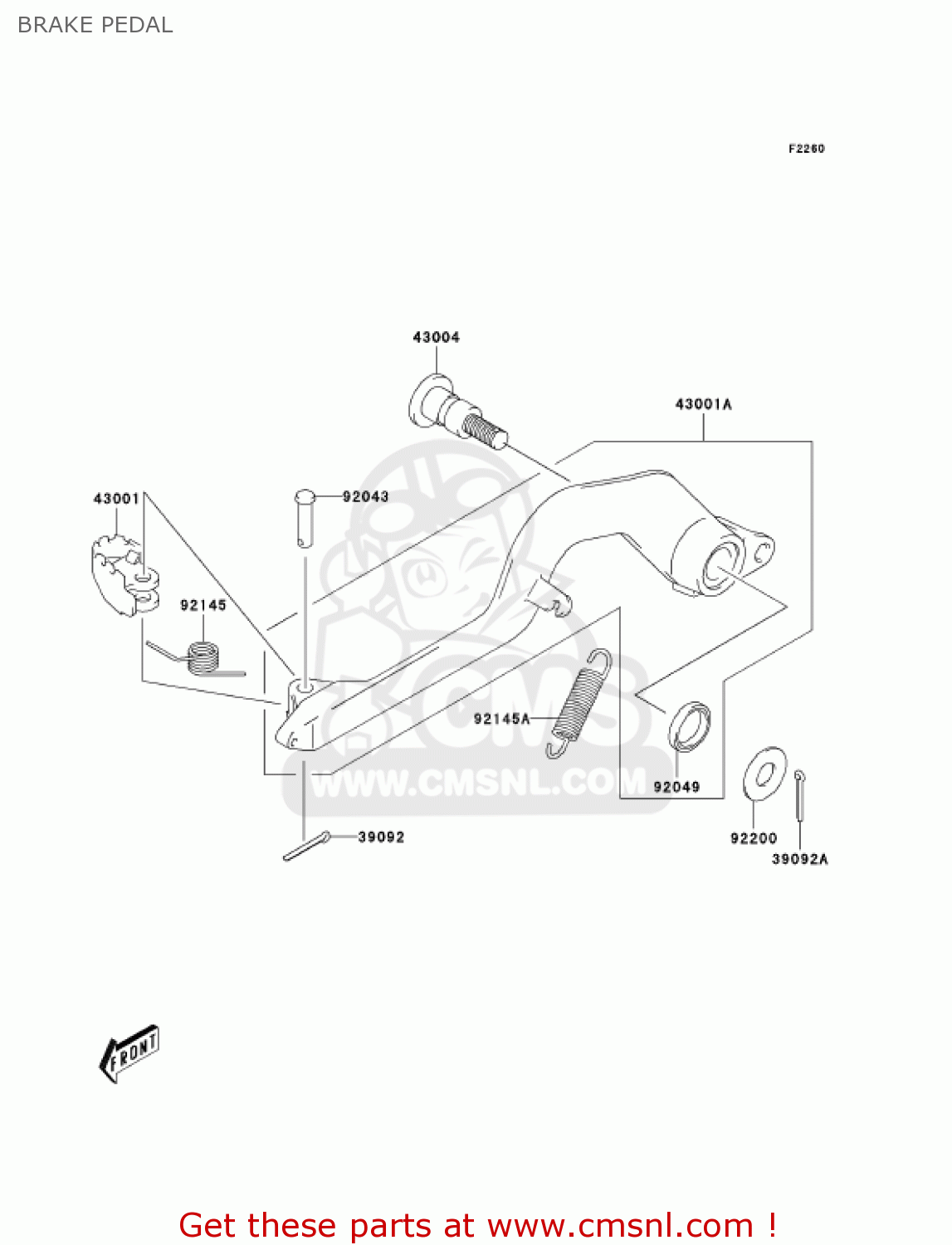

Brake pedal diagram KLX400B1 KLX400R 2003 USA CANADA

BRAKE PEDAL KLX400B1 KLX400R 2003 USA CANADA
BRAKE PEDAL KLX400B1 KLX400R 2003 USA CANADA
BRAKE PEDAL KLX400B1 KLX400R 2003 USA CANADA
prices are in EUR
ref
part #
description
quantity
39092
39092S004
ref: 39092
PIN-HAIR,FR FOOTREST
€ 1.50
39092A
39092S005
ref: 39092A
PIN-HAIR,BRAKE PEDAL
€ 1.50
43001
43001S007
ref: 43001
LEVER-BRAKE,PEDAL
€ 7.50
43001A
43001S008
ref: 43001A
LEVER-BRAKE,ARM
€ 91.00
43004
43004S001
ref: 43004
SHAFT-BRAKE
€ 14.00
92043
92043S049
ref: 92043
PIN
€ 1.50
92049
92049S057
ref: 92049
SEAL-OIL
€ 2.50
92145
92145S133
ref: 92145
SPRING
€ 2.00
92145A
92145S134
ref: 92145A
SPRING
€ 3.00
92200
92200S067
ref: 92200
WASHER
€ 1.50
